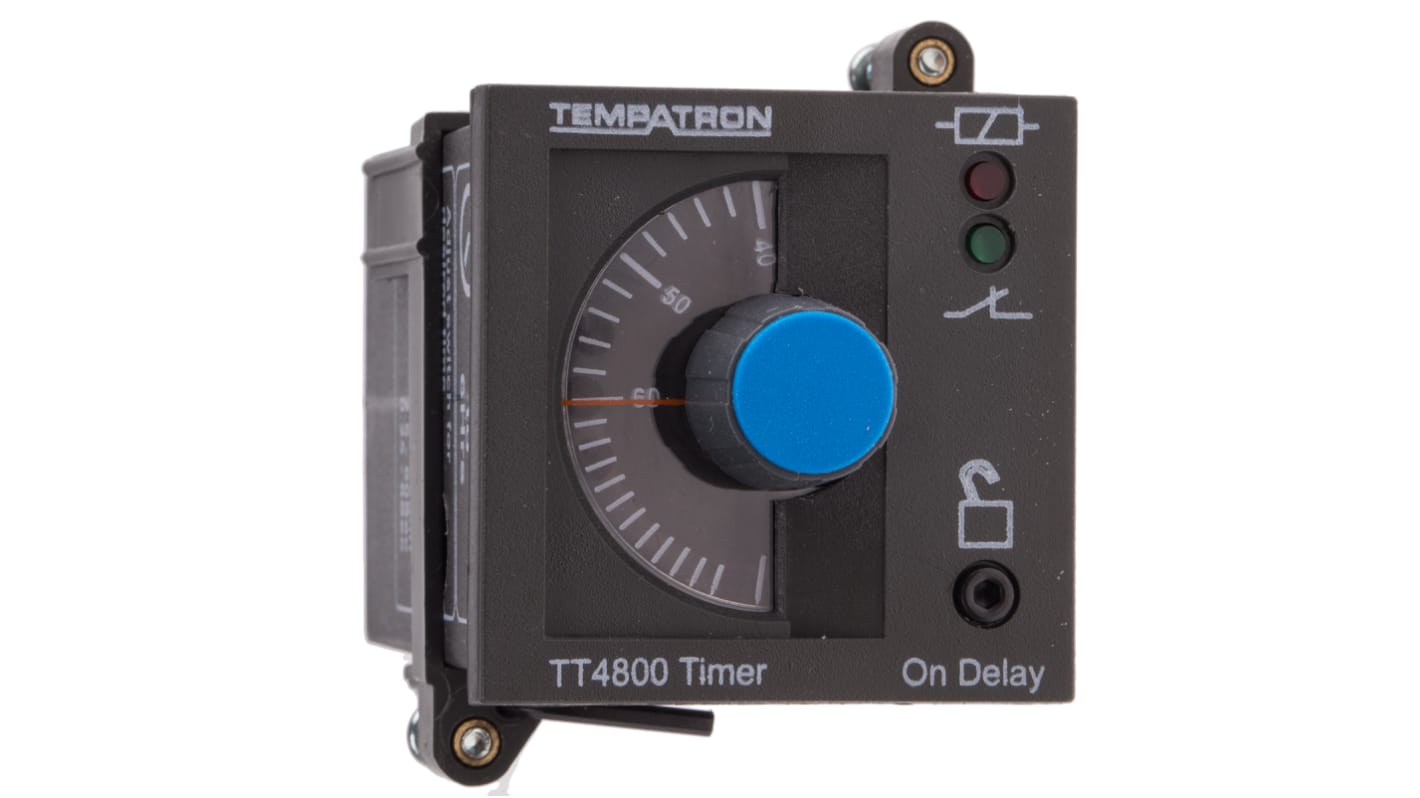

Tempatron TT4801 Series DIN Rail, Panel Mount Timer Relay, 230V ac, 2-Contact, 6 s → 6h, 1-Function, DPDT
- RS 제품 번호:
- 217-1328
- 제조사 부품 번호:
- TT4801-01
- 제조업체:
- Tempatron
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩143,989.20
재고있음
- 6 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩143,989.20 |
| 25 - 49 | ₩136,788.80 |
| 50 + | ₩132,464.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 217-1328
- 제조사 부품 번호:
- TT4801-01
- 제조업체:
- Tempatron
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Tempatron | |
| Supply Voltage | 230V ac | |
| Mounting Type | DIN Rail, Panel Mount | |
| Mode of Operation | ON Delay Energise | |
| Time Range | 6 s → 6h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Single | |
| Contact Configuration | DPDT | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 5A | |
| Maximum Voltage | 30 V dc, 240V ac | |
| Terminal Type | 8-Pin Connector | |
| Switch Configuration | DPDT | |
| Width | 48mm | |
| Power Supply | External | |
| Series | TT4801 | |
| Maximum Operating Temperature | +60°C | |
| Depth | 106mm | |
| Length | 48mm | |
| Minimum Operating Temperature | -10°C | |
| Time Delay | (Reset) 100ms | |
| 모두 선택 | ||
|---|---|---|
브랜드 Tempatron | ||
Supply Voltage 230V ac | ||
Mounting Type DIN Rail, Panel Mount | ||
Mode of Operation ON Delay Energise | ||
Time Range 6 s → 6h | ||
Number of Contacts 2 | ||
Number of Timer Functions Single | ||
Contact Configuration DPDT | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 5A | ||
Maximum Voltage 30 V dc, 240V ac | ||
Terminal Type 8-Pin Connector | ||
Switch Configuration DPDT | ||
Width 48mm | ||
Power Supply External | ||
Series TT4801 | ||
Maximum Operating Temperature +60°C | ||
Depth 106mm | ||
Length 48mm | ||
Minimum Operating Temperature -10°C | ||
Time Delay (Reset) 100ms | ||
- COO (Country of Origin):
- GB
Electronic
Function 111
8 pin
Time range selectable by screwdriver from a rotary switch on the side of the module
Lockable dial to prevent tampering
DPDT contact configuration
AgCdO contact material
8 pin
Time range selectable by screwdriver from a rotary switch on the side of the module
Lockable dial to prevent tampering
DPDT contact configuration
AgCdO contact material
Standards
EN 50081-1, EN 50082-1, EN 61010-1.
