Subtotal (1 pack of 2 units)*
₩64,875.04
재고있음
- 8 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 2 + | ₩32,437.52 | ₩64,875.04 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 254-8138
- 제조사 부품 번호:
- DX02001
- 제조업체:
- Catu
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Catu | |
| Current Rating | 20A | |
| 모두 선택 | ||
|---|---|---|
브랜드 Catu | ||
Current Rating 20A | ||
제외
- COO (Country of Origin):
- FR

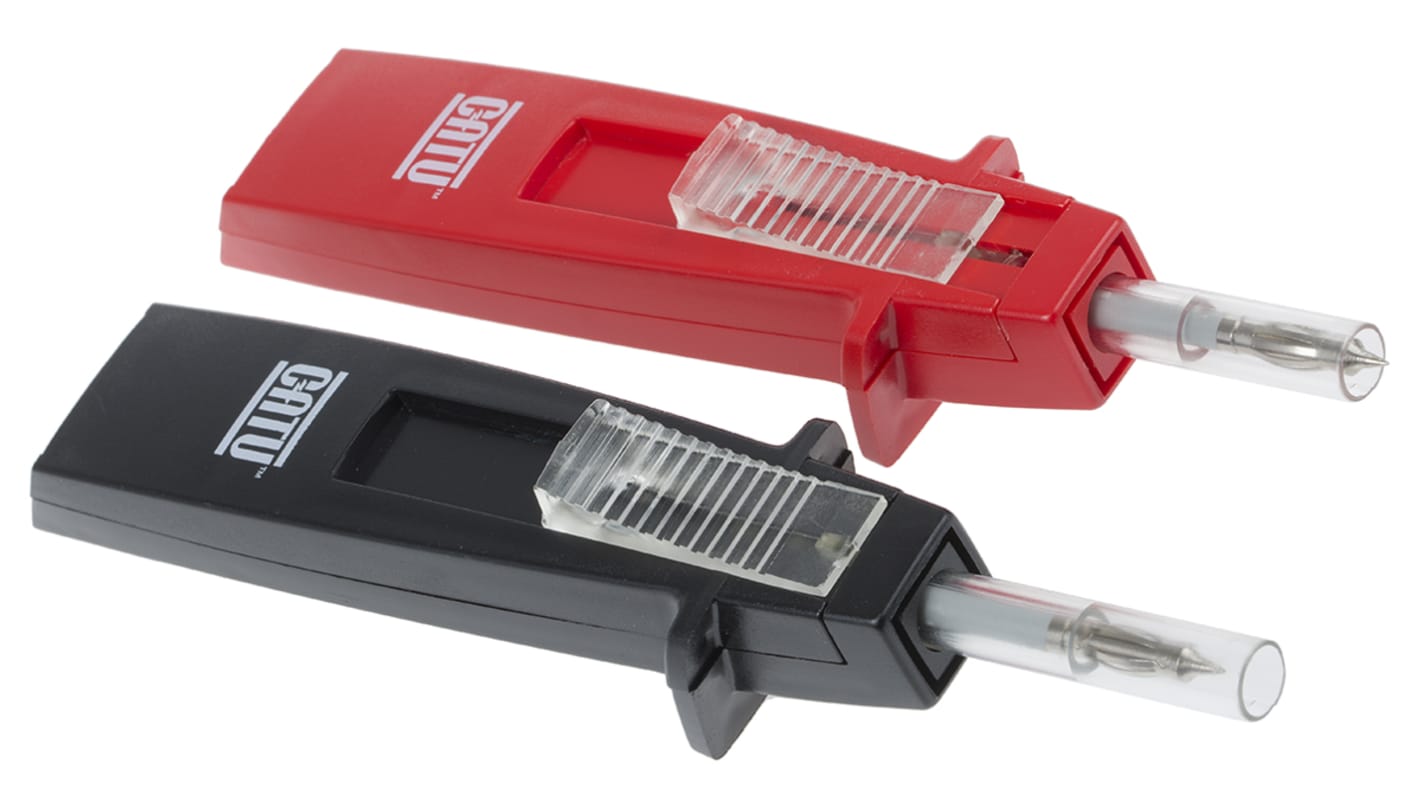

Pointest test probes
Test probes offering ease of use and complete safety.
These probes are fully compatible with all 4 mm diameter safety terminals.
The visible metal part is limited to 19mm to prevent any risk of short-circuit. However, its shape allows access to the connections at the bottom of the recess to a depth of 26mm, where traditionalprobes cannot operate.
Available in pairs (red and black) in a version with 4-mm retractable plug or 1.2 metre lead.
These probes are fully compatible with all 4 mm diameter safety terminals.
The visible metal part is limited to 19mm to prevent any risk of short-circuit. However, its shape allows access to the connections at the bottom of the recess to a depth of 26mm, where traditionalprobes cannot operate.
Available in pairs (red and black) in a version with 4-mm retractable plug or 1.2 metre lead.
Application
• Safety cords for test lead points for measuring devices.
Features
• CAT III 1 000 V.
• Hand guard (for test lead points).
• Compatible with standard Ø 4 mm connections.
• Retractable sheathing. Contact point on elastic cage Ø 4 mm.
• Double-insulated flexible wires 1.20 m length and 1 mm² cross section on Ø 4 mm IP2X elbow end pieces.
• Hand guard (for test lead points).
• Compatible with standard Ø 4 mm connections.
• Retractable sheathing. Contact point on elastic cage Ø 4 mm.
• Double-insulated flexible wires 1.20 m length and 1 mm² cross section on Ø 4 mm IP2X elbow end pieces.
Approvals
IEC 1010
