Pomona Black Male Test Connector Adapter With Brass contacts and Nickel Plated
- RS 제품 번호:
- 221-8226
- 제조사 부품 번호:
- 2894-0
- 제조업체:
- Pomona
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩19,580.00
재고있음
- 33 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩19,580.00 |
| 5 + | ₩19,000.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 221-8226
- 제조사 부품 번호:
- 2894-0
- 제조업체:
- Pomona
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Pomona | |
| Colour | Black | |
| Product Type | Test Connector Adapter | |
| Connector Gender A | Male | |
| Current | 15A | |
| Contact Material | Brass | |
| Contact Plating | Nickel | |
| Voltage | 2500Vrms | |
| Connector Type A | Binding Post | |
| Connector Type B | Single Banana Plug | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Pomona | ||
Colour Black | ||
Product Type Test Connector Adapter | ||
Connector Gender A Male | ||
Current 15A | ||
Contact Material Brass | ||
Contact Plating Nickel | ||
Voltage 2500Vrms | ||
Connector Type A Binding Post | ||
Connector Type B Single Banana Plug | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- US
Fluke Test Connector Adapter, 2500Vrms Voltage, 15A Current - 2894-0

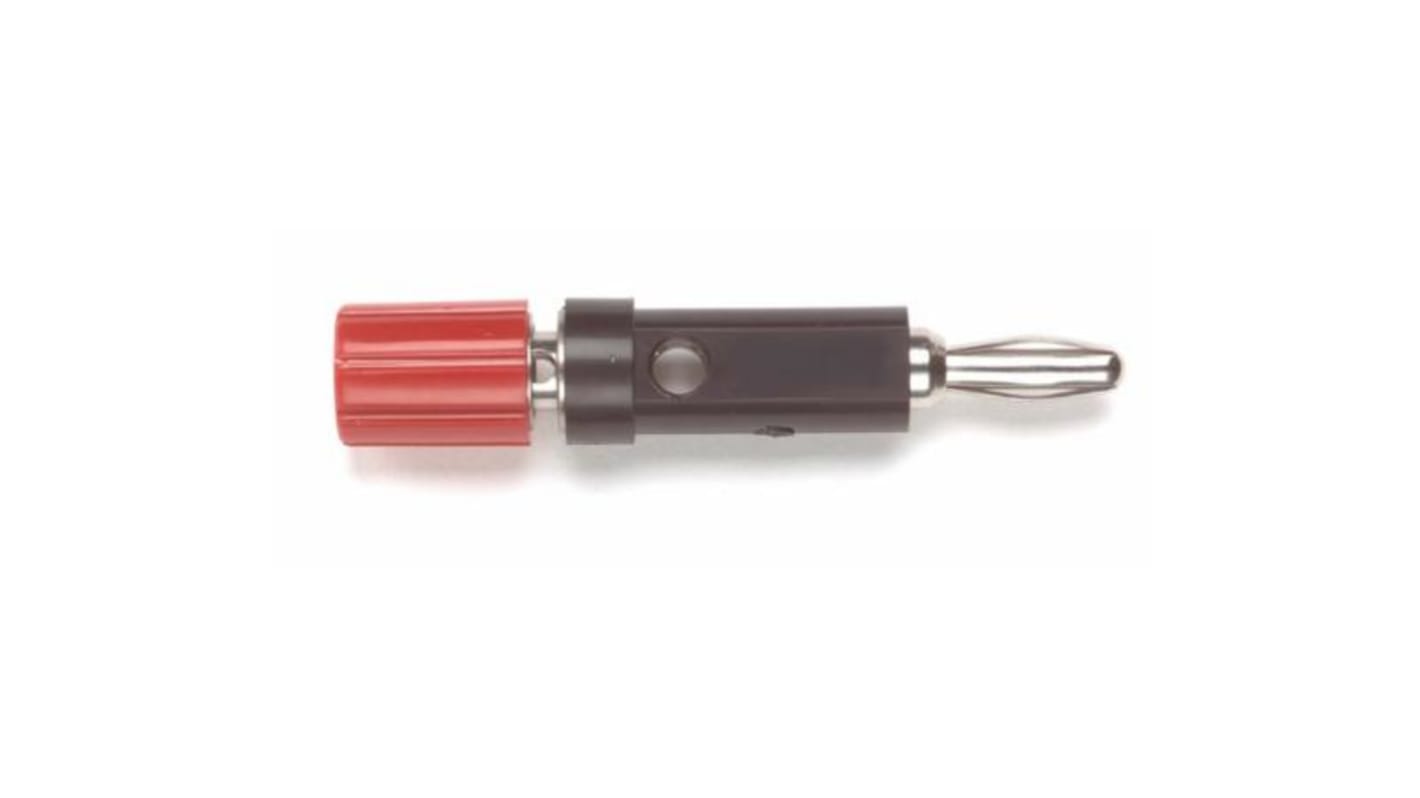

This test connector adapter converts a binding post Interface to a single banana plug for laboratory and bench use, permitting Rapid component interchange and side stack-up connections in controlled-voltage environments. It is intended for installations where insulated mounting and secure signal connections are required, and it is specified for high-voltage test situations subject to hands-free use constraints.
Features and Benefits:
• 2500Vrms rating enables high-voltage test applications
• 15A current capacity supports heavy-duty test leads
• Nickel-plated brass contacts provide corrosion resistance
• Insulated binding post allows Rapid panel mounting
• 4.2mm centre cross hole permits side stack-up connection
• 15A current capacity supports heavy-duty test leads
• Nickel-plated brass contacts provide corrosion resistance
• Insulated binding post allows Rapid panel mounting
• 4.2mm centre cross hole permits side stack-up connection
Applications
• Suitable for high-voltage laboratory testing setups
• Used with 15A test leads for power measurements
• Ideal for modular circuit interchange on test benches
• Can be used for stacked banana plug signal chains
• Used with 15A test leads for power measurements
• Ideal for modular circuit interchange on test benches
• Can be used for stacked banana plug signal chains
What insulation materials are used on the connector?
Polycarbonate is used for the binding post insulation and polypropylene is moulded to both bodies.
What metals form the contact and spring components?
Contact bodies are brass and the spring is beryllium copper.
What surface finish protects the metal parts?
Nickel plating is applied to the brass bodies and spring.
What temperature limit applies during operation?
The maximum operating temperature is +50°C.
Are multiple collar colours available for identification?
Yes, collars are available in black and red and other colours on request.
