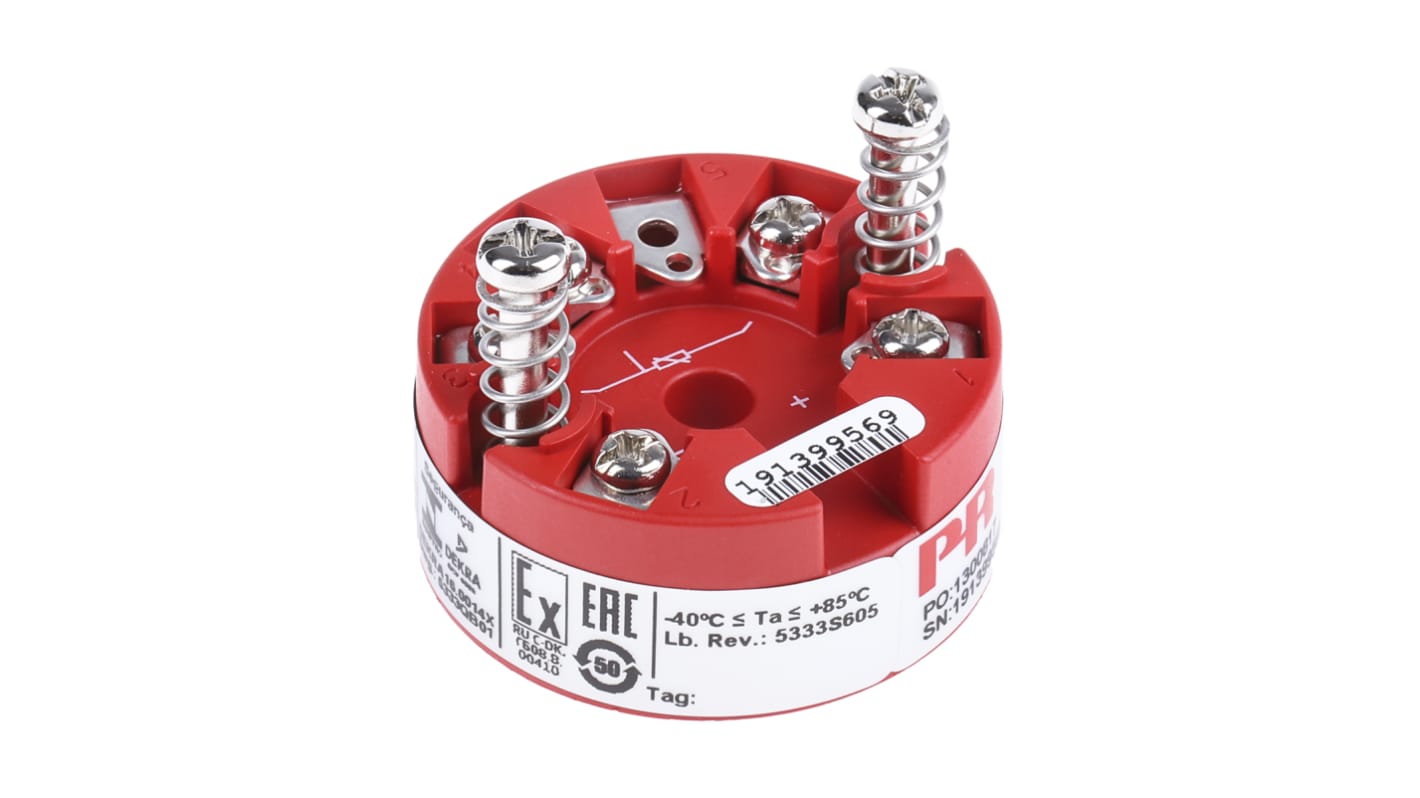

PR Electronics 5333D Temperature Transmitter RTD Input 30V dc, 85 °C, -40 °C

RS 제품 번호:: 796-7115
제조사 부품 번호:: 5333D
제조업체:: PR Electronics

PR Electronics 5333D Temperature Transmitter RTD Input 30V dc, 85 °C, -40 °C

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩280,627.60

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당
1 - 4	₩280,627.60
5 +	₩230,958.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 796-7115
제조사 부품 번호:: 5333D
제조업체:: PR Electronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	PR Electronics
	Product Type	Temperature Transmitter
	Input Type	RTD
	Output Type	4 to 20 mA
	Diameter	44 mm
	Minimum Temperature Input	-200°C
	Maximum Temperature Input	850°C
	Series	5333D
	Depth	20.2mm
	Maximum Supply Voltage	30V dc
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Hazardous Area Certification	ATEX
	Standards/Approvals	EMC:2014/30/EU, EAC:TR-CU 020/2011, DNV-GL Marine:Stand. f. Certific. No. 2.4

	모두 선택
	브랜드 PR Electronics
	Product Type Temperature Transmitter
	Input Type RTD
	Output Type 4 to 20 mA
	Diameter 44 mm
	Minimum Temperature Input -200°C
	Maximum Temperature Input 850°C
	Series 5333D
	Depth 20.2mm
	Maximum Supply Voltage 30V dc
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Hazardous Area Certification ATEX
	Standards/Approvals EMC:2014/30/EU, EAC:TR-CU 020/2011, DNV-GL Marine:Stand. f. Certific. No. 2.4

COO (Country of Origin):: DK

Sensor Inputs

The PR 5333 programmable transmitter provides unrivalled input versatility from 2 & 3 Wire RTD or linear resistance up to 10 kΩ. Input sensor redundancy function maintains process availability and safety in the event of primary sensor failure.

5300 Series - In-Head Temperature Transmitter

PR Electronics 5300 series single input temperature transmitter offers unrivalled performance In applications making heavy demands on accuracy to convert a wide array of input types to a 4 – 20 mA output signal. The 5300 series transmitters are quickly and easily programmable to the specific application. Configuration via a standard PC and user-friendly software, PReset, available as a free download. Parameters for input, output, sensor error detection and process calibration can be configured via PReset within a few minutes.

Features and Benefits

• For DIN form B sensor head mounting

• Sensor drift detection maintains measuring point reliability

• Flexible input capability, with choice of output modes

• Superior accuracy ensures true, reliable measurements

• Fast response time easily supports safety and cost-critical applications

• High immunity to conducted noise: tested against 10 Vrms in the range 15 Hz–100 MHz

• Continuous check of vital stored data for safety reasons

• Runtime meters provide a valuable history of the process temperature and the ambient temperature around the transmitter

• Very low temperature coefficient ensuring maximum accuracy across changing ambient conditions
