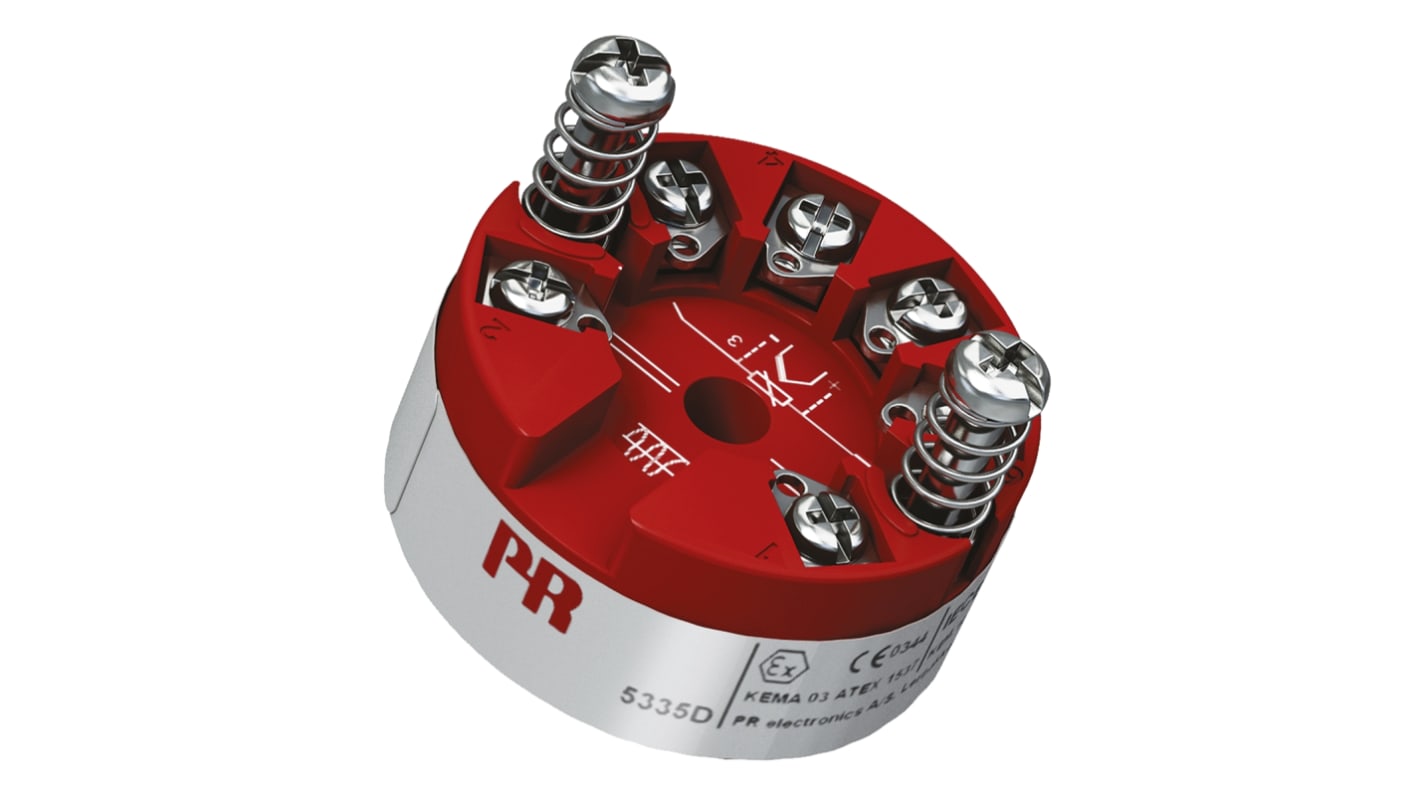

PR Electronics 5300 Temperature Transmitter Thermocouple, RTD, Voltage Input 30V dc, 85 °C, -40 °C

모든 Temperature Transmitters 열람하기

Subtotal (1 unit)*

₩941,660.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 36 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩941,660.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
827-5448
제조사 부품 번호:
5335D
제조업체:
PR Electronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

PR Electronics

Product Type

Temperature Transmitter

Input Type

Thermocouple, RTD, Voltage

Output Type

Current

Diameter

44mm

Minimum Temperature Input

-200°C

Maximum Temperature Input

850°C

Series

5300

Depth

20.2mm

Maximum Supply Voltage

30V dc

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

EAC, RoHS, CE, IEC

Hazardous Area Certification

ATEX

COO (Country of Origin):
DK

Sensor Inputs


The PR 5335 programmable transmitter provides unrivalled input versatility. Virtually any thermocouple or 2, 3 & 4 RTD plus linear resistance up to 700 Ω and bipolar mV signals. Input sensor redundancy function maintains process availability and safety in the event of primary sensor failure. An alert via HART can be used to allow scheduling of maintenance on the faulty sensor.

What is HART?


The HART protocol is a low speed, digital communications scheme that is carried on a 4…20 mA current signal. Since 4…20 mA loops are commonly used in industry, the HART protocol is easy to implement, easy to use, and easy to troubleshoot.

5300 Series - In-Head Temperature Transmitter


PR Electronics 5300 series single input temperature transmitter offers unrivalled performance In applications making heavy demands on accuracy to convert a wide array of input types to a 4 – 20 mA output signal. The 5300 series transmitters are quickly and easily programmable to the specific application. Configuration via a standard PC and user-friendly software, PReset, available as a free download. Parameters for input, output, sensor error detection and process calibration can be configured via PReset within a few minutes.

Features and Benefits


• For DIN form B sensor head mounting

• Sensor drift detection maintains measuring point reliability

• Flexible input capability, with choice of output modes

• Superior accuracy ensures true, reliable measurements

• Fast response time easily supports safety and cost-critical applications

• High immunity to conducted noise: tested against 10 Vrms in the range 15 Hz–100 MHz

• Continuous check of vital stored data for safety reasons

• Runtime meters provide a valuable history of the process temperature and the ambient temperature around the transmitter

• Very low temperature coefficient ensuring maximum accuracy across changing ambient conditions
