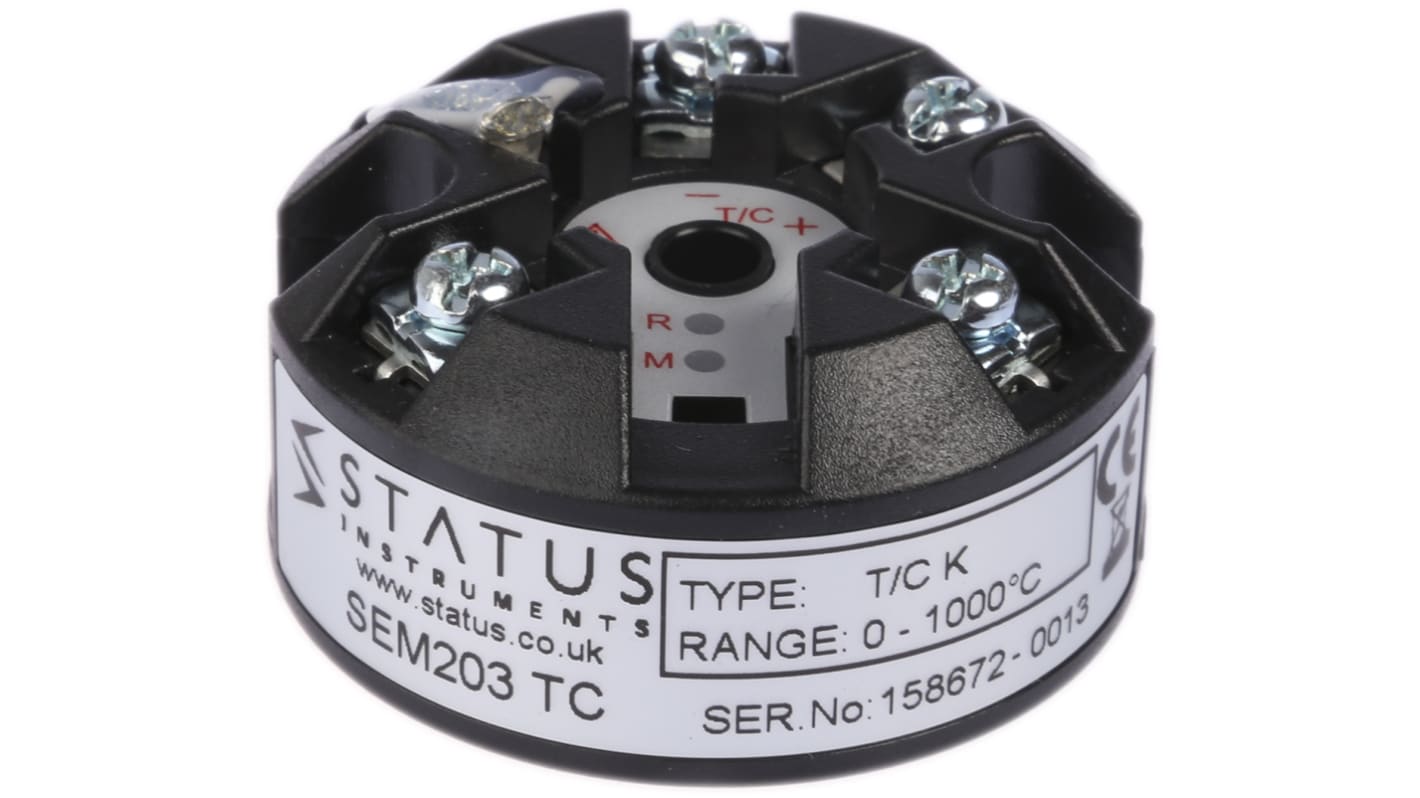

RS PRO TX203TC Temperature Transmitter 30V dc, 70 °C, -40 °C
- RS 제품 번호:
- 381-7132
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩194,161.50
재고있음
- 72 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩194,161.50 |
| 6 - 29 | ₩184,782.00 |
| 30 + | ₩152,080.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 381-7132
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Temperature Transmitter | |
| Output Type | 2-Wire | |
| Diameter | 43mm | |
| Minimum Temperature Input | -200°C | |
| Maximum Temperature Input | 1760°C | |
| Series | TX203TC | |
| Depth | 21mm | |
| Maximum Supply Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | IEC 61000-4-4, EMC - BS EN 61326, IEC 61000-4-2, IEC 61000-4-5, IEC 61000-4-3 | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Temperature Transmitter | ||
Output Type 2-Wire | ||
Diameter 43mm | ||
Minimum Temperature Input -200°C | ||
Maximum Temperature Input 1760°C | ||
Series TX203TC | ||
Depth 21mm | ||
Maximum Supply Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification NO | ||
Standards/Approvals IEC 61000-4-4, EMC - BS EN 61326, IEC 61000-4-2, IEC 61000-4-5, IEC 61000-4-3 | ||
- COO (Country of Origin):
- GB
RS PRO Temperature Transmitter Various Input, 8 → 30 V DC
This temperature transmitter from our RS PRO series is an excellent solution for heat-sensitive applications. It's intended for use with a temperature sensor to help monitor and regulate temperature changes.
Operating on a supply voltage of 8 V DC to 30 V DC, it's compatible with most industrial equipment used in manufacturing. It has an adjustable temperature range of -20°C to +70°C with a push-button configuration that makes this simple; you can set the temperature range in 10 seconds. What’s more, this transmitter features drift free digital technology for added reliability. It's designed for thermocouple type sensors which can be easily connected, only two copper wires are needed.
This product meets our high standards for safety and durability. It is RoHS compliant, so no hazardous substance is present in excess of 0.1%. Temperature transmitters are a crucial component for safe operation.
Features and Benefits
• Supply voltage of 8 V DC to 30 V DC
• Operating temperature range of -20°C to +70°C
• Suitable for Thermocouple Type E, J, K, N, R, S and T input
• Diameter of 43 mm
• Depth of 21 mm
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
