RS PRO TX104TC Temperature Transmitter K Type Thermocouple Input 30V dc, 70 °C, 0 °C

모든 Temperature Transmitters 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 unit)*

₩191,961.90

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 8월 31일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 4₩191,961.90
5 +₩157,985.10

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
363-0222
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Input Type

K Type Thermocouple

Product Type

Temperature Transmitter

Output Type

4 to 20 mA

Diameter

42mm

Minimum Temperature Input

100°C

Maximum Temperature Input

1000°C

Series

TX104TC

Depth

23mm

Maximum Supply Voltage

30V dc

Minimum Operating Temperature

0°C

Maximum Operating Temperature

70°C

Hazardous Area Certification

NO

Standards/Approvals

BS EN 61326

COO (Country of Origin):
GB

RS PRO Temperature Transmitter, Thermocouple Type J, K, T, Input 10 to 30 V DC

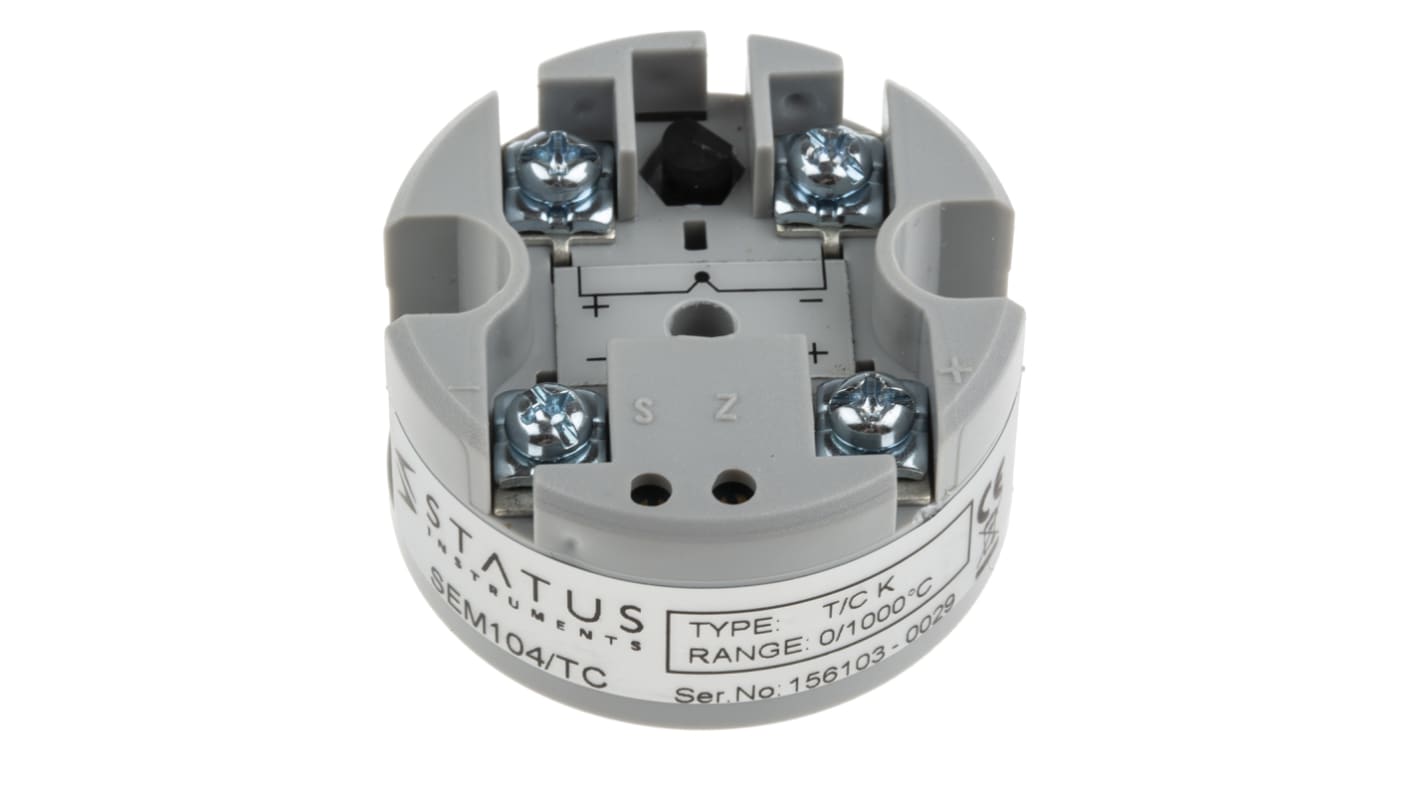

If you need to send a signal from your thermocouple sensor to a separate location, this temperature transmitter from RS PRO is an ideal solution. You can adjust it to be compatible with Type J, K, or T thermocouples, making it a highly versatile component. It will isolate, filter and convert an input signal from the sensor into a usable output between 4 mA and 20 mA (milliamperes), which can then be used for monitoring purposes.
The transmitter is designed for mounting onto a DIN rail in a terminal head, so it can be installed quickly and securely without the need for additional maintenance or tools. A transmission accuracy of ±0.1% means that you can be sure you're always getting a precise reading of the temperature for your monitoring or processing phase. Use this product in industrial settings, as well as power grids and automotive applications.

Features and Benefits


• Depth of 23 mm
• Diameter of 42 mm
• Thermocouple Type J, Type K and Type T inputs
• Operating temperature of range of 0°C to +70°C
• Supply voltage of 10 V to 30 V DC
