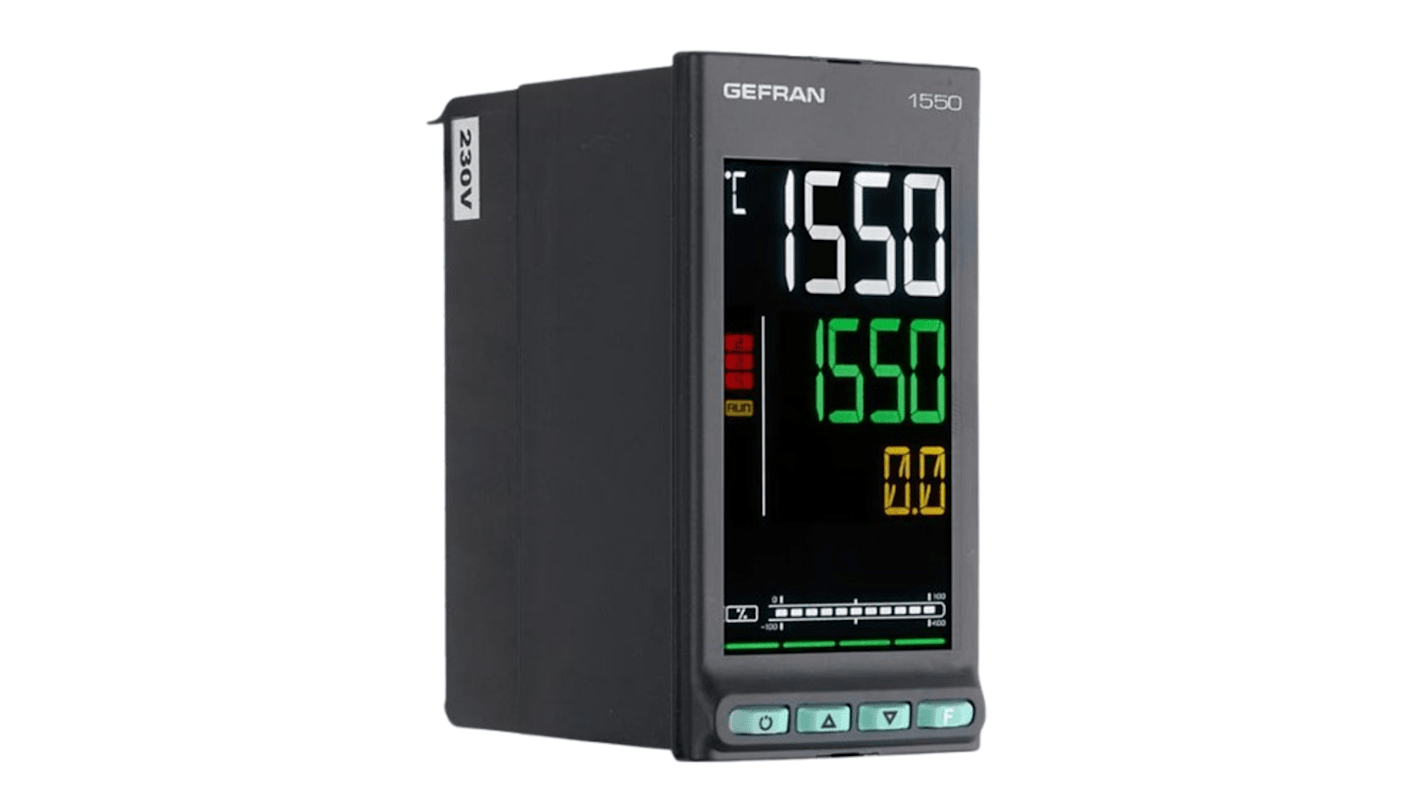

Gefran 1550 Faceplate, Panel PID Temperature Controller 1 Input, 4 Output Analogue 24V PID Controller, Temperature
- RS 제품 번호:
- 192-571
- 제조사 부품 번호:
- 1550-R-RR0-11061-1-G
- 제조업체:
- Gefran
Subtotal (1 unit)*
₩1,294,474.00
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,294,474.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 192-571
- 제조사 부품 번호:
- 1550-R-RR0-11061-1-G
- 제조업체:
- Gefran
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Gefran | |
| Product Type | PID Temperature Controller | |
| Output Type | Analogue | |
| Number of Inputs | 1 | |
| Number of Outputs | 4 | |
| Maximum Current | 5A | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Control Type | PID Controller, Temperature Control | |
| Terminal Type | Screw | |
| Maximum Supply Voltage | 24V | |
| Auxiliary Power Supply | 24 V ac | |
| Digital Comms | RS485 | |
| Diagnostics | Yes | |
| Energy measurement | Yes | |
| Display Type | LCD | |
| Maximum Voltage | 240V | |
| IP Rating | IP65 | |
| Standards/Approvals | 2014/30/EU, 2014/35/EU | |
| Width | 96 mm | |
| Series | 1550 | |
| Mount Type | Faceplate, Panel | |
| Input Type | DC Linear Sensor, Thermocouple, PT1000, PT100, Infrared Sensor | |
| Panel Depth | 80mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Gefran | ||
Product Type PID Temperature Controller | ||
Output Type Analogue | ||
Number of Inputs 1 | ||
Number of Outputs 4 | ||
Maximum Current 5A | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Control Type PID Controller, Temperature Control | ||
Terminal Type Screw | ||
Maximum Supply Voltage 24V | ||
Auxiliary Power Supply 24 V ac | ||
Digital Comms RS485 | ||
Diagnostics Yes | ||
Energy measurement Yes | ||
Display Type LCD | ||
Maximum Voltage 240V | ||
IP Rating IP65 | ||
Standards/Approvals 2014/30/EU, 2014/35/EU | ||
Width 96 mm | ||
Series 1550 | ||
Mount Type Faceplate, Panel | ||
Input Type DC Linear Sensor, Thermocouple, PT1000, PT100, Infrared Sensor | ||
Panel Depth 80mm | ||
- COO (Country of Origin):
- IT
The Gefran Temperature Controller has operator interface with large LCD Display and three configurable bar graphs. It gives scrolling diagnostics messages, configurable, in the selected language.
Preventive maintenance with energy counters (kWh) and load switching
Different password levels
Advanced tuning of control parameters
