제조사부품번호

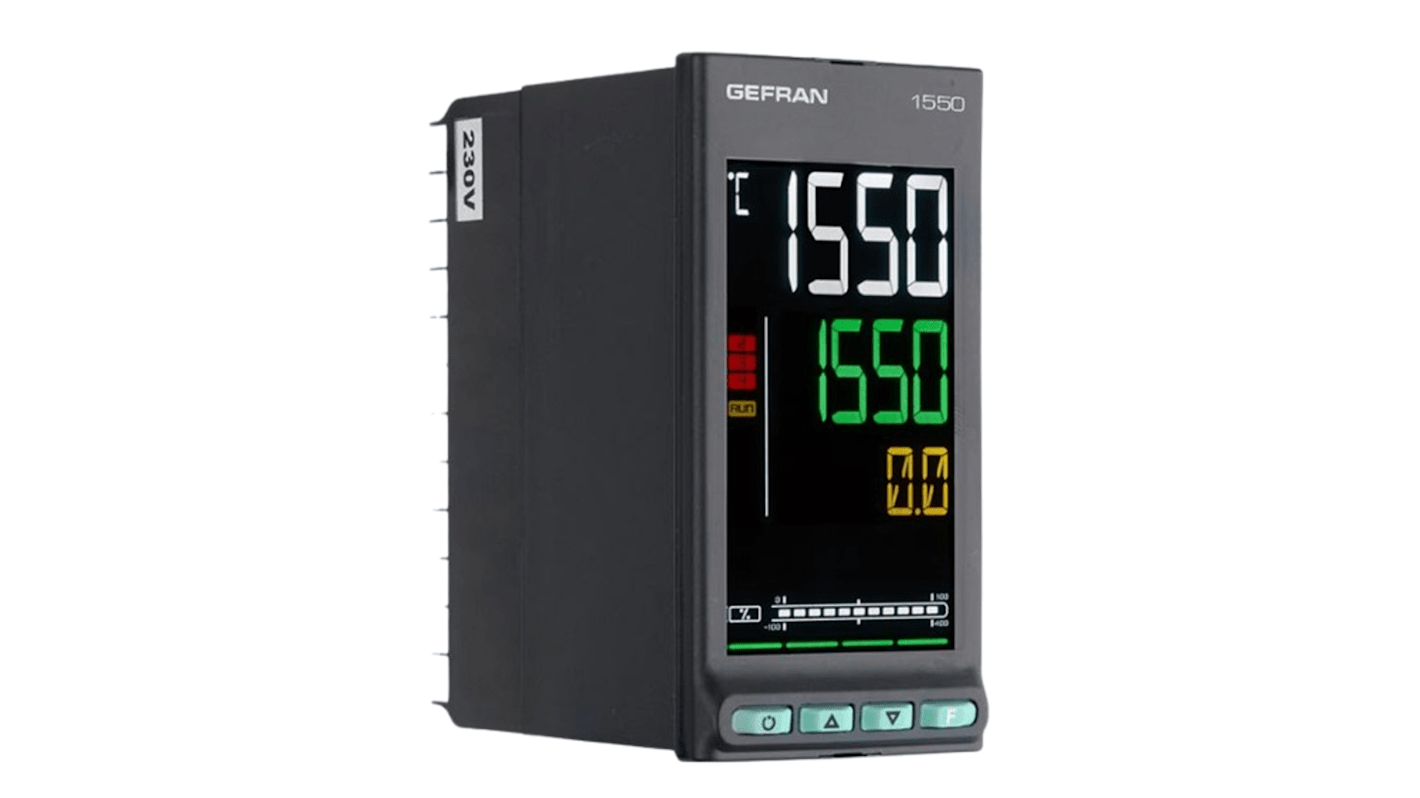

Gefran 1550 Faceplate, Panel PID Temperature Controller 1 Input, 4 Output Analogue 24V PID Controller, Temperature

RS 제품 번호:: 192-568
제조사 부품 번호:: 1550-R-RR0-00000-1-G
제조업체:: Gefran

Gefran 1550 Faceplate, Panel PID Temperature Controller 1 Input, 4 Output Analogue 24V PID Controller, Temperature

Subtotal (1 unit)*

₩712,858.40

일시적 품절

2026년 3월 27일 부터 1 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩712,858.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 192-568
제조사 부품 번호:: 1550-R-RR0-00000-1-G
제조업체:: Gefran

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Gefran
	Output Type	Analogue
	Product Type	PID Temperature Controller
	Number of Inputs	1
	Number of Outputs	4
	Maximum Current	5A
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	55°C
	Control Type	PID Controller, Temperature Control
	Maximum Supply Voltage	24V
	Auxiliary Power Supply	24 V ac
	Energy measurement	Yes
	Digital Comms	RS485/Modbus RTU/Serial
	Diagnostics	Total Or Partial Load Break, Complete Diagnostics for Broken Or Incorrectly Connected Probe, Out Of Range Variables, Control Loop Faults
	Display Type	LCD
	Standards/Approvals	UL, EN 61326-1, 2014/30/EU, EN61010-1, C/UL/US File no. E216851, 2014/35/EU, Class A
	IP Rating	IP65
	Input Type	Linear Input, Thermocouple, Universal Input: Thermocouple
	Mount Type	Faceplate, Panel
	Series	1550
	Panel Depth	80mm

	모두 선택
	브랜드 Gefran
	Output Type Analogue
	Product Type PID Temperature Controller
	Number of Inputs 1
	Number of Outputs 4
	Maximum Current 5A
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 55°C
	Control Type PID Controller, Temperature Control
	Maximum Supply Voltage 24V
	Auxiliary Power Supply 24 V ac
	Energy measurement Yes
	Digital Comms RS485/Modbus RTU/Serial
	Diagnostics Total Or Partial Load Break, Complete Diagnostics for Broken Or Incorrectly Connected Probe, Out Of Range Variables, Control Loop Faults
	Display Type LCD
	Standards/Approvals UL, EN 61326-1, 2014/30/EU, EN61010-1, C/UL/US File no. E216851, 2014/35/EU, Class A
	IP Rating IP65
	Input Type Linear Input, Thermocouple, Universal Input: Thermocouple
	Mount Type Faceplate, Panel
	Series 1550
	Panel Depth 80mm

Datasheet - 1550-R-RR0-00000-1-G

COO (Country of Origin):: IT

The Gefran Temperature Controller has operator interface with large LCD Display and three configurable bar graphs. It gives scrolling diagnostics messages, configurable, in the selected language.

Preventive maintenance with energy counters (kWh) and load switching

Different password levels

Advanced tuning of control parameters

Gefran 1550 Faceplate, Panel PID Temperature Controller 1 Input, 4 Output Analogue 24V PID Controller, Temperature
