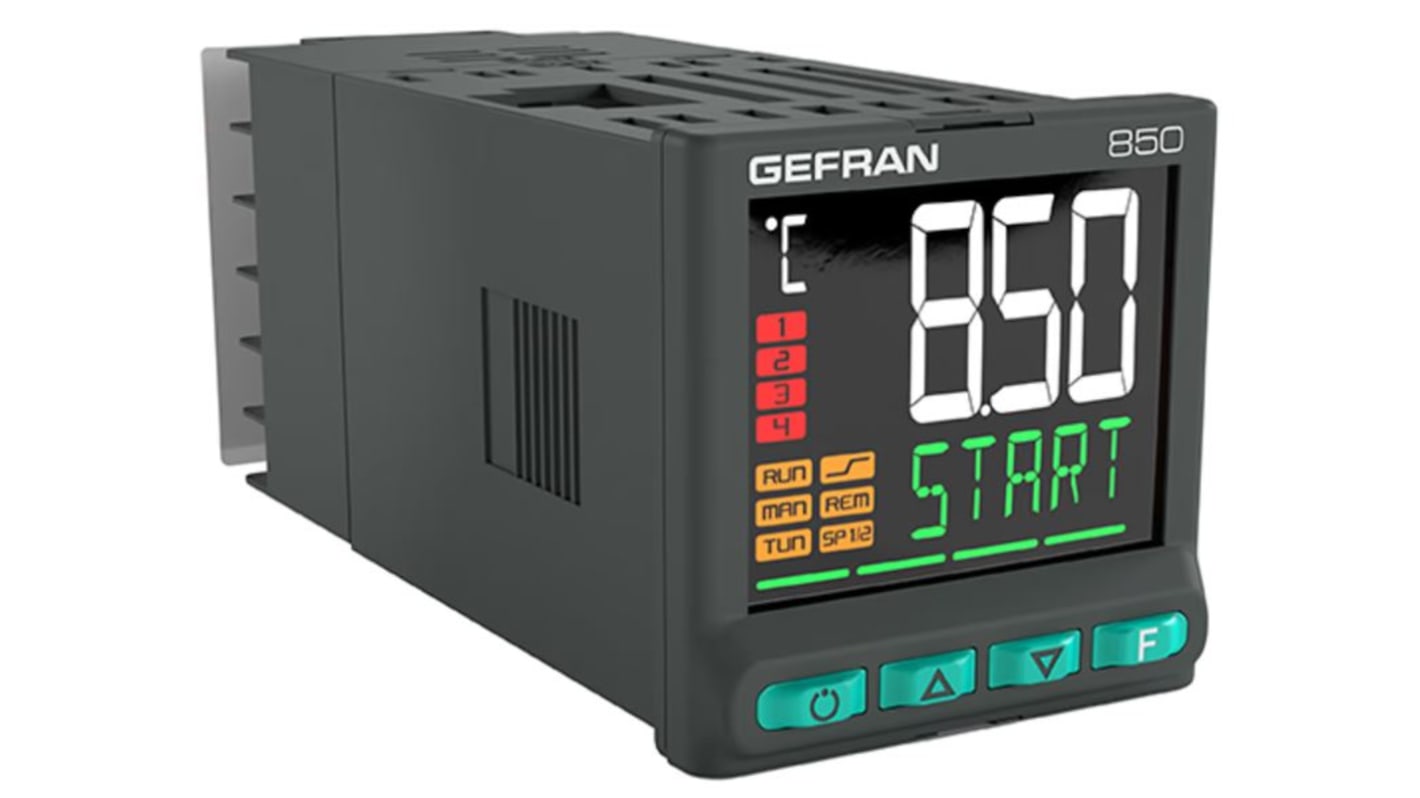

Gefran 850 Panel PID Temperature Controller 3 Input, 4 Output Analogue 24V Temperature Control, PID Controller
- RS 제품 번호:
- 192-565
- 제조사 부품 번호:
- 850-A-RRD-0-0-03-3-00-00-1-00
- 제조업체:
- Gefran
Subtotal (1 unit)*
₩1,233,092.00
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,233,092.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 192-565
- 제조사 부품 번호:
- 850-A-RRD-0-0-03-3-00-00-1-00
- 제조업체:
- Gefran
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Gefran | |
| Output Type | Analogue | |
| Product Type | PID Temperature Controller | |
| Number of Inputs | 3 | |
| Number of Outputs | 4 | |
| Maximum Operating Temperature | 55°C | |
| Minimum Operating Temperature | -10°C | |
| Terminal Type | Screw | |
| Control Type | Temperature Control, PID Controller | |
| Maximum Supply Voltage | 24V | |
| Digital Comms | RS485 | |
| Firing Mode | Zero Crossing | |
| Auxiliary Power Supply | 24 VDC, 30 mA | |
| Controlled Phases | 2 | |
| Energy measurement | Yes | |
| Diagnostics | Scrolling Diagnostics Messages, Exhaustive Diagnostics, Interrupted Load Diagnostics | |
| Display Type | LCD | |
| IP Rating | IP65 | |
| Width | 48 mm | |
| Length | 48mm | |
| Standards/Approvals | CE, EAC, RoHS, REACH, cUL, EN 61326-1, Nadcap, UL, EN 61010-1, AMS2750E | |
| Series | 850 | |
| Input Type | TC RTD | |
| Mount Type | Panel | |
| Panel Depth | 100mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Gefran | ||
Output Type Analogue | ||
Product Type PID Temperature Controller | ||
Number of Inputs 3 | ||
Number of Outputs 4 | ||
Maximum Operating Temperature 55°C | ||
Minimum Operating Temperature -10°C | ||
Terminal Type Screw | ||
Control Type Temperature Control, PID Controller | ||
Maximum Supply Voltage 24V | ||
Digital Comms RS485 | ||
Firing Mode Zero Crossing | ||
Auxiliary Power Supply 24 VDC, 30 mA | ||
Controlled Phases 2 | ||
Energy measurement Yes | ||
Diagnostics Scrolling Diagnostics Messages, Exhaustive Diagnostics, Interrupted Load Diagnostics | ||
Display Type LCD | ||
IP Rating IP65 | ||
Width 48 mm | ||
Length 48mm | ||
Standards/Approvals CE, EAC, RoHS, REACH, cUL, EN 61326-1, Nadcap, UL, EN 61010-1, AMS2750E | ||
Series 850 | ||
Input Type TC RTD | ||
Mount Type Panel | ||
Panel Depth 100mm | ||
- COO (Country of Origin):
- IT
The Gefran Temperature Controller has operator interface with large LCD Display and three configurable bar graphs. It gives scrolling diagnostics messages, configurable, in the selected language.
Preventive maintenance with energy counters (kWh) and load switching
Different password levels
Advanced tuning of control parameters
