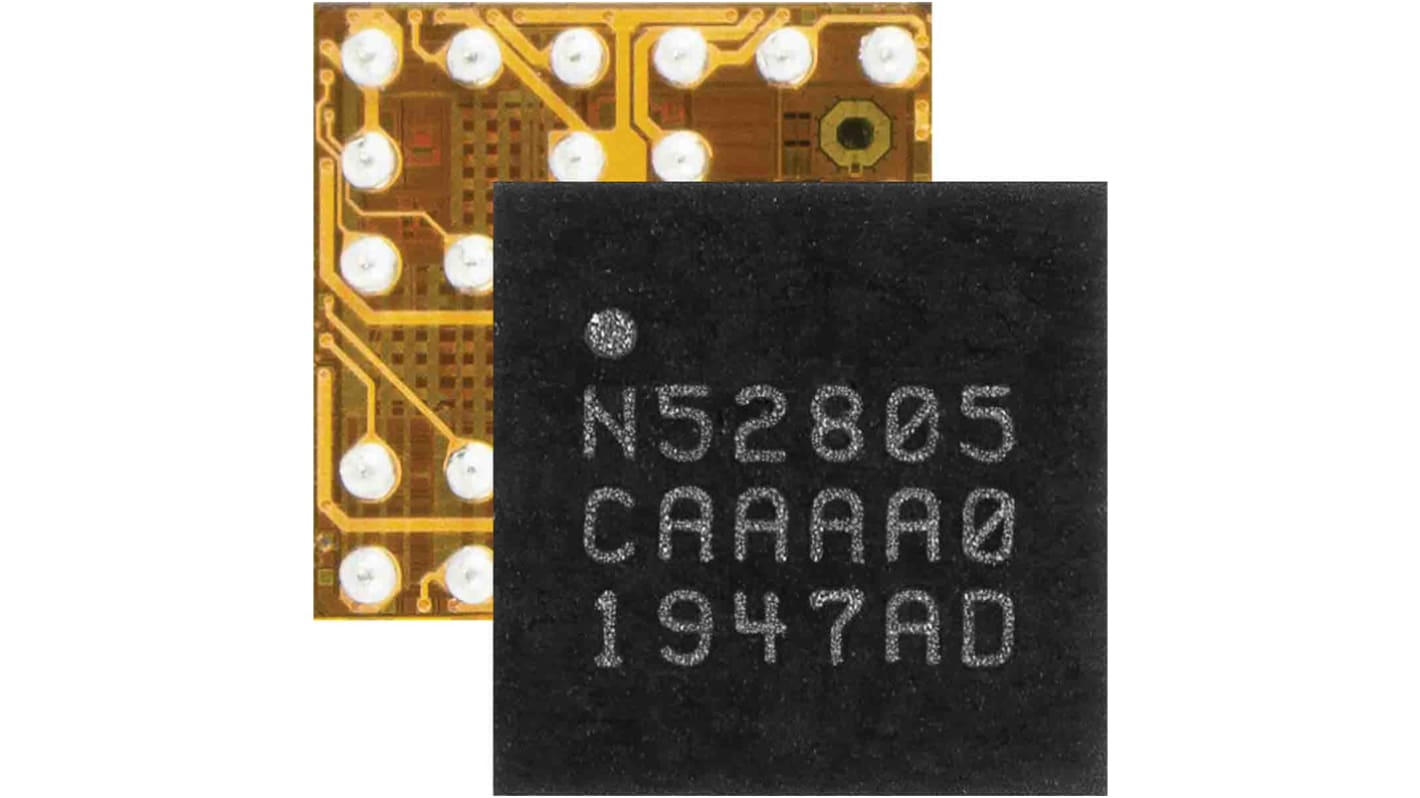

Nordic Semiconductor nRF52805-CAAA-R7 ARM Cortex M4 Bluetooth SoC 28-Pin WLCSP
- RS 제품 번호:
- 202-4884
- 제조사 부품 번호:
- nRF52805-CAAA-R7
- 제조업체:
- Nordic Semiconductor
대량 구매 할인 기용 가능
Subtotal (1 reel of 1500 units)*
₩3,976,200.00
일시적 품절
- 2026년 7월 13일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 1500 - 1500 | ₩2,650.80 | ₩3,977,046.00 |
| 3000 - 4500 | ₩2,598.16 | ₩3,897,522.00 |
| 6000 + | ₩2,545.52 | ₩3,819,408.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 202-4884
- 제조사 부품 번호:
- nRF52805-CAAA-R7
- 제조업체:
- Nordic Semiconductor
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Nordic Semiconductor | |
| Product Type | Bluetooth SoC | |
| Processing Unit | Bluetooth | |
| Technology | ARM Cortex M4 | |
| Mount Type | Surface | |
| Package Type | WLCSP | |
| Pin Count | 28 | |
| Program Memory Size | 192kB | |
| Program Memory Type | FLASH | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 3.6V | |
| Data RAM Type | RAM | |
| Data RAM Size | 24kB | |
| Minimum Operating Temperature | -40°C | |
| Number of I/Os | 10 | |
| Maximum Operating Temperature | 85°C | |
| Height | 0.4mm | |
| Length | 2.48mm | |
| Standards/Approvals | No | |
| Series | nRF52805 | |
| Width | 2.46 mm | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Nordic Semiconductor | ||
Product Type Bluetooth SoC | ||
Processing Unit Bluetooth | ||
Technology ARM Cortex M4 | ||
Mount Type Surface | ||
Package Type WLCSP | ||
Pin Count 28 | ||
Program Memory Size 192kB | ||
Program Memory Type FLASH | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 3.6V | ||
Data RAM Type RAM | ||
Data RAM Size 24kB | ||
Minimum Operating Temperature -40°C | ||
Number of I/Os 10 | ||
Maximum Operating Temperature 85°C | ||
Height 0.4mm | ||
Length 2.48mm | ||
Standards/Approvals No | ||
Series nRF52805 | ||
Width 2.46 mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The Nordic Bluetooth 5.2 System-on-chip is 7th addition to the industry-leading nRF52® Series. It features an Arm Cortex-M4 processor, clocked at 64 MHz (144 Core Mark), with excellent efficiency (65 Core Mark/mA). It has 192 KB Flash and 24 KB RAM and integrates a range of analogue and digital interfaces such as a 2-channel 12-bit ADC, SPI, UART, and TWI.
64 MHz Arm Cortex-M4
Optimized for small two-layer PCB designs
Integrated DC/DC regulator
