Nordic Semiconductor nRF52840 SoC nRF52840 Bluetooth Development Kit for NRF52840 SoC 2.4 GHz NRF52840-DK

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩91,574.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 62 개 단위 배송 준비 완료
  • 추가로 2026년 4월 15일 부터 97 개 단위 배송
  • 추가로 2026년 5월 27일 부터 49 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩91,574.80
5 - 24₩88,830.00
25 +₩87,062.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
146-3539
Distrelec 제품 번호:
304-11-882
제조사 부품 번호:
NRF52840-DK
제조업체:
Nordic Semiconductor
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Nordic Semiconductor

Product Type

Communication & Wireless Development Tool

Kit Classification

Development Kit

RF Technology

Bluetooth

For Use With

NRF52840 SoC

Featured Device

nRF52840

Kit Name

nRF52840 SoC

Maximum Frequency

2.4GHz

Standards/Approvals

RoHS

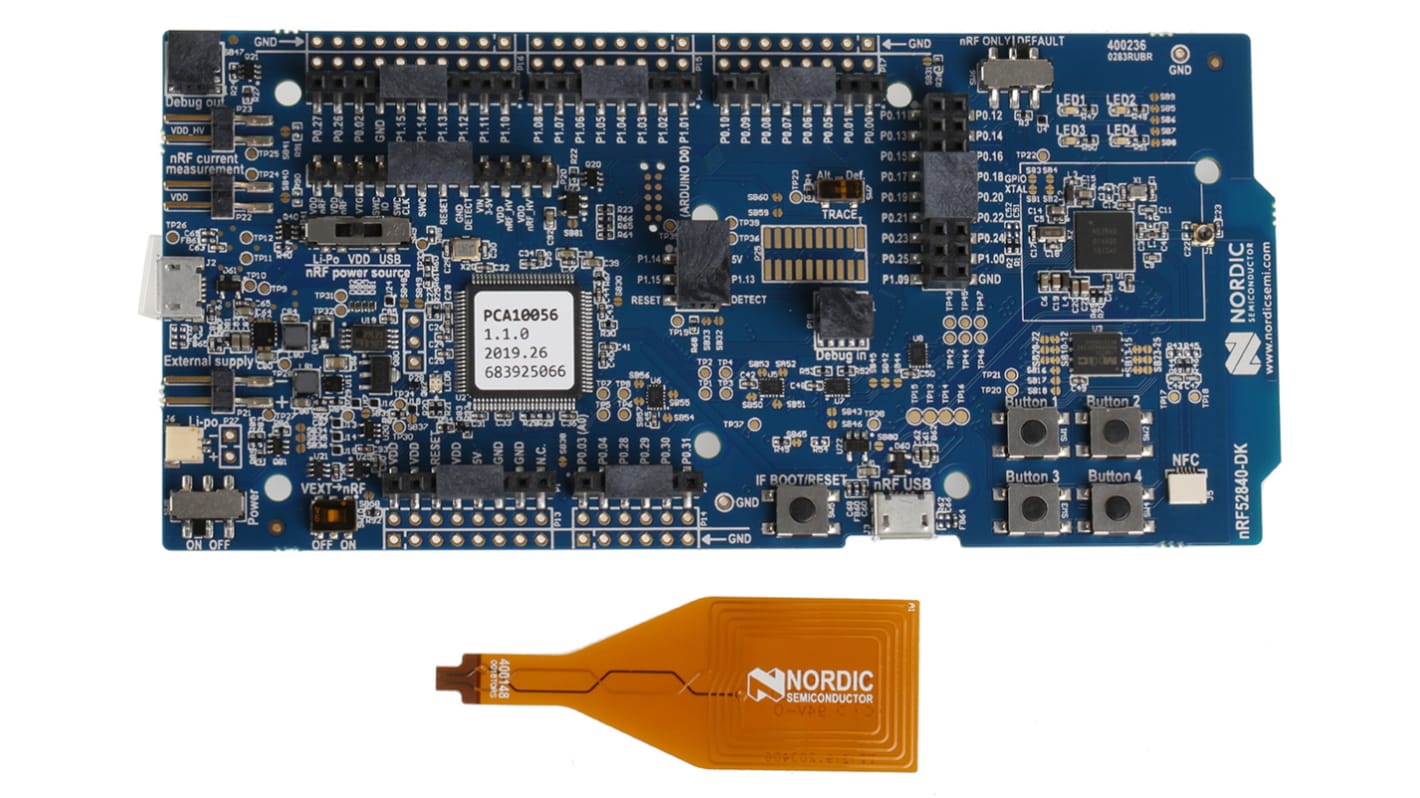

Nordic Semiconductor Bluetooth Development Kit


The Nordic Semiconductor Bluetooth Development Kit has access to all I/Os and interfaces via connectors and there are an integrated PCB trace antenna and an RFconnector for direct RF test measurements. There is also a connector for an external NFC antenna. The kit is compatible with the Arduino Uno Rev3 standard making it possible to use a wide range of 3rd-party shields during development. It comes with an on-board SEGGER J-Link debugger allowing programming and debugging both the onboard SoC and external SoCs through the debug out the header.

Features and Benefits


3rd party shields

4 x user-programmable buttons

4 x user-programmable LEDs

Affordable, single-board development kit for the nRF52811 and nRF52840 SoCs

All I/Os (48) and interfaces available via connectors

Arduino Rev3 compatible connector for use with

Arm CryptoCell CC310 cryptographic accelerator

Bluetooth 5 multiprotocoll radio

Coin-cell battery holder

Connector for external NFC antenna

DSP instruction set

External memory on-board

Integrated 2.4 GHz PCB antenna

NFC antenna

Pins for power consumption measurements

Segger J-Link OB programming/debugging supported

Support for programming/debugging of external boards

SWF RF connector for direct RF measurements

USB interface direct to nRF52840 SoC

USB interface to power and program/debug

Voltage of 1.7V and 5.5 V supplied from a battery, external or USB

Applications


IoT

Advanced personal fitness devices

Advanced remote controls

Advanced wearables

Connected Health

Gaming controllers

Interactive entertainment devices

Virtual/Augmented Reality applications

Certifications


IEEE 802.15.4
