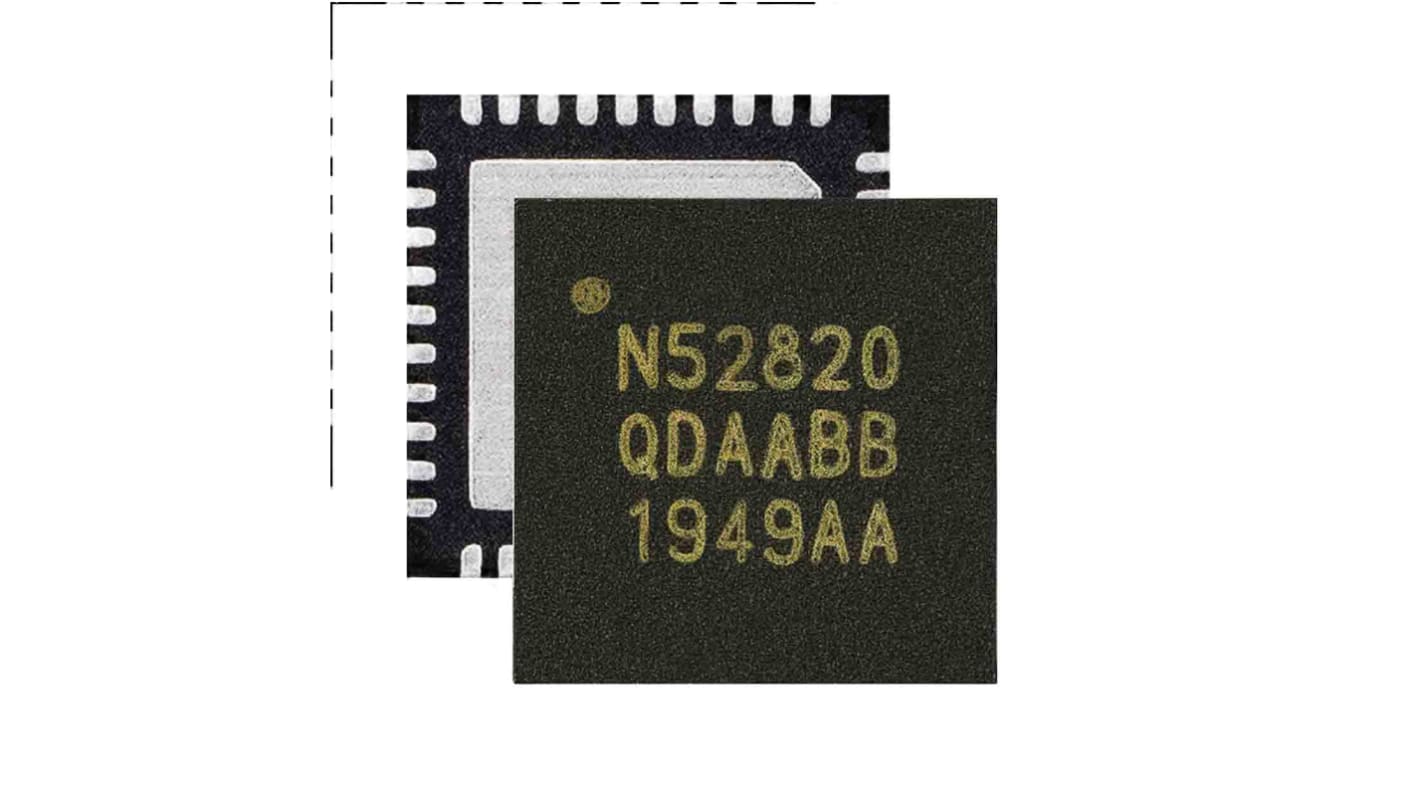

Nordic Semiconductor NRF52820-QDAA-R7 ARM Cortex M4 Wireless System On Chip SOC 40-Pin QFN

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 System-On-Chips 열람하기
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
RS 제품 번호:
201-7872
제조사 부품 번호:
NRF52820-QDAA-R7
제조업체:
Nordic Semiconductor
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Nordic Semiconductor

Product Type

Wireless System On Chip SOC

Processing Unit

Microprocessor

Technology

ARM Cortex M4

Mount Type

Surface

Package Type

QFN

Pin Count

40

Program Memory Size

256kB

Program Memory Type

FLASH

Minimum Supply Voltage

1.7V

Maximum Supply Voltage

5.5V

Data RAM Size

32kB

Data RAM Type

RAM

Minimum Operating Temperature

-40°C

Number of I/Os

18

Maximum Operating Temperature

105°C

Width

5 mm

Standards/Approvals

No

Series

nRF52820

Length

5mm

Automotive Standard

No

COO (Country of Origin):
TW
The nRF52820 System-on-Chip (SoC) is the 6th addition to the industry-leading nRF52 series. It augments the already extensive collection of wireless SoCs with a lower-end option with built-in USB and a fully-featured multiprotocol radio. The nRF52 series is truly the ideal platform for basing a product portfolio upon. The common hardware and software architecture results in excellent software portability, increasing software reusability and lowering time-to-market and development cost.

64 MHz Arm Cortex-M4

256 KB Flash + 32 KB RAM

Bluetooth Low Energy

Bluetooth mesh

Thread and ZigBee (802.15.4)

Ultra-low-power 2.4 GHz multiprotocol radio

12 Mbps Full Speed USB 2.0

Integrated DC/DC regulator

Extended temperature range: -40°C to +105°C

1.7-5.5 V supply voltage range
