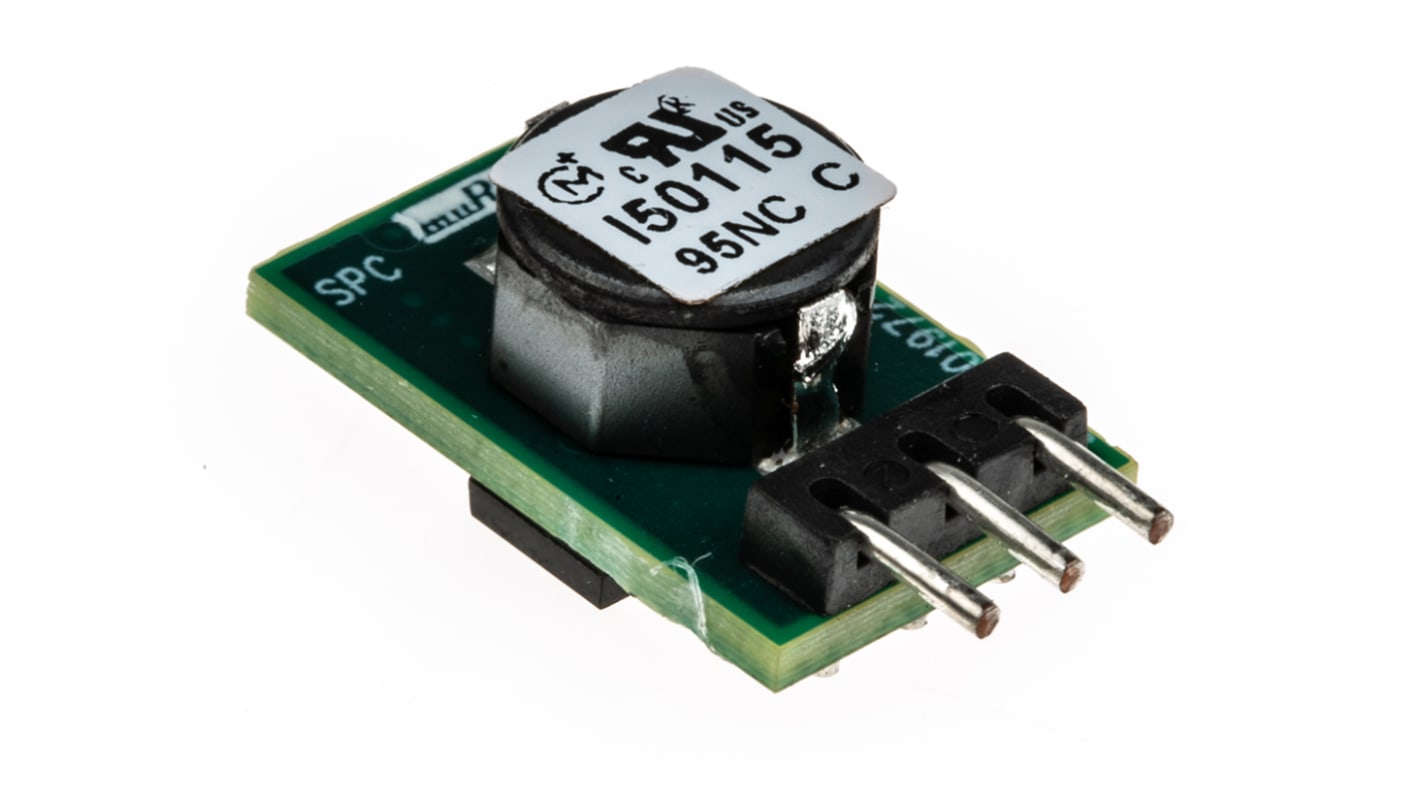

Murata Power Solutions Switching Regulator, Through Hole, 5V dc Output Voltage, 1.5A Output Current, 1 Outputs

RS 제품 번호:: 796-2132
제조사 부품 번호:: OKI-78SR-5/1.5-W36-C
제조업체:: Murata Power Solutions

Murata Power Solutions Switching Regulator, Through Hole, 5V dc Output Voltage, 1.5A Output Current, 1 Outputs

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩9,982.80

재고있음

853 개 단위 배송 준비 완료
추가로 2025년 8월 18일 부터 4,446 개 단위 배송
추가로 2025년 10월 11일 부터 7,920 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 89	₩9,982.80
90 - 179	₩9,813.60
180 +	₩9,644.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 796-2132
제조사 부품 번호:: OKI-78SR-5/1.5-W36-C
제조업체:: Murata Power Solutions

Murata 1.5A Single Output Non-Isolated DC-DC Converter - OKI Series

The Murata PS OKI-78SR Series is built on a 10.4 by 16.5 mm, single inline package SIP module, these DC/DC converters are non-isolated switching regulator for embedded applications. Two nominal output voltages are offered, each with 1.5 Amp maximum output. Based on fixed-frequency buck switching topology, the high efficiency means very low heat and little electrical noise, requiring no external components. The ultra-wide input range is 7 to 36 Volts DC. Protection features include short circuit current limit protection. The OKI-78SR switching regulator is designed to meet all standards approvals. RoHS-6 (no lead) hazardous material compliance is specified as standard.

Features & Benefits

Ultra wide 7 to 36 VDC input range
Fixed Outputs of 3.3 or 5 VDC up to 1.5 Amps
Vertical or horizontal SIP-mount, small footprint package
“No heat sink” direct replacement for 3-terminal 78xx-series linear regulators
High efficiency with no external components
Short circuit protection
Outstanding thermal derating performance

Approvals

UL/EN/IEC 60950-1, 2nd Edition

Murata Power Solutions Non-Isolated DC-DC Converter

The Murata Power Solutions Non-Isolated DC-DC converter is used for the embedded application. It has three nominal output voltage terminals and up to 1.5A is the maximum output. The ultra-wide input range of upto 12VDC. Based on fixed frequency the high efficiency means very low heat and low electrical noise requiring no external component. The fixed single output converters provide both tight regulation and high efficiency directly at power usage site and are direct plug-in instead of linear regulators hence no extra outside component is required

Features and Benefits

• High efﬁciency with no external components
• No heat sink direct replacement for 3-terminal
• Operating temperature is from -40°Cto 85°C
• Outstanding thermal derating performance
• Short circuit protection
• Vertical SIP or horizontal mount, small footprint, in an encapsulated package

Applications

• Control boxes
• Control boxes
• ITE commercials
• ITE commercials

Certifications

• UL certified

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Murata Power Solutions
	Output Voltage	5V dc
	Output Current	1.5A
	Mounting Type	Through Hole
	Number of Outputs	1
	Package	SIP
	Power Rating	7.5W
	Ripple And Noise	75mV Pk-Pk
	Minimum Temperature	-40°C
	Maximum Temperature	+85°C
	Series	OKI-78SR
	Line Regulation	±0.25%
	Width	16.5mm
	Weight	2g
	Depth	7.6mm
	Length	10.4mm
	Load Regulation	±0.25%

	모두 선택
	브랜드 Murata Power Solutions
	Output Voltage 5V dc
	Output Current 1.5A
	Mounting Type Through Hole
	Number of Outputs 1
	Package SIP
	Power Rating 7.5W
	Ripple And Noise 75mV Pk-Pk
	Minimum Temperature -40°C
	Maximum Temperature +85°C
	Series OKI-78SR
	Line Regulation ±0.25%
	Width 16.5mm
	Weight 2g
	Depth 7.6mm
	Length 10.4mm
	Load Regulation ±0.25%
