Murata Power Solutions Non-Isolated DC-DC Converter, 5.2V dc Output Voltage 36V dc, 1.5 A Output Current
- RS 제품 번호:
- 167-6213
- 제조사 부품 번호:
- OKI-78SR-5/1.5-W36H-C
- 제조업체:
- Murata Power Solutions
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (100 units, in trays of 100)*
₩793,440.00
마지막 RS 재고
- 최종적인 1 개 unit(s)이 배송 준비 됨
Tray(s) | Per Tray | 한팩당* |
|---|---|---|
| 1 - 1 | ₩793,440.00 | ₩7,934.00 |
| 2 - 3 | ₩775,980.00 | ₩7,760.00 |
| 4 + | ₩759,320.00 | ₩7,594.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 167-6213
- 제조사 부품 번호:
- OKI-78SR-5/1.5-W36H-C
- 제조업체:
- Murata Power Solutions
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Murata Power Solutions | |
| Output Voltage 1 | 5.2V dc | |
| Product Type | Non-Isolated DC-DC Converter | |
| Output Current | 1.5A | |
| Number of Outputs | 1 | |
| Power | 7.5W | |
| Efficiency | 90.5% | |
| Ripple and Noise | 75mV Pk-Pk | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Number of Pins | 3 | |
| Series | OKI-78SR | |
| Package Type | TO-220 | |
| Line Regulation | ±0.25 % | |
| Depth | 16.5mm | |
| Length | 10.4mm | |
| Standards/Approvals | RoHS | |
| Weight | 2g | |
| Width | 7.6mm | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 7V | |
| Load Regulation | ±0.25 % | |
| MTBF | 78700000h | |
| 모두 선택 | ||
|---|---|---|
브랜드 Murata Power Solutions | ||
Output Voltage 1 5.2V dc | ||
Product Type Non-Isolated DC-DC Converter | ||
Output Current 1.5A | ||
Number of Outputs 1 | ||
Power 7.5W | ||
Efficiency 90.5% | ||
Ripple and Noise 75mV Pk-Pk | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Number of Pins 3 | ||
Series OKI-78SR | ||
Package Type TO-220 | ||
Line Regulation ±0.25 % | ||
Depth 16.5mm | ||
Length 10.4mm | ||
Standards/Approvals RoHS | ||
Weight 2g | ||
Width 7.6mm | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 7V | ||
Load Regulation ±0.25 % | ||
MTBF 78700000h | ||
- COO (Country of Origin):
- CN

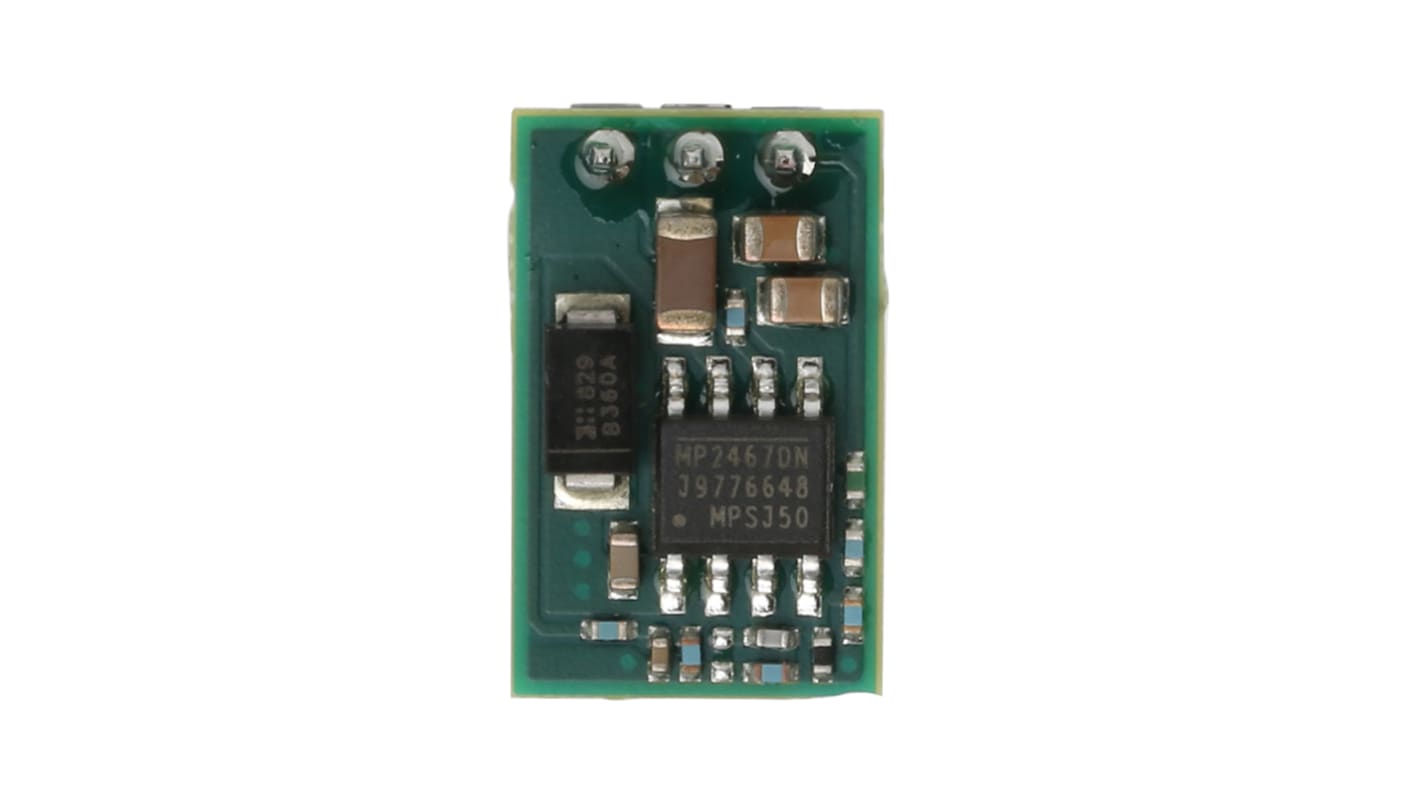

Murata 1.5A Single Output Non-Isolated DC-DC Converter - OKI Series
The Murata PS OKI-78SR Series is built on a 10.4 by 16.5 mm, single inline package SIP module, these DC/DC converters are non-isolated switching regulator for embedded applications. Two nominal output voltages are offered, each with 1.5 Amp maximum output. Based on fixed-frequency buck switching topology, the high efficiency means very low heat and little electrical noise, requiring no external components. The ultra-wide input range is 7 to 36 Volts DC. Protection features include short circuit current limit protection. The OKI-78SR switching regulator is designed to meet all standards approvals. RoHS-6 (no lead) hazardous material compliance is specified as standard.
Features & Benefits
Ultra wide 7 to 36 VDC input range
Fixed Outputs of 3.3 or 5 VDC up to 1.5 Amps
Vertical or horizontal SIP-mount, small footprint package
“No heat sink” direct replacement for 3-terminal 78xx-series linear regulators
High efficiency with no external components
Short circuit protection
Outstanding thermal derating performance
Approvals
UL/EN/IEC 60950-1, 2nd Edition
