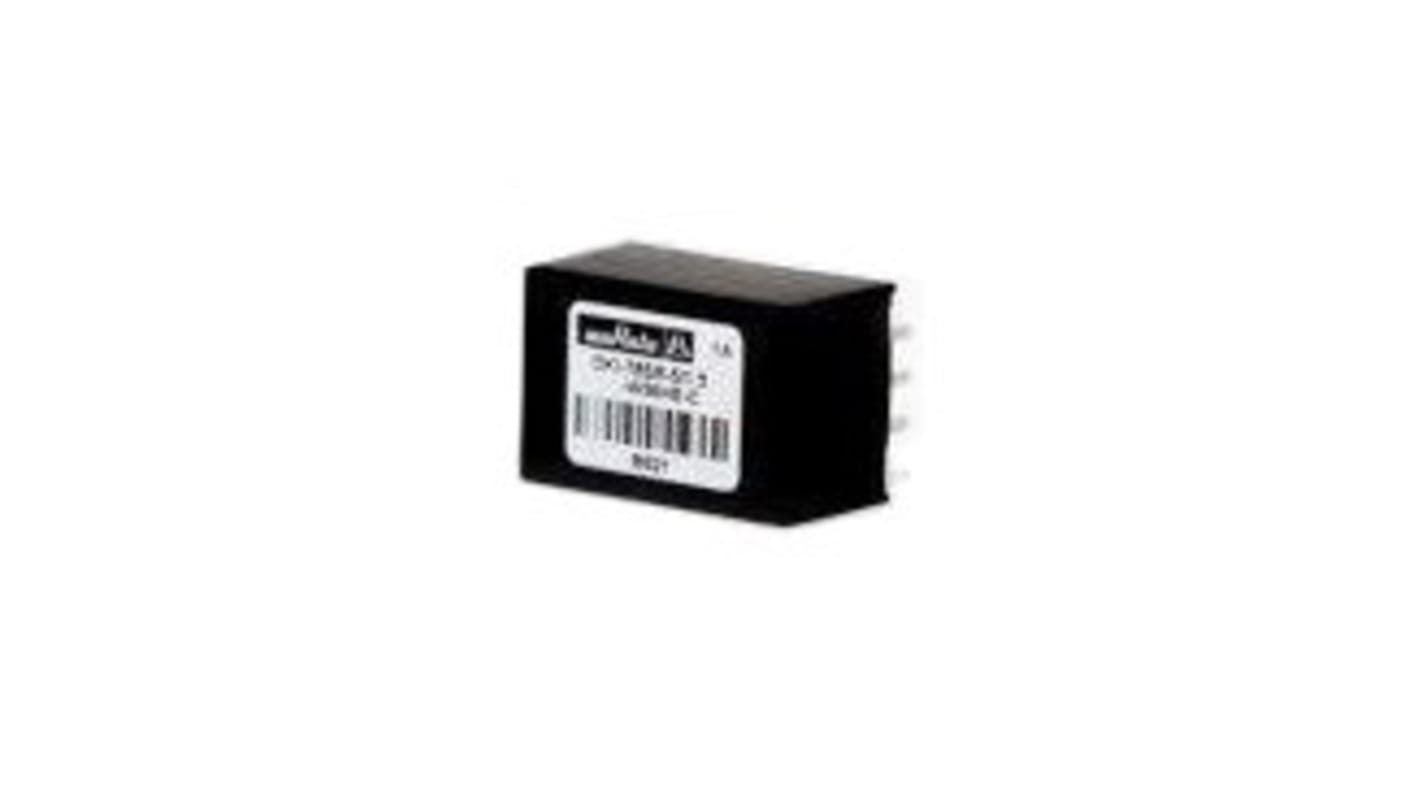

Murata Power Solutions Non-Isolated DC-DC Converter, Through Hole, 5V dc Output Voltage, 12V dc Input Voltage, 1.5A

모든 Switching Regulators 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Box of 126 units)*

₩1,406,860.40

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 1 개 unit(s)이 배송 준비 됨
Box(es)
Per Box
한팩당*
1 - 1₩1,406,860.40₩11,165.32
2 - 3₩1,375,915.60₩10,919.04
4 +₩1,346,362.00₩10,685.92

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
173-6932
제조사 부품 번호:
OKI-78SR-5/1.5-W36HE-C
제조업체:
Murata Power Solutions
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Murata Power Solutions

Output Voltage

5V dc

Output Current

1.5A

Input Voltage

12V dc

Mounting Type

Through Hole

Number of Outputs

1

Package

TO-220

Power Rating

7.5W

Efficiency

90.5%

Ripple And Noise

75mV Pk-Pk

Maximum Temperature

+85°C

Minimum Temperature

-40°C

Series

OKI-78SR

Line Regulation

±0.3%

Protection Features

Short Circuit Protection

Weight

4.5g

Depth

9.5mm

Length

18mm

Maximum Input Current

690mA

Switching Frequency Range

500kHz

Load Regulation

±0.4%

Width

11.9mm

Power Signal Conversion Type

DC-DC

Allowed Circuit Configurations

Parallel

MTBF

78700000h

Rated Output Power

7.5W

COO (Country of Origin):
CN

Murata Power Solutions Non-Isolated DC-DC Converter


The Murata Power Solutions Non-Isolated DC-DC Converter is used for the embedded application. It has three nominal output voltage terminals and up to 1.5A is the maximum output. Based on fixed frequency the high efficiency means very low heat and low electrical noise requiring no external component. The fixed single output converters provide both tight regulation and high efficiency directly at power usage site and are direct plug-in instead of linear regulators hence no extra outside component is required

Features and Benefits


• High efficiency with no external components
• No heat sink direct replacement for 3-terminal
• Operating temperature is from -40°Cto 85°C
• Outstanding thermal derating performance
• Short circuit protection
• Vertical SIP or horizontal mount, small footprint, in an encapsulated package

Applications


• Control boxes
• Control boxes
• ITE commercials
• ITE commercials

Certifications


• UL certified

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
