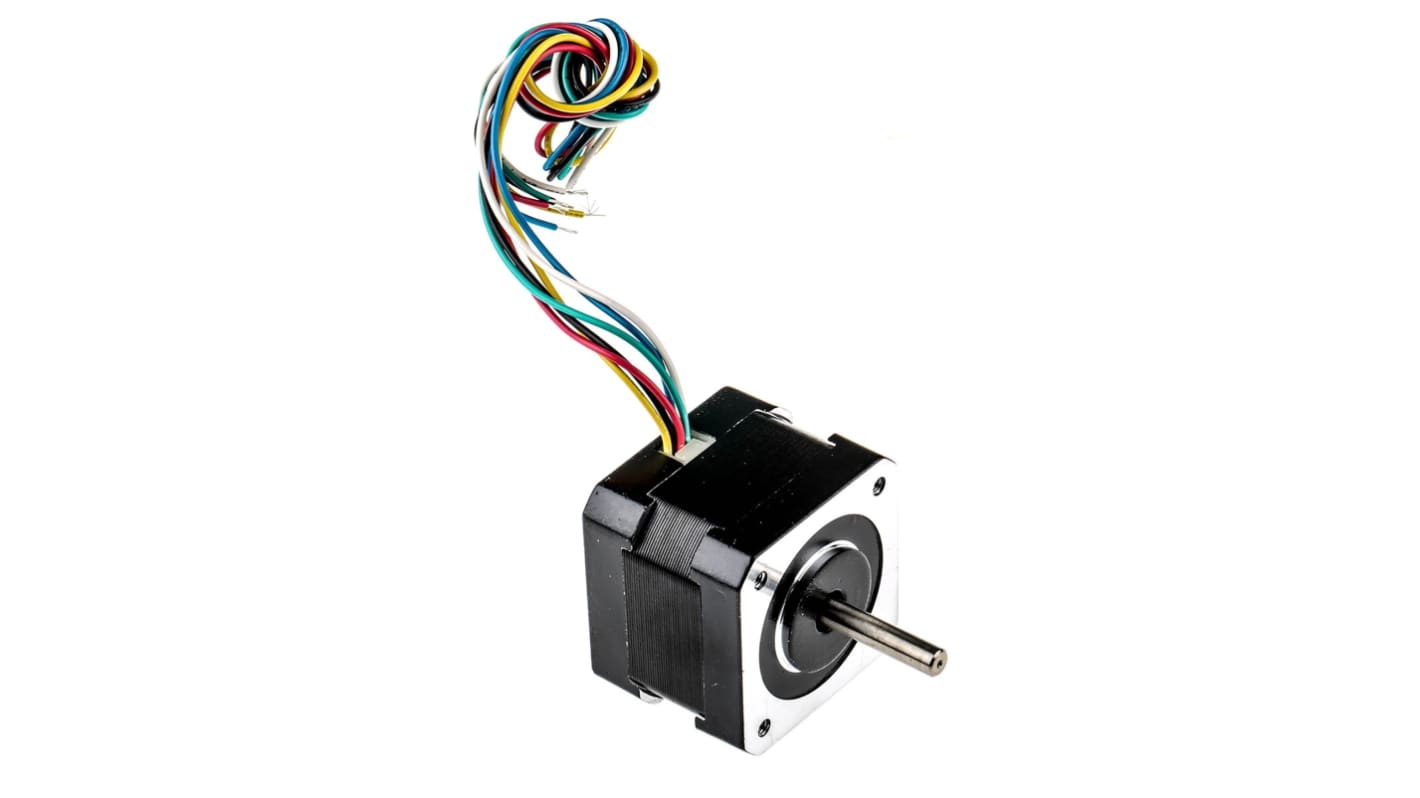

RS PRO Hybrid Stepper Motor 12V, 0.158Nm Torque, 1.8 °, 42.3 x 42.3 mm Frame, 5 mm Shaft

Unipolar hybrid stepper motors from RS PRO are high performance DC motors, perfect for applications requiring precise movement or rotation in steps. They combine characteristics from both VR (variable reluctance) stepper motors and PM (permanent magnet) stepper motors, offering a versatile motor suitable for a range of applications. With RS PRO hybrid stepper motors, high torque can be achieved even with low speeds.

Hybrid technology combining VR and PM motor characteristics

A stepper motor is a type of DC motor with a shaft that turns in precise steps by dividing full rotations via multiple coils that are organised in phases. Stepper motors are ideal for applications requiring discrete and precise torque or movement. These motors offer a variety of driver modes including wave drive, full step, half step and micro-step and can be operated via stepper controllers. Stepper motors are commonly used in applications such as:

This stepper motor features a 1.8° step angle, equivalent to 200 steps per revolution.

The length of the shaft is 22mm.

The max radial force for this model is 28 N (20 MM from front flange).

The max axial force for this model is 10 N.

Unipolar stepper motors operate with a single winding with a center tap per phase. Each section of the winding is switched on for each direction of the magnetic field. Unlike the unipolar stepper motor, the bipolar stepper motor has two leads per phase, neither of which are common.
