WAGO 243 Series Junction Box Connector, 4-Way, 18AWG, 22 AWG Wire, 6A Push Wire
- RS 제품 번호:
- 181-4103
- Distrelec 제품 번호:
- 304-38-880
- 제조사 부품 번호:
- 243-804
- 제조업체:
- WAGO
Subtotal (1 pack of 10 units)*
₩5,680.00
재고있음
- 1,510 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 + | ₩568.00 | ₩5,680.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 181-4103
- Distrelec 제품 번호:
- 304-38-880
- 제조사 부품 번호:
- 243-804
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Product Type | Junction Box Connector | |
| Number of Ways | 4 | |
| Current | 6A | |
| Wire Size | 18, 22AWG | |
| Fused | No | |
| Contact Material | Copper | |
| Material | Copper | |
| Voltage | 150V | |
| Colour | Red | |
| Series | 243 | |
| Termination Type | Push Wire | |
| Minimum Operating Temperature | 60°C | |
| Gender | Female | |
| Enclosed | Yes | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CSA, IEC/EN 60664, RoHS, UL | |
| Hazardous Area Certification | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Product Type Junction Box Connector | ||
Number of Ways 4 | ||
Current 6A | ||
Wire Size 18, 22AWG | ||
Fused No | ||
Contact Material Copper | ||
Material Copper | ||
Voltage 150V | ||
Colour Red | ||
Series 243 | ||
Termination Type Push Wire | ||
Minimum Operating Temperature 60°C | ||
Gender Female | ||
Enclosed Yes | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CSA, IEC/EN 60664, RoHS, UL | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- DE

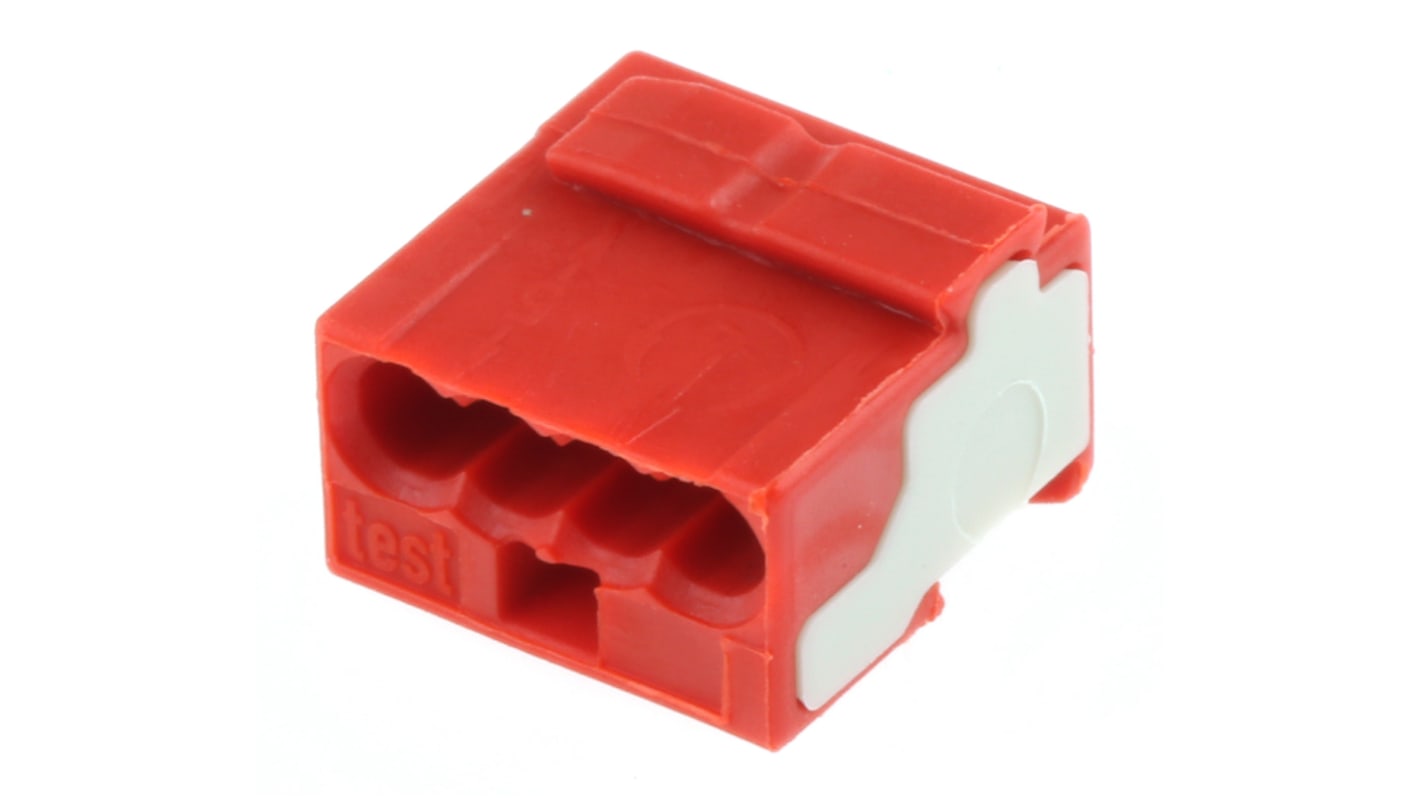

WAGO 243 MICRO PUSH WIRE Series Junction Box Connector, 6 A Current Rating, Push In Termination - 243-804
This junction box connector by WAGO in red colour with a 6A current rating and 4 ways is part of the 243 MICRO PUSH WIRE series, suitable for various electrical applications. The connector ensures a secure connection with its push wire termination method and can handle up to 150V voltage rating with a wire size range of 22-20 AWG.
Features & Benefits
• Secure connection using push wire terminal block technology
• Versatile usage in various electrical applications
• Reliable performance with 150V voltage rating
• Accommodates wire sizes from 22-20 AWG
Applications
• Suitable for connecting multiple wires securely
• Ideal for use in junction boxes and control panels
Can it accommodate different wire sizes?
Yes, it can handle wire sizes from 22-20 AWG easily.
Is it suitable for use in control panels?
Yes, this connector is ideal for use in control panels for secure wiring connections.
Will it work for connecting multiple wires in a junction box?
Yes, the 4-way design of this connector is reliable for connecting multiple wires in a junction box.
Approvals
UL and CSA
