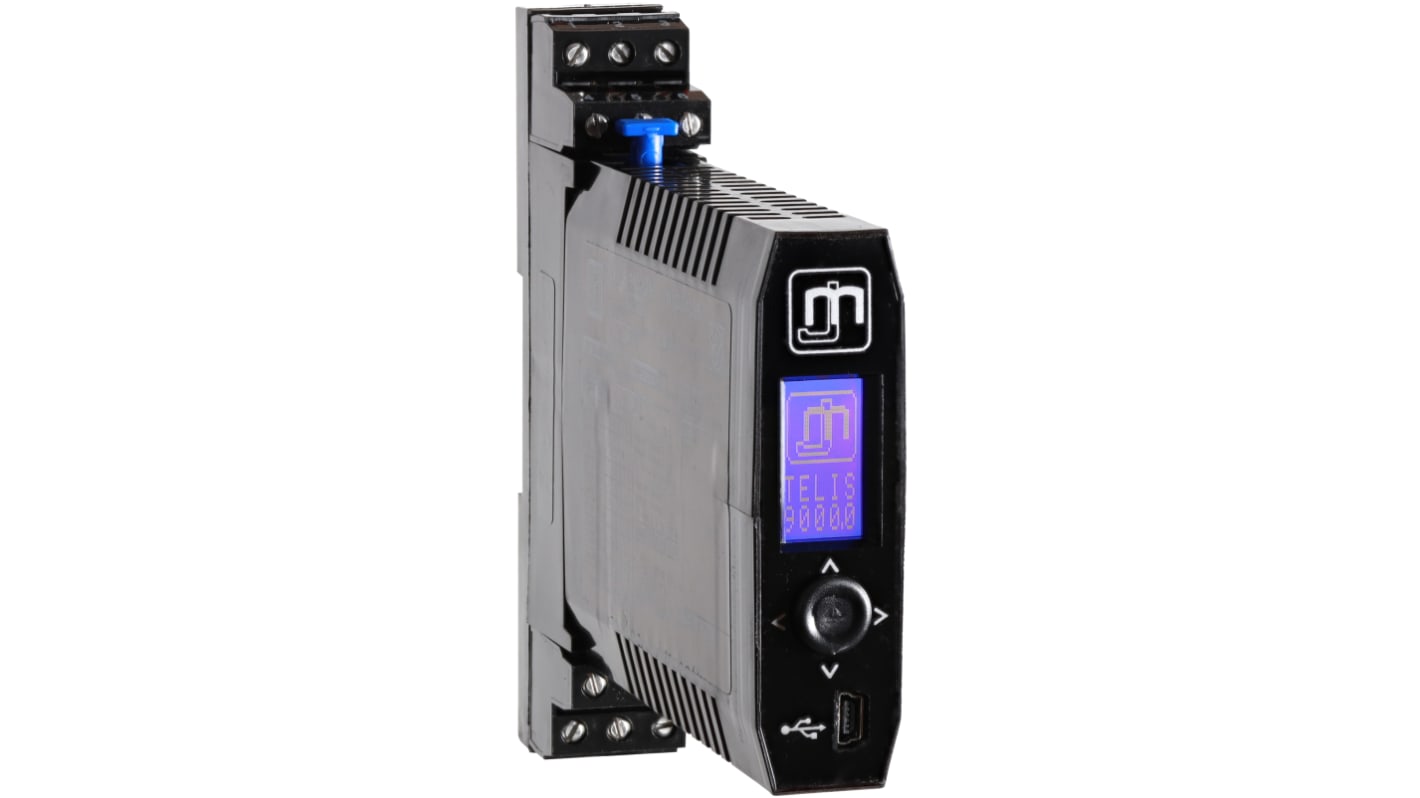

JM CONCEPT TELIS 1000 Series Isolating Signal Converter, Strain Gauge Input, Current/Voltage Output, 230 V ac, 90 V ac,

Subtotal (1 unit)*

₩612,842.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 11월 23일 부터 15 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩612,842.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
232-5972
제조사 부품 번호:
TELIS1000U1
제조업체:
JM CONCEPT
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

JM CONCEPT

Product Type

Isolating Signal Converter

Input Signal Type

Strain Gauge

Output Signal Type

Current/Voltage

Input Range

Standard scales: ±18 mv, ±35mv , ±75mv , ±150mv, ±300mv , ±600mv , ±1V , ±2V,

Supply Voltage

230V ac, 90V ac, 22V ac, 240V ac

Hazardous Area Certification

No

Mount Type

Wire

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-10°C

IP Rating

IP20

Standards/Approvals

CE, RoHS

Series

TELIS 1000

COO (Country of Origin):
FR
The JM CONCEPT Isolated Converter (quadruple galvanic isolation) is dedicated to the measurements of Strain-gauges. It has 24-bit conversion for inputs and 16-bit for outputs. It has RS485 USB communication with 22.5mm case width.

Display type LCD backlit

Display colour blue

Number of characters 5

Numbers of lines 5

Programming joystick 5 positions
