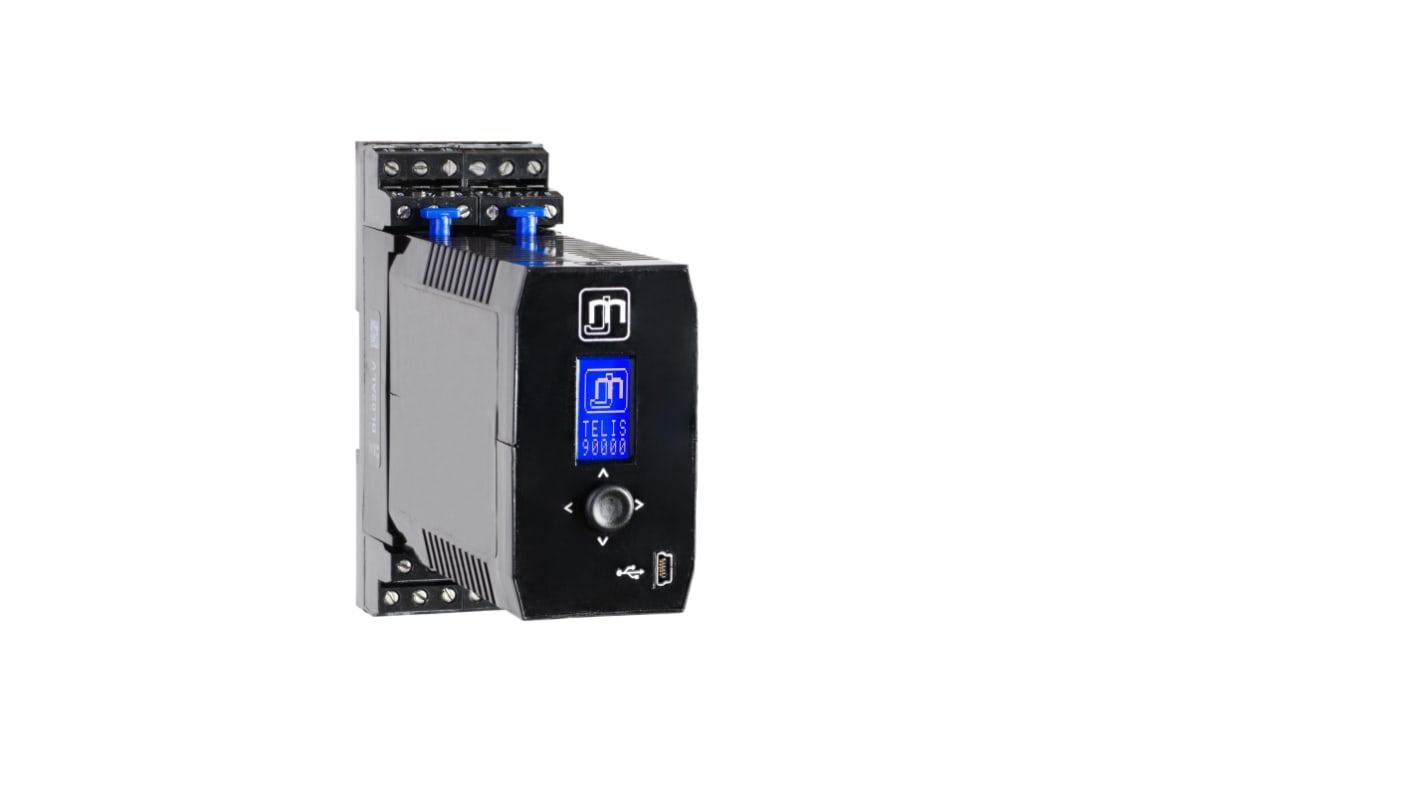

JM CONCEPT TELIS 9000 Series Universal Signal Converter, Current, Potentiometer, RTD, Linear Resistance, Thermocouple
- RS 제품 번호:
- 232-8239
- 제조사 부품 번호:
- TELIS9200U1
- 제조업체:
- JM CONCEPT
Subtotal (1 unit)*
₩760,660.00
일시적 품절
- 2026년 12월 04일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩760,660.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 232-8239
- 제조사 부품 번호:
- TELIS9200U1
- 제조업체:
- JM CONCEPT
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | JM CONCEPT | |
| Product Type | Universal Signal Converter | |
| Input Signal Type | Current, Potentiometer, RTD, Linear Resistance, Thermocouple | |
| Output Signal Type | Current, Voltage, Relay | |
| Input Range | Mo, Ni100, Ni1000, P, PT100, PT1000, TC-B, TC-E, TC-J, TC-K, TC-N, TC-R, TC-S, TC-T, W3/D, W5/C, 0 → 100kohm, 0 → 100ohm, -2 → 11V, -22 → 22mA, -100mv → +100mV, -1000 → 1000 | |
| Supply Voltage | 22V, 230V, 240V, 90V | |
| Hazardous Area Certification | No | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| IP Rating | IP20 | |
| Standards/Approvals | CE, RoHS | |
| Series | TELIS 9000 | |
| 모두 선택 | ||
|---|---|---|
브랜드 JM CONCEPT | ||
Product Type Universal Signal Converter | ||
Input Signal Type Current, Potentiometer, RTD, Linear Resistance, Thermocouple | ||
Output Signal Type Current, Voltage, Relay | ||
Input Range Mo, Ni100, Ni1000, P, PT100, PT1000, TC-B, TC-E, TC-J, TC-K, TC-N, TC-R, TC-S, TC-T, W3/D, W5/C, 0 → 100kohm, 0 → 100ohm, -2 → 11V, -22 → 22mA, -100mv → +100mV, -1000 → 1000 | ||
Supply Voltage 22V, 230V, 240V, 90V | ||
Hazardous Area Certification No | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
IP Rating IP20 | ||
Standards/Approvals CE, RoHS | ||
Series TELIS 9000 | ||
- COO (Country of Origin):
- FR
The JM CONCEPT Universal Input Converter comes with quadruple galvanic isolation, 24-bit conversion for inputs and 16-bit conversion for outputs, and accurate cold junction compensation at ± 1°C for thermocouple inputs.
Precision class 0,1
Input analog / digital conversion 24 bits
Output analog / digital conversion 16 bit
Thermal drift <25ppm
Residual ripple on current output <20μA
Residual ripple on voltage output <10mV
