Phoenix Contact RFC 480S PN 4TX Series Safety Controller, 24V dc

RS 제품 번호:: 239-5121
Distrelec 제품 번호:: 302-39-117
제조사 부품 번호:: 2404577
제조업체:: Phoenix Contact

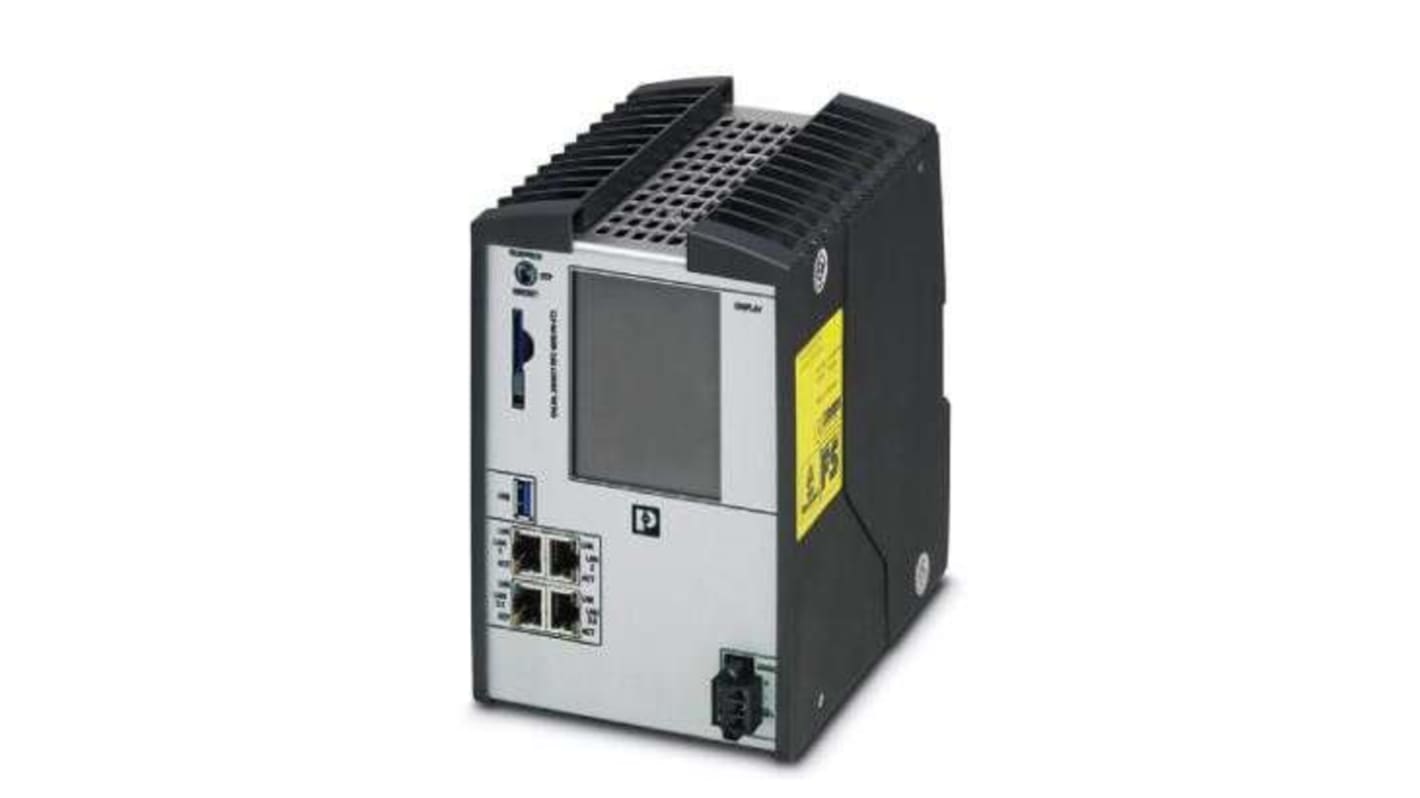

Phoenix Contact RFC 480S PN 4TX Series Safety Controller, 24V dc

사용할 수 없음

RS는 더 이상 이 제품을 입고하지 않습니다.

RS 제품 번호:: 239-5121
Distrelec 제품 번호:: 302-39-117
제조사 부품 번호:: 2404577
제조업체:: Phoenix Contact

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Phoenix Contact
	Product Type	Safety Controller
	Series	RFC 480S PN 4TX
	Display Type	LCD
	Mount Type	DIN Rail
	Supply Voltage	24V dc
	Number of I/Os	1
	Standards/Approvals	EN, IEC, RoHS, REACH
	Depth	71.5mm
	Width	48.8mm
	IP Rating	IP20

	모두 선택
	브랜드 Phoenix Contact
	Product Type Safety Controller
	Series RFC 480S PN 4TX
	Display Type LCD
	Mount Type DIN Rail
	Supply Voltage 24V dc
	Number of I/Os 1
	Standards/Approvals EN, IEC, RoHS, REACH
	Depth 71.5mm
	Width 48.8mm
	IP Rating IP20

Datasheet - 2404577

COO (Country of Origin):: DE

The Phoenix Contact remote field controller with 4 x 10/100/1000 Ethernet. It has IP20 degree of protection and pluggable parameterization memory. The operation of devices with the latest PROFIsafe profile. It can communicate in up to three separate subnets.

Interface USB

Number 1

Connection method USB type A, male connector

Interface Ethernet

Power supply connection Screw terminal blocks, plug-in

Typical current consumption 1 A

Supply voltage 24 V DC

Supply voltage range 19.2 V DC ... 30 V DC (including ripp

Phoenix Contact RFC 480S PN 4TX Series Safety Controller, 24V dc
