Omron Tension/Gripper, ER1022 Series
- RS 제품 번호:
- 214-6706
- 제조사 부품 번호:
- 44506-4700 SM06-TG00
- 제조업체:
- Omron
Subtotal (1 unit)*
₩149,506.50
일시적 품절
- 2026년 5월 19일 부터 99 개 단위 배송
- 추가로 2026년 6월 16일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩149,506.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 214-6706
- 제조사 부품 번호:
- 44506-4700 SM06-TG00
- 제조업체:
- Omron
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Omron | |
| Accessory Type | Tension/Gripper | |
| Product Type | Rope Tensioner System Component | |
| Series | ER1022 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Omron | ||
Accessory Type Tension/Gripper | ||
Product Type Rope Tensioner System Component | ||
Series ER1022 | ||

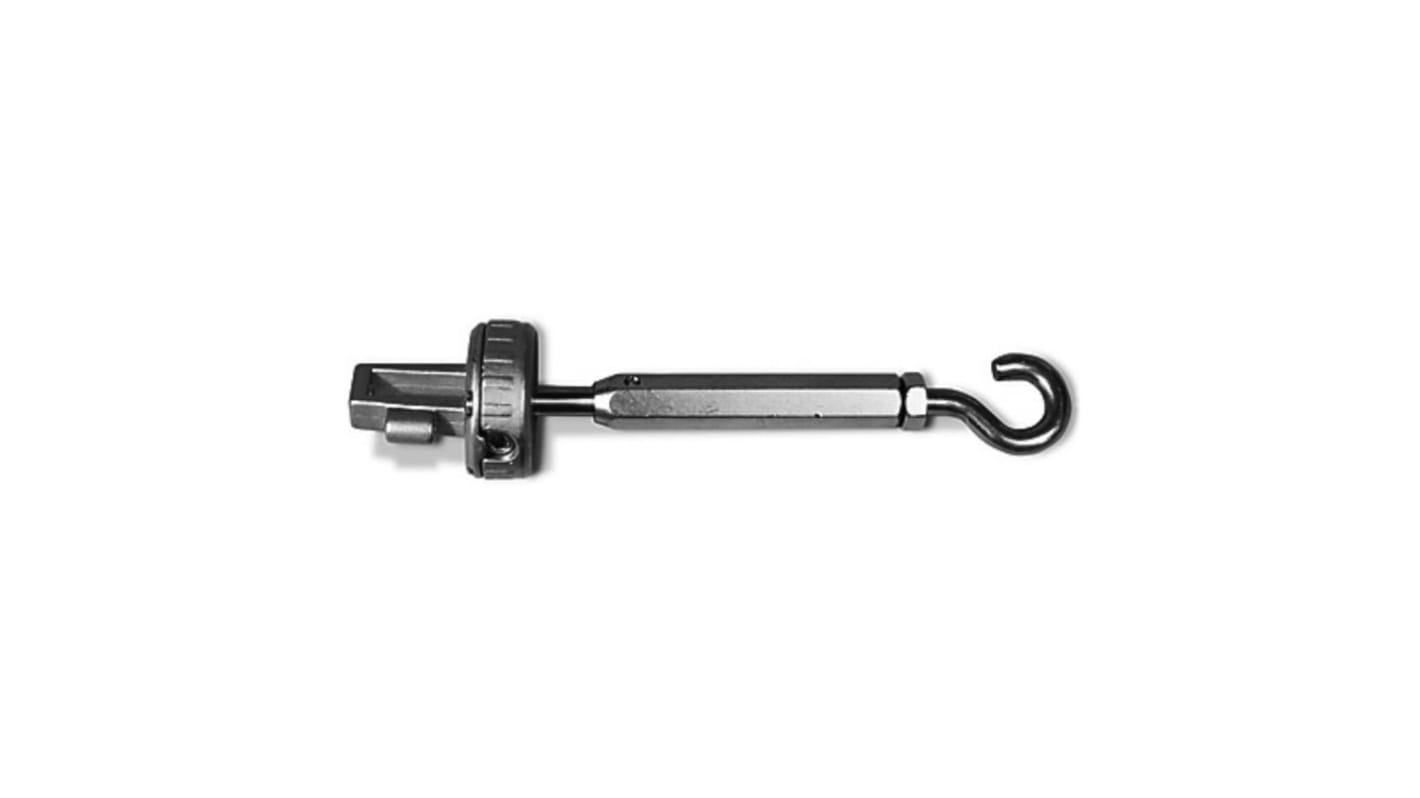

Omron ER1022 Series Rope Tensioner System Component, Tension/Gripper Accessory Type - 44506-4700 SM06-TG00
This rope tensioner system component provides a stainless‑steel gripper used to set and maintain rope tension in long‑span safety rope installations. Designed for industrial automation and machinery safety environments, it integrates with rope‑pull emergency‑stop arrangements to deliver consistent tensioning and simple field servicing.
Features & Benefits
• Max rope span 125 m supports extensive protection coverage
• Tensioning force to run position 130 N typical for reliable actuation
• Stainless‑steel construction resists corrosion in wash‑down areas
• Mounting with M5 screws ensures secure, repeatable fixing
• Vibration‑tolerant operation reduces nuisance tripping
• Compatible with 4N/C + 2N/O switch configurations for safety circuits
• Tensioning force to run position 130 N typical for reliable actuation
• Stainless‑steel construction resists corrosion in wash‑down areas
• Mounting with M5 screws ensures secure, repeatable fixing
• Vibration‑tolerant operation reduces nuisance tripping
• Compatible with 4N/C + 2N/O switch configurations for safety circuits
**Applications**
• Suitable for conveyor‑system perimeter guarding in factories
• Ideal for use around rotating machinery hazard zones
• Used with emergency rope‑pull stop installations across long runs
• Can be used for automated line‑stop systems in assembly plants
• Ideal for use around rotating machinery hazard zones
• Used with emergency rope‑pull stop installations across long runs
• Can be used for automated line‑stop systems in assembly plants
What environmental conditions can this unit withstand?
The component is built to IP67, allowing water wash‑down cleaning and operation between −25 to 80 °C.
How is rope support arranged for long installations?
Eyebolts or supports are recommended every ≤3 m with rope supports no more than 500 mm from the switch attachment point.
What mounting and hardware requirements exist?
Fixing requires four M5 screws tightened to a specified torque and appropriate M20 wiring entries for cable glands.
How does the device help maintain correct rope tension?
The gripper works with a tension indicator and spring/turnbuckle hardware to set mid‑position tension and allow routine re‑tensioning.
What electrical switching capability should be expected?
The assembly interfaces with safety contacts rated for inductive switching at AC up to 240 V/3 A and DC at 24 V/2.5 A.
