RF Solutions RIoT-SENW-THUM-8T1 Remote Control Fob, 868 MHz
- RS 제품 번호:
- 218-8381
- 제조사 부품 번호:
- RIoT-SENW-THUM-8T1
- 제조업체:
- RF Solutions
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 218-8381
- 제조사 부품 번호:
- RIoT-SENW-THUM-8T1
- 제조업체:
- RF Solutions
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RF Solutions | |
| Product Type | Remote Control Fob | |
| Frequency | 868MHz | |
| Modulation | FM | |
| Nominal Supply Voltage | 3 V dc | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 54°C | |
| Range | 1000 m | |
| Height | 92mm | |
| Width | 92 mm | |
| Standards/Approvals | RoHS | |
| Depth | 59mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RF Solutions | ||
Product Type Remote Control Fob | ||
Frequency 868MHz | ||
Modulation FM | ||
Nominal Supply Voltage 3 V dc | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 54°C | ||
Range 1000 m | ||
Height 92mm | ||
Width 92 mm | ||
Standards/Approvals RoHS | ||
Depth 59mm | ||
- COO (Country of Origin):
- GB

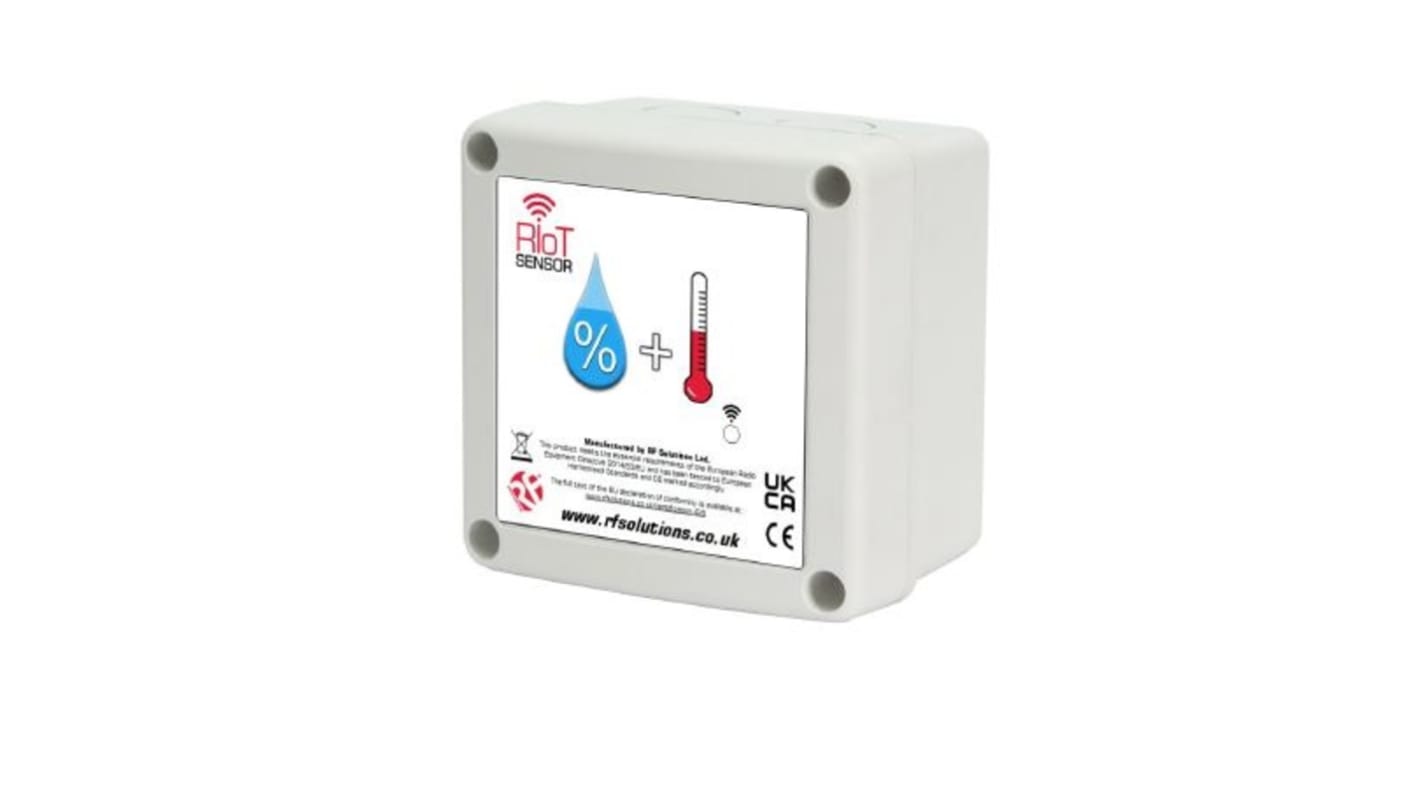

The RF Solutions temperature and humidity sensor measures and then auto RF transmits at the users preset time interval or if a preset trigger level is reached. It is used in conjunction with the RIOT minihub the user can view the temperature measurement on a smartphone/PC via the internet anywhere in the world.
Auto activation alert messages
Auto trigger to local RF receiver
RF FM or LoRa spread spectrum
FM range upto 1Km
Screw terminal connections
