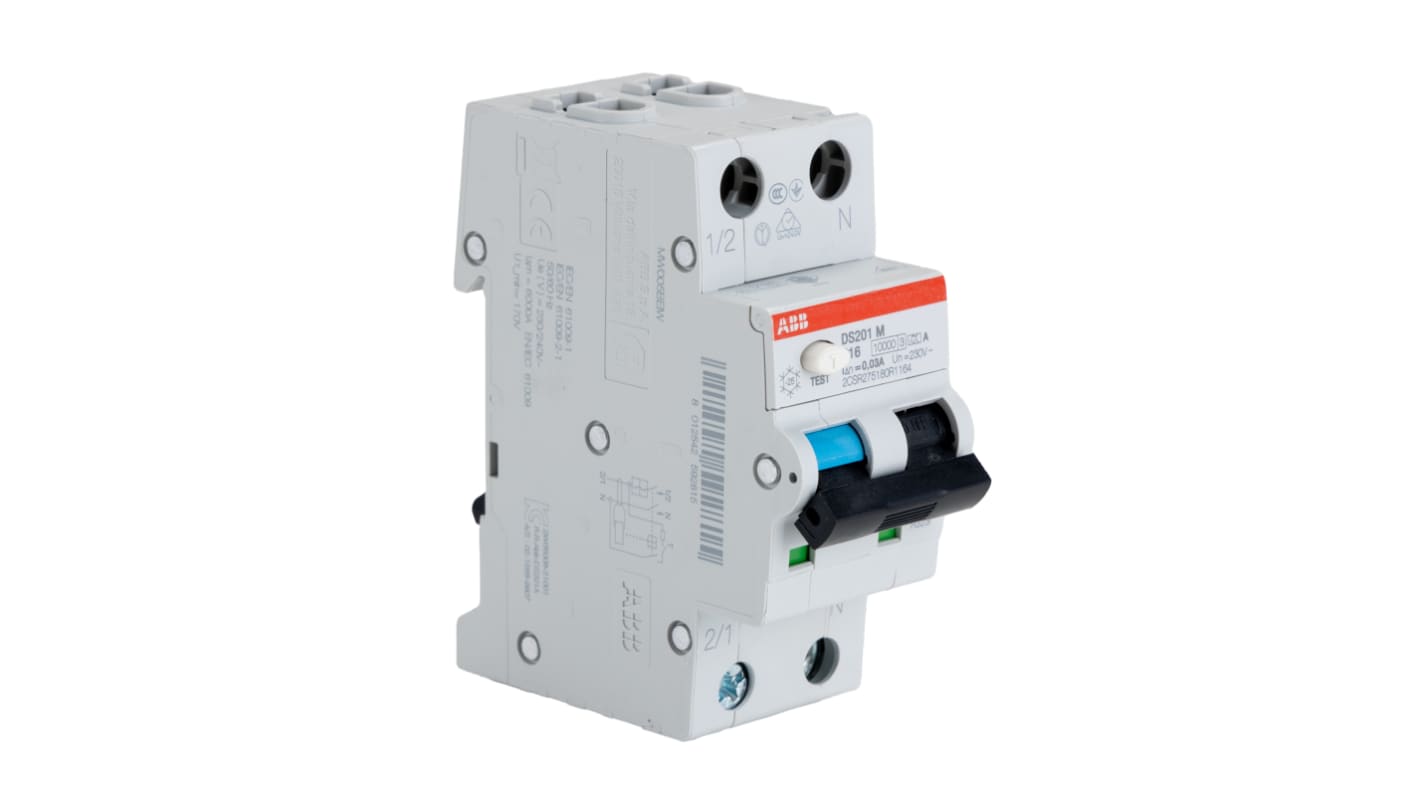

ABB RCBO, 16A Current Rating, 240V Rated AC Voltage - 2CSR275180R1164 DS201 M C16A30

This RCBO is designed for circuit protection against overloads and short-circuits. Measuring 35x85x69mm, it effectively safeguards single-phase circuits while providing protection against earth fault currents. Rated at 16A with a breaking capacity of 10 kA, this circuit breaker is suitable for applications prioritising electrical safety.

Features & Benefits

• Type C tripping characteristic for handling moderate overloads
• 2-pole configuration provides dual protection
• 10 kA breaking capacity for reliability under fault conditions
• Rated voltage of 240V compatible with standard domestic circuits
• Screw terminal connections facilitate secure wiring and installation
• Compact design allows for easy DIN rail mounting

Applications

• Applicable in residential electrical installations for enhanced safety
• Suitable for safeguarding appliances subject to overload
• Designed for commercial environments needing dependable circuit protection
• Utilised in automation systems to maintain circuit integrity

Can it protect against both overload and short-circuit currents?

Yes, it provides protection against both overloads and short-circuits.

Will it fit standard DIN rail installations?

Yes, it is intended for straightforward DIN rail mounting.

Can it handle direct pulsating earth fault currents?

Yes, it protects against both sinusoidal alternating and direct pulsating earth fault currents.

Is it easy to wire during installation?

Yes, the screw terminal design makes the wiring process easier.

모두 선택	제품 정보	값
	브랜드	ABB
	Current Rating	16A
	Range	System Pro M Compact
	Number of Poles	2
	Trip Sensitivity	30mA
	Series	DS201
	Circuit Breaker Type	RCBO
	Tripping Characteristics	Type C
	Rated AC Voltage	240V
	Mounting Style	DIN Rail Mount
	Overall Depth	69mm
	Breaking Capacity at Maximum Voltage Rating	10 kA
	Overall Length	69mm
	Terminal Contact Type	Screw
	Reset Actuator Type	Toggle Switch
	Overall Dimensions	35 x 85 x 69mm
	Overall Width	35mm

	모두 선택
	브랜드 ABB
	Current Rating 16A
	Range System Pro M Compact
	Number of Poles 2
	Trip Sensitivity 30mA
	Series DS201
	Circuit Breaker Type RCBO
	Tripping Characteristics Type C
	Rated AC Voltage 240V
	Mounting Style DIN Rail Mount
	Overall Depth 69mm
	Breaking Capacity at Maximum Voltage Rating 10 kA
	Overall Length 69mm
	Terminal Contact Type Screw
	Reset Actuator Type Toggle Switch
	Overall Dimensions 35 x 85 x 69mm
	Overall Width 35mm

ABB RCBO, 16A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range
