Schneider Electric Harmony XB5 Series Push Button, Panel Mount, 22mm Cutout, SPST
- RS 제품 번호:
- 815-4124
- Distrelec 제품 번호:
- 303-02-546
- 제조사 부품 번호:
- XB5AA61
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩22,842.00
재고있음
- 180 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩22,842.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 815-4124
- Distrelec 제품 번호:
- 303-02-546
- 제조사 부품 번호:
- XB5AA61
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Illuminated | No | |
| Panel Cut Out Diameter | 22mm | |
| Series | Harmony XB5 | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Blue | |
| Contact Configuration | SPST | |
| Push Button Style | Round | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Manufacturer Part No. | XB5AA61 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Terminal Type | Screw | |
| Maximum AC Voltage | 600V | |
| Maximum DC Voltage | 600V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Illuminated No | ||
Panel Cut Out Diameter 22mm | ||
Series Harmony XB5 | ||
Mounting Type Panel Mount | ||
Push Button Colour Blue | ||
Contact Configuration SPST | ||
Push Button Style Round | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Manufacturer Part No. XB5AA61 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Terminal Type Screw | ||
Maximum AC Voltage 600V | ||
Maximum DC Voltage 600V | ||
- COO (Country of Origin):
- FR

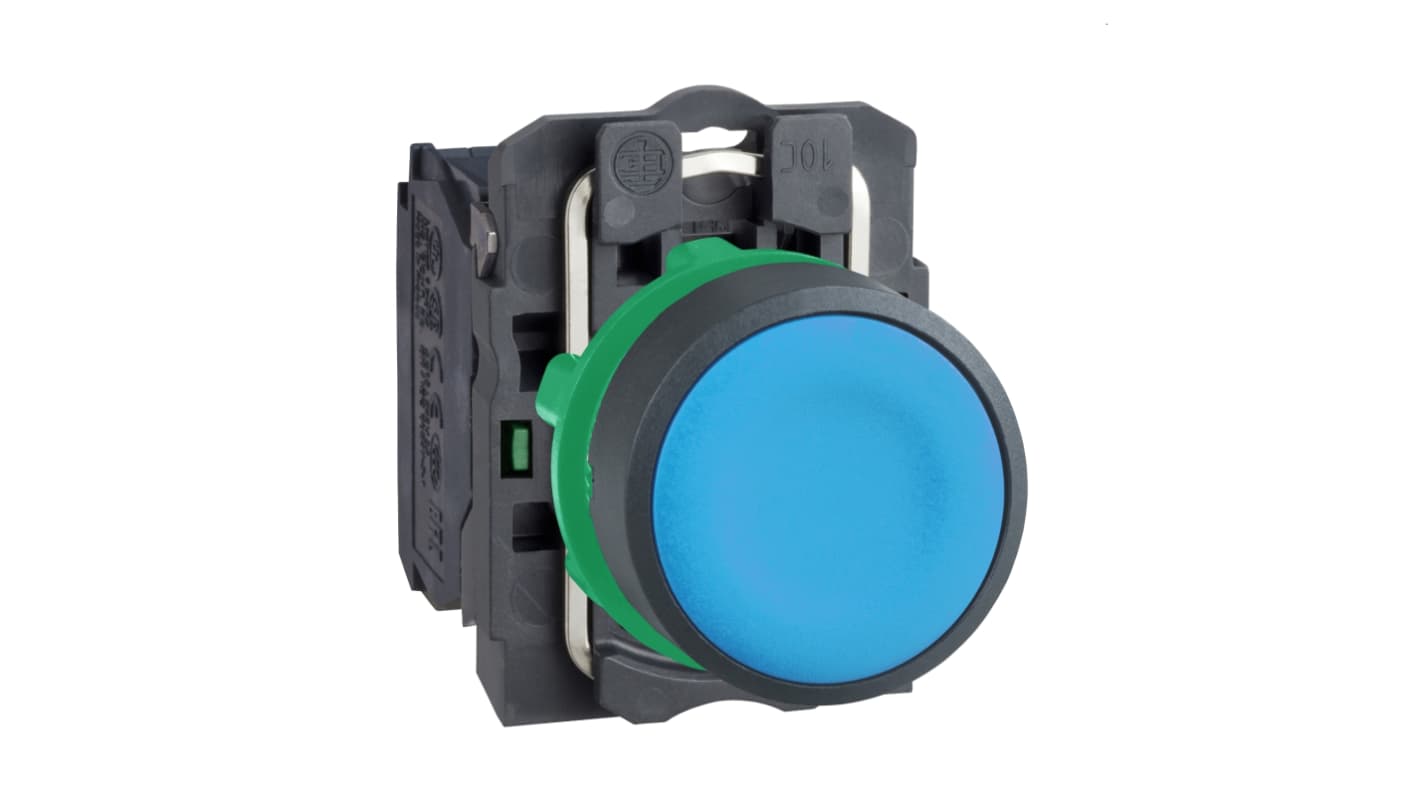

Schneider Electric Harmony XB5 Series Push Button, 22mm Panel Cut Out Diameter, SPST Contact Configuration - XB5AA61
This is a robust push button designed for panel mounting, featuring a 22mm diameter and spring return operation. The blue flush design is perfect for a variety of industrial applications. With its durable plastic construction, this push button combines reliability with a sleek aesthetic, making it suitable for harsh environments.
Features & Benefits
• IP66, IP67, IP69K ratings ensure protection against water and dust
• Capable of operating at voltages up to 600V for versatility
• Designed to handle a contact current rating of 6A
• Spring return operation allows for easy reset after activation
• Compatible with screw clamp terminals for secure connections
• Mechanical durability of 10 million cycles enhances longevity
• Capable of operating at voltages up to 600V for versatility
• Designed to handle a contact current rating of 6A
• Spring return operation allows for easy reset after activation
• Compatible with screw clamp terminals for secure connections
• Mechanical durability of 10 million cycles enhances longevity
Applications
• Used in control panels for automation equipment
• Suitable for machinery that requires reliable operator inputs
• Ideal for needing weatherproof components
• Commonly employed in heavy-duty electrical installations
• Suitable for machinery that requires reliable operator inputs
• Ideal for needing weatherproof components
• Commonly employed in heavy-duty electrical installations
What types of environments can this product operate in?
It can function effectively in environments with temperatures ranging from -40°C to +70°C, making it adaptable in both extremely cold and hot conditions.
How is the push button connected in an electrical setup?
The device uses screw clamp terminals, allowing connections for up to 2 x 1.5 mm² cables, making wiring straightforward in various applications.
What is the expected lifespan of this push button?
This button offers a mechanical durability of 10 million cycles, indicating a very long operational life before any significant wear occurs.
Is this push button suitable for high-pressure cleaning environments?
Yes, with its high-pressure washer resistance rated at 7,000,000 Pa, it is well suited for environments subjected to rigorous cleaning.
