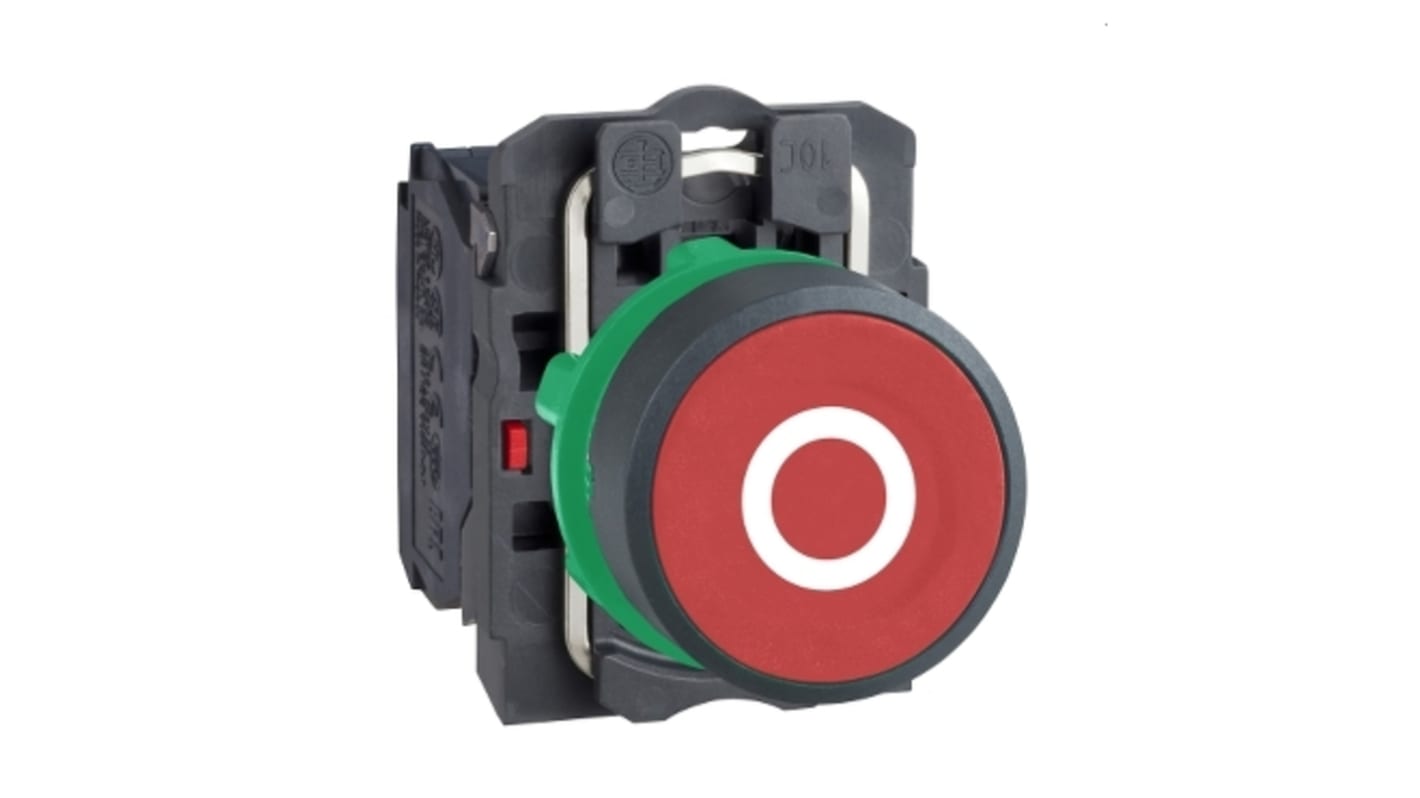

Schneider Electric Harmony Series Push Button Switch, Spring Return, Panel, 22 mm Cutout, SPST, Red LED
- RS 제품 번호:
- 815-4120
- 제조사 부품 번호:
- XB5AA4322
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩38,707.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩38,707.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS 제품 번호:
- 815-4120
- 제조사 부품 번호:
- XB5AA4322
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Actuator Colour | Red | |
| Switch Operation | Spring Return | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | Harmony | |
| Panel Cutout Size | 22 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| LED Colour | Red | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Actuator Style | Round | |
| Maximum Operating Temperature | 70°C | |
| Switch Configuration | 1 NC | |
| Height | 42mm | |
| Switch Contact Current | 10A | |
| Width | 30mm | |
| Standards/Approvals | UL 508, EN/IEC 60947-5-1, EN/IEC 60947-5-4JIS C8201-5-1EN/IEC 60947-1JIS C8201-1, CSA C22.2 No. 14 | |
| Length | 52mm | |
| Better World Claim | Repairable by the End User | |
| Better World Product | Yes | |
| Legend | Symbol | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Actuator Colour Red | ||
Switch Operation Spring Return | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series Harmony | ||
Panel Cutout Size 22 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
LED Colour Red | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Actuator Style Round | ||
Maximum Operating Temperature 70°C | ||
Switch Configuration 1 NC | ||
Height 42mm | ||
Switch Contact Current 10A | ||
Width 30mm | ||
Standards/Approvals UL 508, EN/IEC 60947-5-1, EN/IEC 60947-5-4JIS C8201-5-1EN/IEC 60947-1JIS C8201-1, CSA C22.2 No. 14 | ||
Length 52mm | ||
Better World Claim Repairable by the End User | ||
Better World Product Yes | ||
Legend Symbol | ||
- COO (Country of Origin):
- FR
XB5 AA pulse pushbuttons
XB5 series pulse push-buttons
Approvals
UL, CSA, IEC, CE, JIS, NEMA
