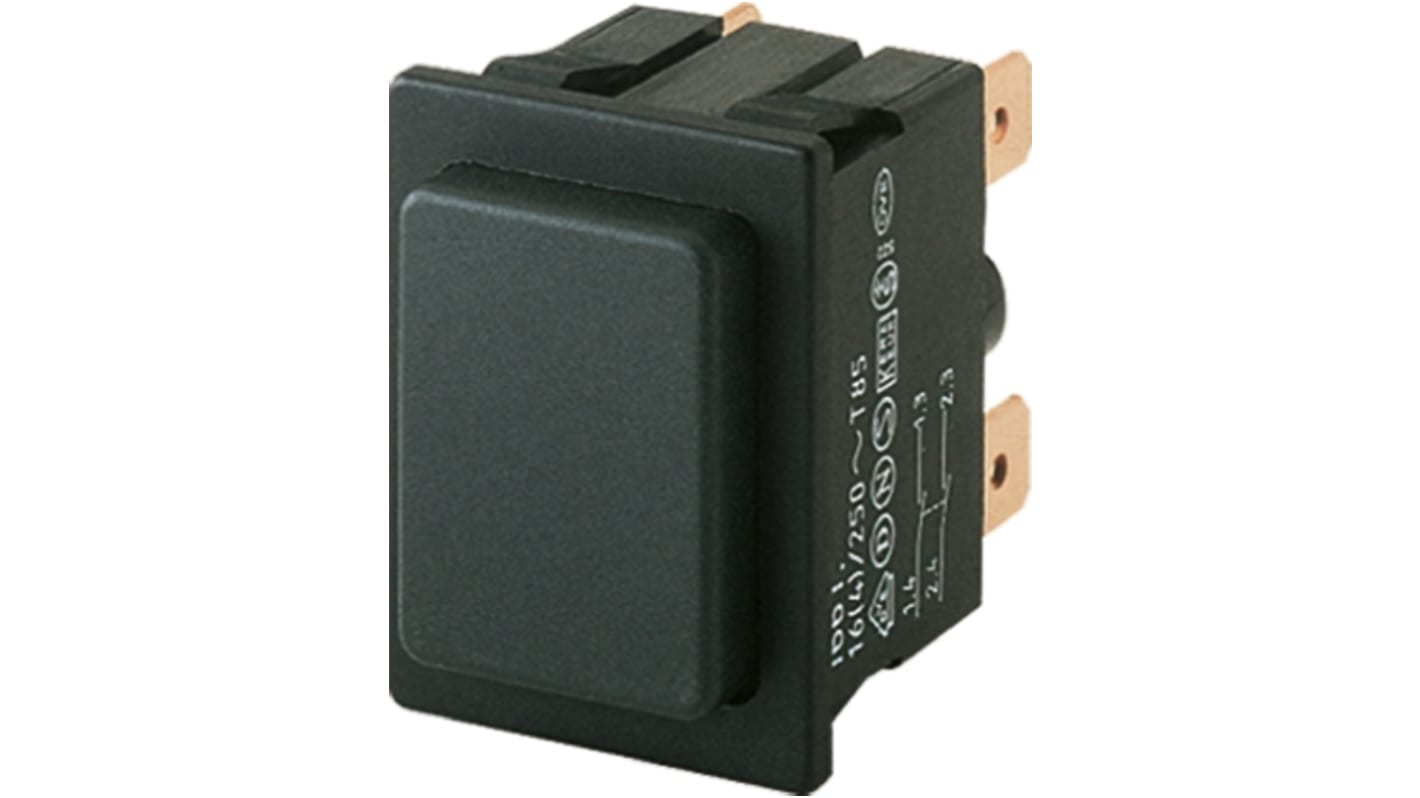

Marquardt Push Button Switch, Momentary, Panel Mount, DPDT, IP40
- RS 제품 번호:
- 741-0760
- Distrelec 제품 번호:
- 135-03-715
- 제조사 부품 번호:
- 1663.0101
- 제조업체:
- Marquardt
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 unit)*
₩24,346.00
재고있음
- 182 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩24,346.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 741-0760
- Distrelec 제품 번호:
- 135-03-715
- 제조사 부품 번호:
- 1663.0101
- 제조업체:
- Marquardt
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Marquardt | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Black | |
| Contact Configuration | Double Pole Double Throw (DPDT) | |
| Push Button Style | Rectangular | |
| IP Rating | IP40 | |
| Contact Current Rating | 12 A @ 250 V ac | |
| Contact Material | Silver | |
| Manufacturer Part No. | 1663.0101 | |
| Case Colour | Black | |
| Panel Cut Out Width | 30.4mm | |
| Terminal Type | Tab | |
| Panel Cut Out Height | 22.2mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Marquardt | ||
Switch Operation Momentary | ||
Illuminated No | ||
Mounting Type Panel Mount | ||
Push Button Colour Black | ||
Contact Configuration Double Pole Double Throw (DPDT) | ||
Push Button Style Rectangular | ||
IP Rating IP40 | ||
Contact Current Rating 12 A @ 250 V ac | ||
Contact Material Silver | ||
Manufacturer Part No. 1663.0101 | ||
Case Colour Black | ||
Panel Cut Out Width 30.4mm | ||
Terminal Type Tab | ||
Panel Cut Out Height 22.2mm | ||
- COO (Country of Origin):
- TN
Marquardt 1660 Series Push Button Switches
Marquardt 1660 series single and double pole push button switches. The 1660 push button switches are suitable for use in Class II appliances and are available with non illuminated or illuminated (amber or green) 230Vac neon actuators. The Marquardt 1660 push button series have silver contacts with SPNO, DPNO, DPDT and DPST switching formats. A transparent PVC cover is available to protect the 1660 series of push button switches from dust and water ingression and to give the push button switch actuator an IP64 rating.
Contact distance ≥3mm (apart from stock number 741-0760 which has a contact distance less than 3mm)
Operating force approximately 8N
UL 94 V-2 flammability
Mechanical life 50,000 operations
Stock number 907-0348 would be the correct lamp in red
907-0342 is the green version
Note
See stock number 607-7731 for a suitable splashproof PVC cover.
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
Approvals
UL; CSA; VDE; ENEC
