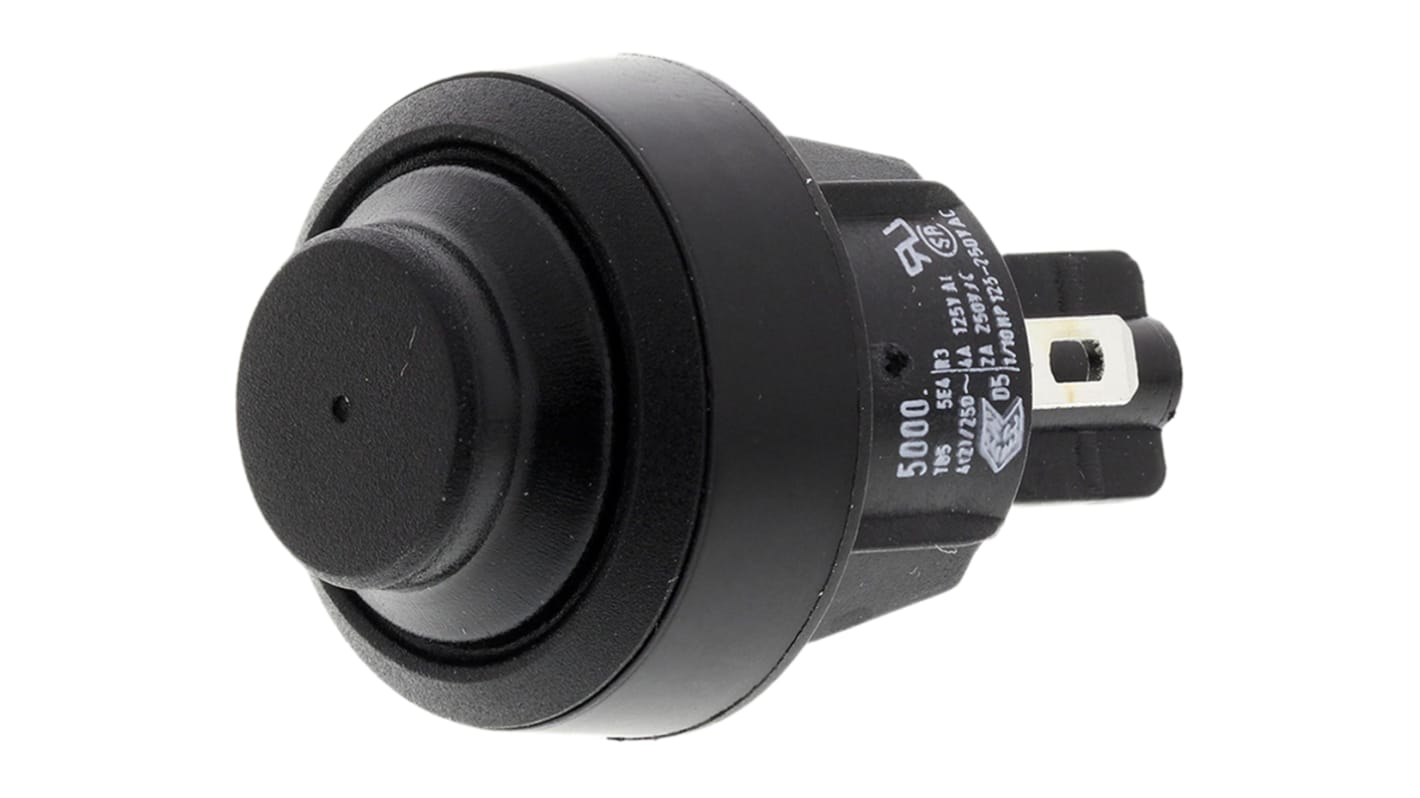

Marquardt 5000 Series Push Button Switch, Momentary, Snap-in, 16 mm Cutout, SPST, IP54, IP40

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩6,523.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 1월 16일 부터 252 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 24₩6,523.60
25 - 99₩6,429.60
100 - 249₩6,316.80
250 +₩6,128.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
607-7804
Distrelec 제품 번호:
135-50-249
제조사 부품 번호:
5000.0501
제조업체:
Marquardt
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Marquardt

Switch Operation

Momentary

Actuator Colour

Black

Product Type

Push Button Switch

Illuminated

No

Panel Cutout Size

16 mm

Series

5000

Mount Type

Snap-in

Contact Configuration

SPST

Terminal Type

Solder

IP Rating

IP54, IP40

Contact AC Voltage

250V

Actuator Style

Button

Maximum Operating Temperature

120°C

Switch Configuration

On-Off

Standards/Approvals

UL, CSA

Switch Contact Current

4 A

Height

21.5mm

COO (Country of Origin):
TN

Marquardt 5000 Series Push Button Switches


The Marquardt 5000 series of round push button switches are a single pole normally open switch suitable for use in Class II appliances. These round push button switches require a 16mm cut out for panel mounting and are available with a choice of coloured actuators with IP40 or IP54 ratings for sealing against dust and water ingress. The Marquardt 5000 series push button switches have a long mechanical life endurance and feature 2.8mm Faston/Quick Connect style terminals.

Contact distance ≥3mm

Pre travel 2 ±0.4mm

Total travel/stroke 4mm

UL 94 V-2 flammability

Mechanical life 200,000 operations

Marquardt Push Button Switches


Note

Stock numbers 741-0776 and 607-7804 have a fixed pin beneath the bezel for panel cut out.
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.

Approvals

UL; CSA; ENEC
