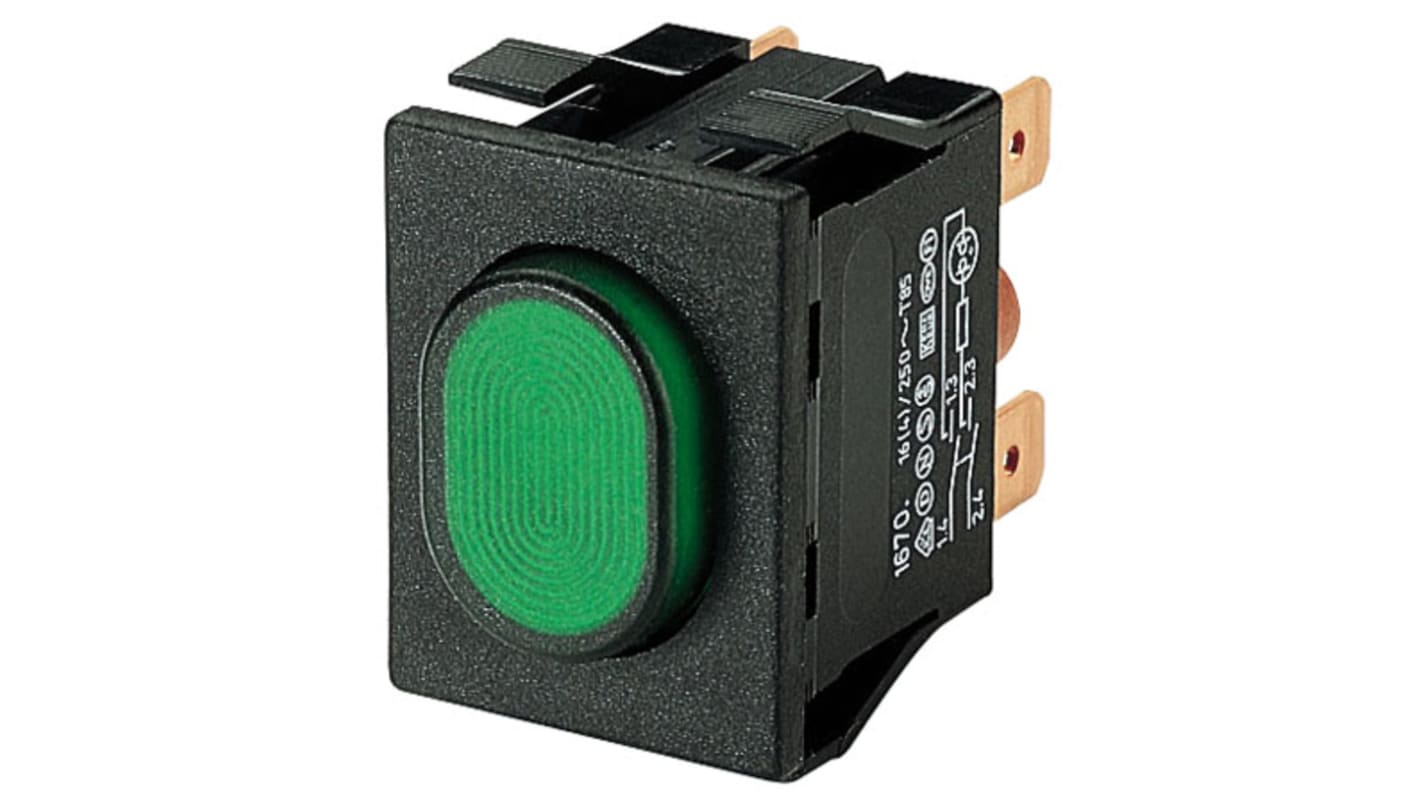

Marquardt Illuminated Push Button Switch, Latching, Panel Mount, DPST, Green LED, IP54

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩40,756.52

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 22 개 unit(s)이 배송 준비 됨
수량
한팩당
1 - 24₩40,756.52
25 - 99₩39,534.52
100 - 249₩38,310.64
250 +₩37,494.72

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
741-0779
Distrelec 제품 번호:
300-17-036
제조사 부품 번호:
1670.5202
제조업체:
Marquardt
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Marquardt

Switch Operation

Latching

Illuminated

Yes

Mounting Type

Panel Mount

Push Button Colour

Green

Contact Configuration

Double Pole Double Throw (DPDT)

LED Colour

Green

IP Rating

IP54

Contact Current Rating

16 A @ 250 V ac

Contact Material

Silver

Case Colour

Black

Manufacturer Part No.

1670.5202

Panel Cut Out Height

22.2mm

Panel Cut Out Width

30.4mm

Terminal Type

Tab

COO (Country of Origin):
TN

Marquardt 1670 Series Push Button Switches


Marquardt 1670 series double pole push button switch. The 1670 is a neon illuminated 230Vac push button switch with a green actuator which has an internal gasket that gives the actuator a rating of IP54. The Marquardt 1670 on/off push button switch is suitable for use in Class II appliances.

Contact distance ≥3mm
Operating force approximately 8N
UL 94 V-2 flammability
Mechanical life 50,000 operations

Note

The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.

Approvals

ENEC
