제조사부품번호

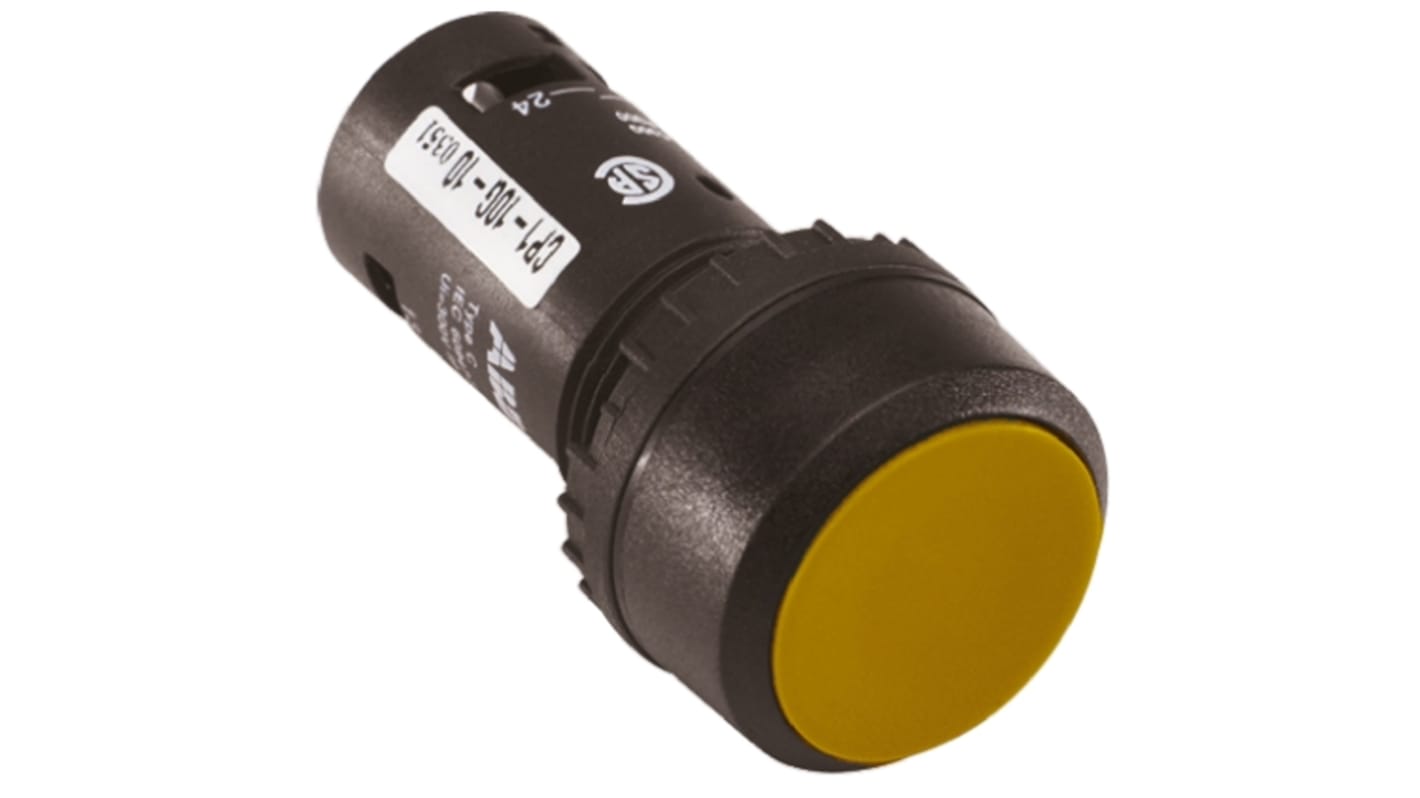

ABB Compact Series Push Button Switch, Momentary, Panel, 22 mm Cutout, SPST, IP20, IP66, IP67, IP69K, 125 V

RS 제품 번호:: 479-3655
제조사 부품 번호:: 1SFA619100R1013 CP1-10Y-10
제조업체:: ABB

ABB Compact Series Push Button Switch, Momentary, Panel, 22 mm Cutout, SPST, IP20, IP66, IP67, IP69K, 125 V

모든 Push Button Switches 열람하기

Subtotal (1 unit)*

₩24,667.50

재고있음

추가로 2026년 6월 29일 부터 21 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩24,667.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 479-3655
제조사 부품 번호:: 1SFA619100R1013 CP1-10Y-10
제조업체:: ABB

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Switch Operation	Momentary
	Actuator Colour	Yellow
	Product Type	Push Button Switch
	Illuminated	No
	Series	Compact
	Panel Cutout Size	22 mm
	Mount Type	Panel
	Contact Configuration	SPST
	Terminal Type	Screw
	IP Rating	IP20, IP66, IP67, IP69K
	Contact DC Voltage	125V
	Actuator Style	Round
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Width	30mm
	Standards/Approvals	IEC 947-5-5EN 60204
	Height	30mm
	Length	55mm

	모두 선택
	브랜드 ABB
	Switch Operation Momentary
	Actuator Colour Yellow
	Product Type Push Button Switch
	Illuminated No
	Series Compact
	Panel Cutout Size 22 mm
	Mount Type Panel
	Contact Configuration SPST
	Terminal Type Screw
	IP Rating IP20, IP66, IP67, IP69K
	Contact DC Voltage 125V
	Actuator Style Round
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Width 30mm
	Standards/Approvals IEC 947-5-5EN 60204
	Height 30mm
	Length 55mm

제외

COO (Country of Origin):: CN

ABB Compact Series Push Button Switch, Yellow Actuator, 22mm Panel Cutout Size - 1SFA619100R1013 CP1-10Y-10

This push-button switch is a compact, panel-mounted control device designed for momentary operation in industrial settings. It provides a single-pole single-throw contact arrangement for simple on/off control and is suited to environments where a non-illuminated yellow actuator is required for clear Visual identification. The switch is built to Interface with screw terminals and meets recognised low-voltage control standards for use in machinery and control panels.

Features and Benefits:

• SPST contact delivers straightforward single-circuit switching
• Momentary operation allows temporary actuation only
• Screw terminals enable secure, field-friendly wiring
• Rated for 125V DC to handle low-voltage control circuits
• Wide operating temperature range supports harsh conditions
• IP66 IP67 IP69K protection resists ingress during washdowns

Applications

• Suitable for machine start/stop control in factory panels
• Ideal for emergency reset stations in production lines
• Used for operator control stations on packaging equipment
• Can be used for control kiosks requiring visible yellow actuator
• Used with washdown processes in food-processing control cabinets

What mounting provision is required for installation?

It requires a 22mm panel cut-out and is secured by a panel-mount configuration for straightforward fitting.

How does the device perform in wet-clean environments?

The enclosure meets IP66, IP67 and IP69K degrees of ingress protection, permitting high-pressure and hygienic washdown procedures.

What Terminal format is provided for electrical connections?

Electrical connections are MADE via screw-type terminals designed for reliable clamping of control wiring.

What are the limits for ambient temperature during operation?

The switch is specified to operate between -25°C and 70°C to accommodate varied industrial climates.
