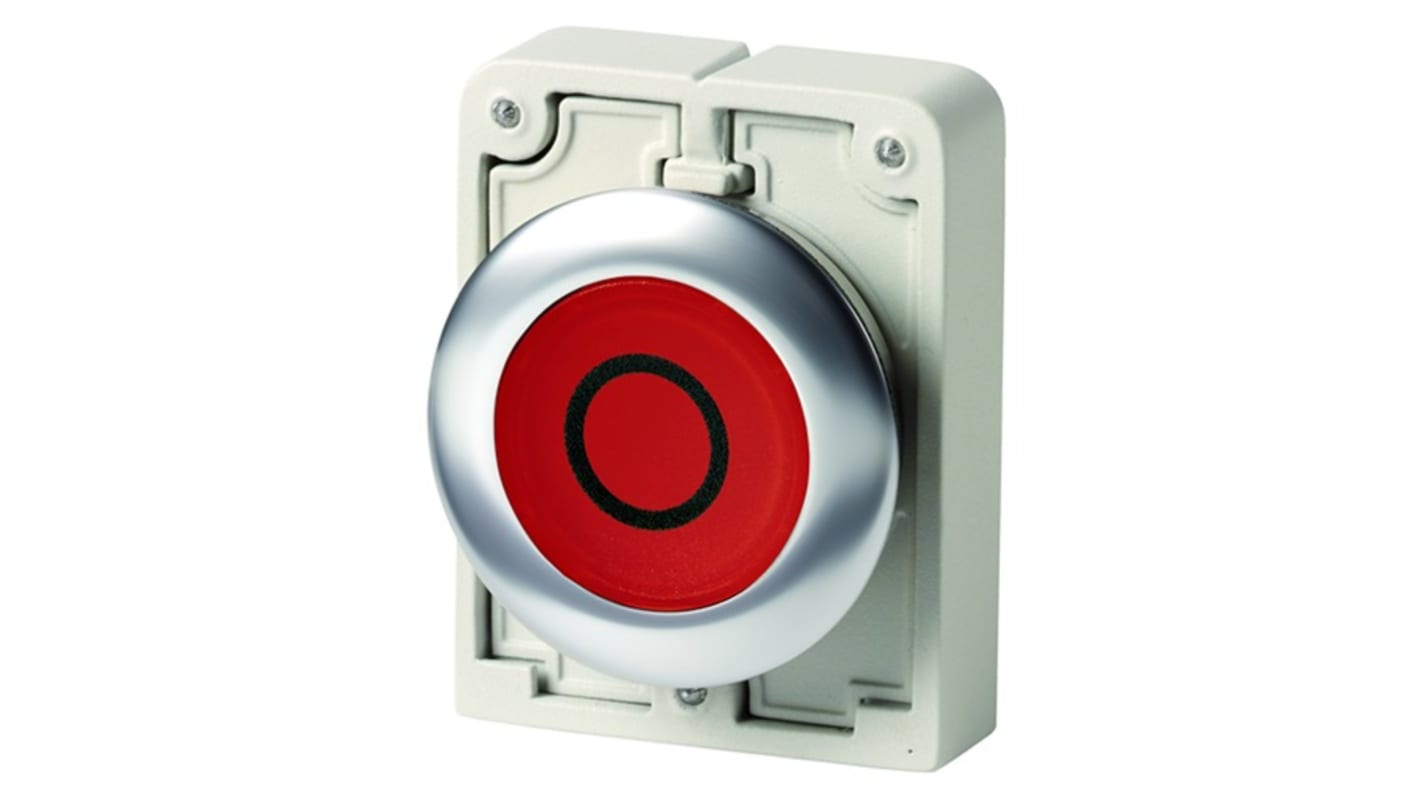

Eaton RMQ-Titan Series Red Momentary Spring Return Push Button Actuator, 30.5 mm Cutout, IP66, IP67, IP69

RS 제품 번호:: 272-1360
제조사 부품 번호:: 188033 M30I-FDL-R-X0
제조업체:: Eaton

Eaton RMQ-Titan Series Red Momentary Spring Return Push Button Actuator, 30.5 mm Cutout, IP66, IP67, IP69

Subtotal (1 unit)*

₩54,300.00

제조사가 재고 비축중

2026년 11월 16일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩54,300.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 272-1360
제조사 부품 번호:: 188033 M30I-FDL-R-X0
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Series	RMQ-Titan
	Product Type	Push Button Actuator
	Cutout Diameter	30.5mm
	Push Button Colour	Red
	Push Button Shape	Flat
	Push Button Actuation	Momentary Spring Return
	Push Button Style	With Front Ring
	Push Button Material	Metal
	IP Rating	IP66, IP67, IP69
	Push Button Marking	Labelled
	Push Button Diameter	36mm
	Standards/Approvals	IEC/EN 60947-5-1, CE, CSA, CSA-C22.2 No. 14-18 and No. 94.2-15, CSA File No.:165628 CSA Class No.:321103 UL File No.:E29184 UL 508, UL, UL Category Control No.:NKCR UL listed, VDE 0660
	Hazardous Area Certification	No

	모두 선택
	브랜드 Eaton
	Series RMQ-Titan
	Product Type Push Button Actuator
	Cutout Diameter 30.5mm
	Push Button Colour Red
	Push Button Shape Flat
	Push Button Actuation Momentary Spring Return
	Push Button Style With Front Ring
	Push Button Material Metal
	IP Rating IP66, IP67, IP69
	Push Button Marking Labelled
	Push Button Diameter 36mm
	Standards/Approvals IEC/EN 60947-5-1, CE, CSA, CSA-C22.2 No. 14-18 and No. 94.2-15, CSA File No.:165628 CSA Class No.:321103 UL File No.:E29184 UL 508, UL, UL Category Control No.:NKCR UL listed, VDE 0660
	Hazardous Area Certification No

COO (Country of Origin):: DE

Eaton Push Button Actuator, 36mm Diameter, Red - 188033 M30I-FDL-R-X0

This push-button actuator is an illuminated control element designed for panel mounting in industrial environments, providing a momentary spring-return operation for user input and signalling. It is intended for use where a labelled, metal flat front with a stainless front ring is required and can be mounted in varied orientations to suit control panels and machinery.

Features and Benefits:

• IP66, IP67 and IP69 rating ensures ingress protection in harsh environments
• 3600 operations/h operating frequency supports frequent actuation cycles
• 5N actuating force gives consistent tactile response for operators
• Mechanical lifespan of 5,000,000 operations reduces replacement intervals
• Damp heat resistance per IEC 60068-2-78 extends durability in humid conditions

Applications

• Suitable for heavy-duty waterproof control actuator installations
• Ideal for panel mount 36mm push-button replacements
• Used with emergency stop replacements requiring labelled indicators
• Can be used for illuminated signalling on factory control panels
• Suitable for industrial front-ring push-button assemblies

What cut-out size is required for installation?

The device fits an opening with a 30.5mm diameter.

What materials are present on the front for durability?

The bezel is metal with a stainless-steel front ring and a metal flat front element.

What operational temperature range can it withstand?

It operates between -25°C and 70°C ambient temperatures.

Which approvals cover electrical and safety standards?

It holds approvals to IEC/EN 60947-5-1 and listings from UL, CSA and VDE.

How is the actuator illuminated and marked?

The actuator is illuminated, presented in red, and supplied with an inscribed label.
