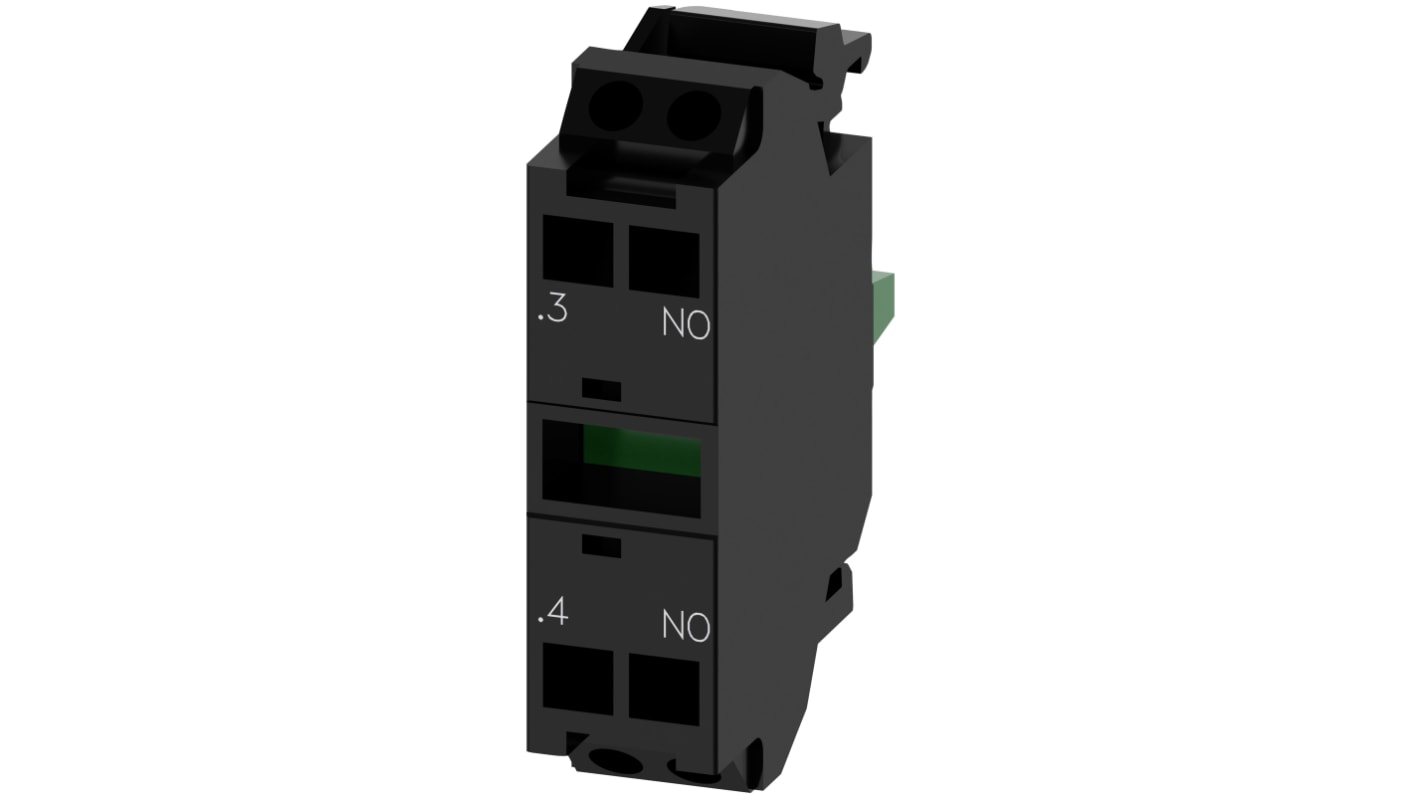

Siemens SIRIUS ACT 3SU14 Series Contact Block, 5 → 500V ac/dc, 1NO
- RS 제품 번호:
- 874-2222
- Distrelec 제품 번호:
- 300-21-202
- 제조사 부품 번호:
- 3SU1400-1AA10-3BA0
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩11,599.60
재고있음
- 1,396 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩11,599.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 874-2222
- Distrelec 제품 번호:
- 300-21-202
- 제조사 부품 번호:
- 3SU1400-1AA10-3BA0
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Block Type | Contact Block | |
| Voltage Rating | 5 → 500V ac/dc | |
| Series | SIRIUS ACT 3SU14 | |
| Contact Configuration | 1NO | |
| LED Included | No | |
| Body/Fixing Collar Included | No | |
| Current Rating | 10A | |
| Better World Product | Yes | |
| Better World Claim | Extended product life, Low carbon manufacture | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Block Type Contact Block | ||
Voltage Rating 5 → 500V ac/dc | ||
Series SIRIUS ACT 3SU14 | ||
Contact Configuration 1NO | ||
LED Included No | ||
Body/Fixing Collar Included No | ||
Current Rating 10A | ||
Better World Product Yes | ||
Better World Claim Extended product life, Low carbon manufacture | ||
- COO (Country of Origin):
- DE
Siemens Contact Block, 10A Current Rating, 1NO Contact - SIRIUS ACT Series - 3SU1400-1AA10-3BA0
Use this reliable contact block from Siemens to connect electrical circuits in your industrial system. Its simple snap-on design makes it straightforward to integrate into your circuitry, so it reduces installation time. As the unit is stackable, you can place multiple units on top of each other to save surface area. It's even possible to install the device in a slanted position, which comes in handy when space is limited. The patented holder features twist-prevention in order to stop the block from moving once it's installed.
• Tested to withstand the extreme environments commonly found in industry
• Self-holding function of the actuator when mounting allows a range to be set in order to prevent rapid switching when there are ripples in the current
• Self-holding function of the actuator when mounting allows a range to be set in order to prevent rapid switching when there are ripples in the current
What does 1NO mean?
The number signals the number of pairs of contacts and NO stands for 'normally open'. This means that the contact points will remain open until the switch is actuated. Essentially, the switch needs to be turned on in order to complete the circuit and start your machine or equipment.
