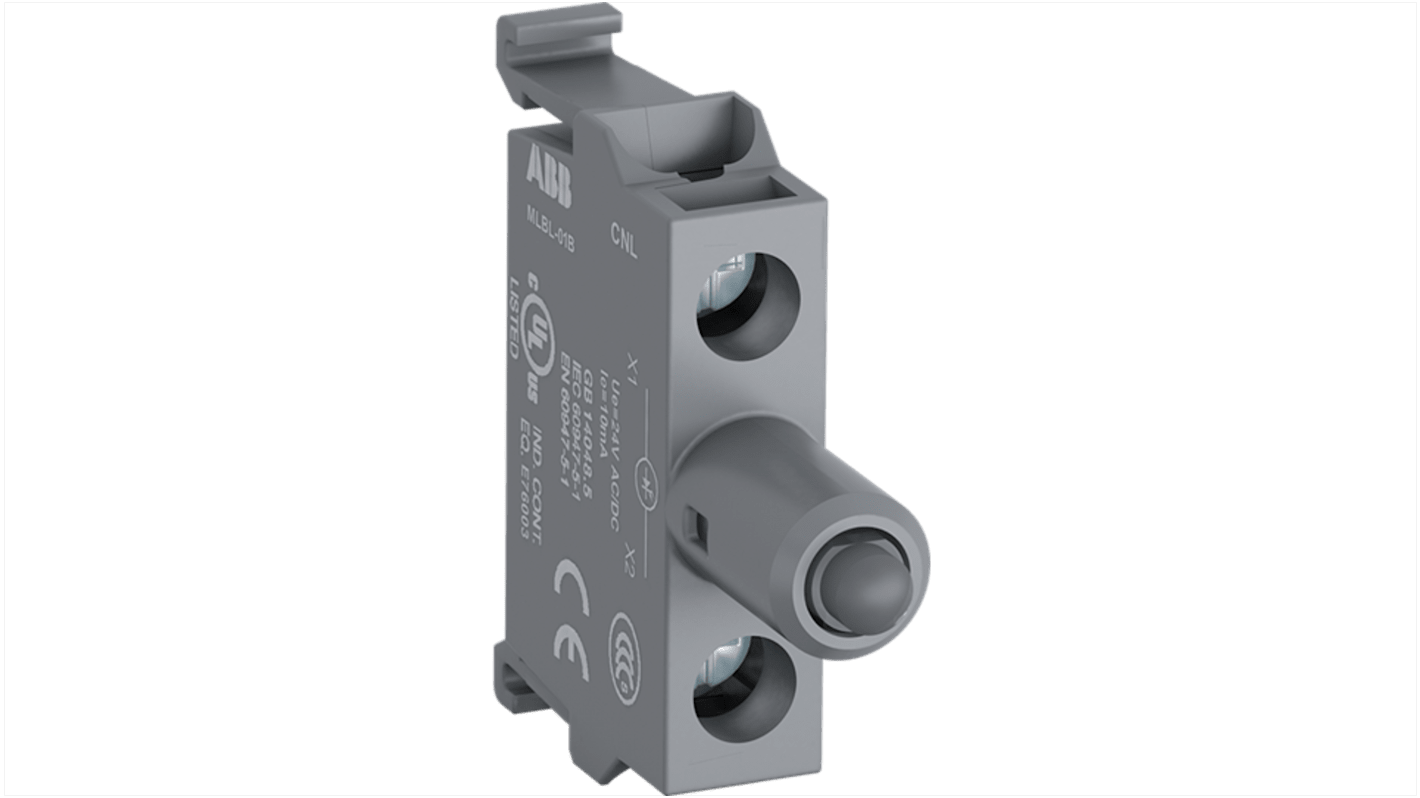

ABB MLBL Series Light Block, 380V ac, Green Light

RS 제품 번호:: 237-3032
제조사 부품 번호:: 1SFA611621R2082
제조업체:: ABB

ABB MLBL Series Light Block, 380V ac, Green Light

본 제품군 열람하기

Subtotal (1 unit)*

₩31,420.00

재고있음

1 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩31,420.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 237-3032
제조사 부품 번호:: 1SFA611621R2082
제조업체:: ABB

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Product Type	LED Block
	Block Type	Light Block
	Voltage	380V ac
	Illumination Colour	Green
	Series	MLBL
	Illumination Type	LED
	LED Included	Yes
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Width	10mm
	Standards/Approvals	RoHS
	Length	42mm
	Height	44mm

	모두 선택
	브랜드 ABB
	Product Type LED Block
	Block Type Light Block
	Voltage 380V ac
	Illumination Colour Green
	Series MLBL
	Illumination Type LED
	LED Included Yes
	Terminal Type Screw
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Width 10mm
	Standards/Approvals RoHS
	Length 42mm
	Height 44mm

Datasheet - 1SFA611621R2082

COO (Country of Origin):: CN

ABB MLBL Series LED Block, 380V AC Rated Voltage, Green Illumination - 1SFA611621R2082

This LED Block provides a compact, panel‑mounted Visual indicator for industrial electrical systems. Designed for use where an illuminated signal is required, it operates from a high‑voltage AC supply and is suitable for integration into control panels and switchgear in automation and electrical applications.

Features and Benefits:

• Operates from 380V AC for high‑voltage signalling capability
• Green LED illumination for clear status indication
• Screw terminals enable secure electrical connections
• Rated for continuous use between -25°C and +70°C for a wide temperature range
• RoHS compliance reduces hazardous substance concerns
• Narrow 10mm width supports dense panel layouts

Applications

• Suitable for signalling circuits in factory automation panels
• Ideal for status indication on distribution switchboards
• Used with control cabinets in electrical installations
• Can be used for machine panel indicators in mechanical workshops

What Terminal type should I expect for wiring?

The unit uses screw‑style terminals that allow firm conductor clamping for reliable electrical contact and straightforward installation with common screwdrivers.

How Compact is the indicator for tight panel spaces?

Its physical form is exceptionally small, with a length of 0.042 m and a width of 10 mm, enabling placement in constrained cutouts and crowded assemblies.

What illumination characteristics does it provide for visibility?

The indicator employs a green LED light source offering distinct Visual feedback suitable for status displays within control environments.

What ambient conditions will it tolerate during operation?

It is designed to function across a temperature span from -25°C up to +70°C, accommodating cold storage areas and warm electrical enclosures alike.
