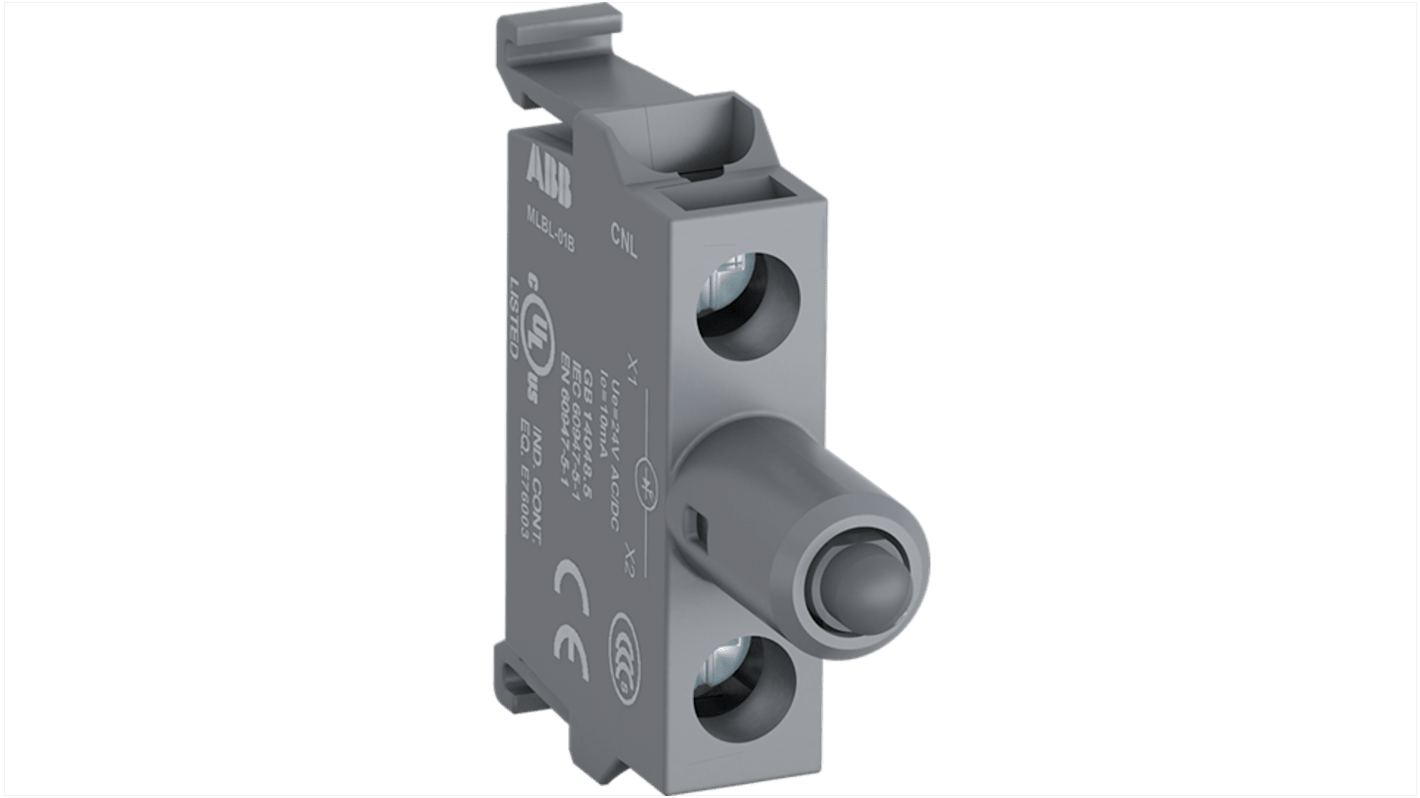

ABB MLBL Series Light Block, 230V ac, White Light

RS 제품 번호:: 237-3030
제조사 부품 번호:: 1SFA611621R2075 MLBL-07BW
제조업체:: ABB

ABB MLBL Series Light Block, 230V ac, White Light

본 제품군 열람하기

Subtotal (1 unit)*

₩29,440.00

재고있음

6 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩29,440.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 237-3030
제조사 부품 번호:: 1SFA611621R2075 MLBL-07BW
제조업체:: ABB

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Product Type	LED Block
	Block Type	Light Block
	Voltage	230V ac
	Illumination Colour	White
	Series	MLBL
	Illumination Type	LED
	LED Included	Yes
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Standards/Approvals	CCC, UL, RoHS, REACH, cULus, CE
	Height	44mm
	Length	42mm
	Width	10mm

	모두 선택
	브랜드 ABB
	Product Type LED Block
	Block Type Light Block
	Voltage 230V ac
	Illumination Colour White
	Series MLBL
	Illumination Type LED
	LED Included Yes
	Terminal Type Screw
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Standards/Approvals CCC, UL, RoHS, REACH, cULus, CE
	Height 44mm
	Length 42mm
	Width 10mm

Datasheet - 1SFA611621R2075

COO (Country of Origin):: CN

ABB MLBL Series LED Block, 230V Voltage, White Illumination - 1SFA611621R2075 MLBL-07BW

This LED Block provides a Compact Visual indicator for control panels and equipment in automation and industrial electrical systems. Designed for panel-mount signalling duties, it offers white illumination powered from standard 230V AC supplies and integrates with screw-terminal wiring for straightforward installation.

Features and Benefits:

• Operates from 230V AC for compatibility with mains control circuits
• Screw Terminal connection simplifies secure electrical termination
• White LED illumination for clear status indication
• Rated to function between -25 °C and 70 °C for wide ambient ranges
• Complies with multiple international standards for regulatory acceptance
• Compact 10mm width aids tight-panel and modular assemblies

Applications

• Suitable for signalling status on control panels in manufacturing plants
• Ideal for use in switchgear and distribution enclosures
• Used for indication on test rigs and diagnostic stations
• Can be used for retrofit upgrades in electrical cabinets
• Used with Terminal blocks and relay sockets in automation racks

What is the recommended wiring approach to ensure reliable connections?

Use appropriately rated conductors and tighten the screw terminals to the torque specified by your installation standards to prevent loosening under vibration.

How does the device perform in elevated-temperature installations?

The indicator maintains specified operation throughout its -25 °C to 70 °C range

position it away from heat sources that exceed the stated maximum to preserve LED lifespan.

What approvals should be checked for international projects?

Verify the product’s conformity marks against project requirements since it carries multiple recognised certifications relevant to cross‑border installations.

How does the unit integrate into Compact panel designs?

Its narrow 10mm profile permits dense placement in modular assemblies, enabling more indicators per panel while conserving front‑panel real estate.
