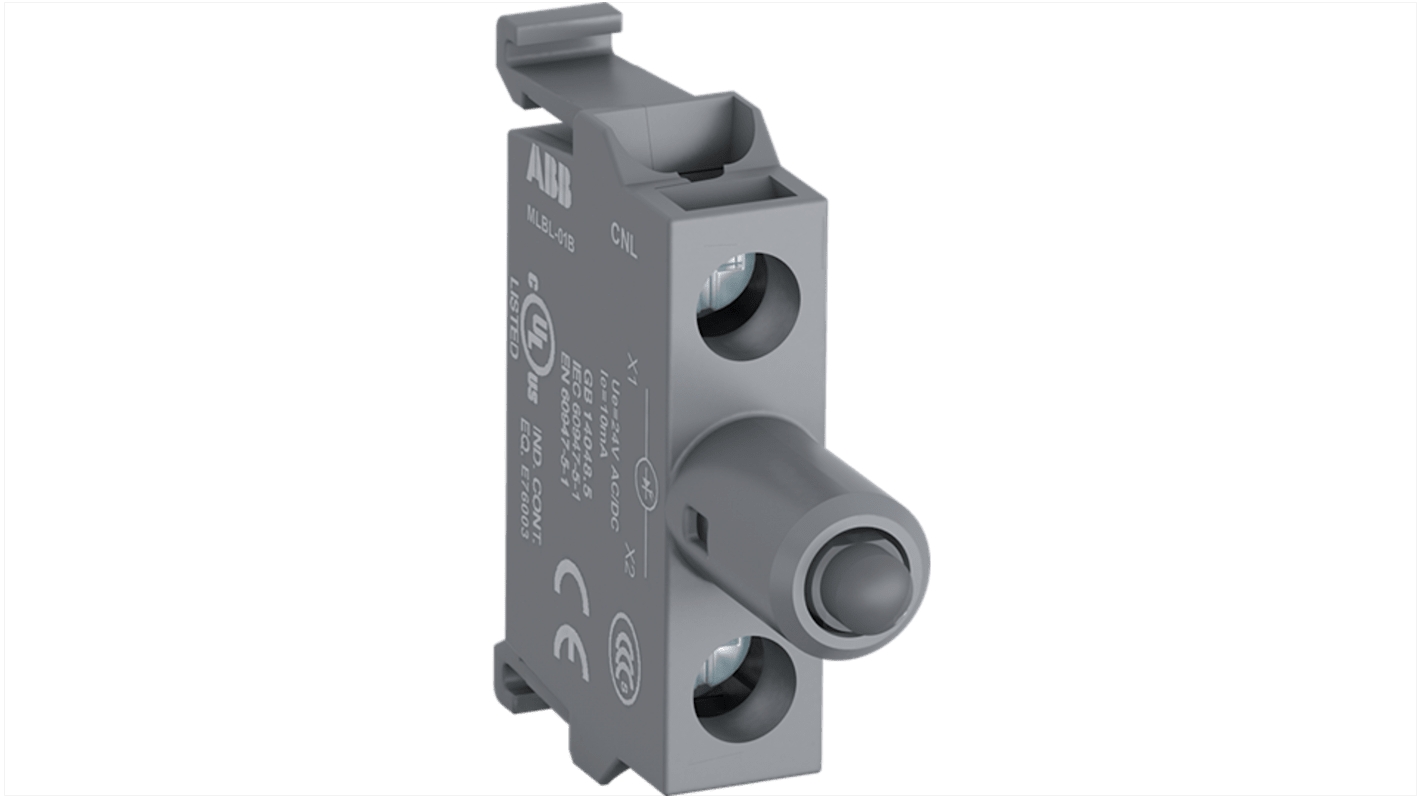

ABB MLBL Series Light Block, 24 V ac, 24V dc, Green Light

RS 제품 번호:: 237-2999
제조사 부품 번호:: 1SFA611621R2012 MLBL-01BG
제조업체:: ABB

ABB MLBL Series Light Block, 24 V ac, 24V dc, Green Light

본 제품군 열람하기

Subtotal (1 unit)*

₩32,060.00

재고있음

추가로 2026년 10월 12일 부터 1 개 단위 배송
추가로 2026년 10월 16일 부터 2 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩32,060.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 237-2999
제조사 부품 번호:: 1SFA611621R2012 MLBL-01BG
제조업체:: ABB

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Product Type	LED Block
	Block Type	Light Block
	Voltage	24V ac, 24V ac
	Illumination Colour	Green
	Series	MLBL
	Illumination Type	LED
	LED Included	Yes
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Length	42mm
	Standards/Approvals	RoHS
	Width	10mm
	Height	44mm

	모두 선택
	브랜드 ABB
	Product Type LED Block
	Block Type Light Block
	Voltage 24V ac, 24V ac
	Illumination Colour Green
	Series MLBL
	Illumination Type LED
	LED Included Yes
	Terminal Type Screw
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Length 42mm
	Standards/Approvals RoHS
	Width 10mm
	Height 44mm

Datasheet - 1SFA611621R2012

COO (Country of Origin):: CN

ABB MLBL Series LED Block, 24V Voltage, Green Illumination - 1SFA611621R2012 MLBL-01BG

This LED Block is a Compact illumination module intended for control panels and industrial equipment, providing clear Visual signalling in electrical and automation environments. It operates from a 24V AC/DC supply and is designed with a screw‑terminal Interface for straightforward integration into existing assemblies. The unit features a green LED indicator and is suitable for use across a broad ambient temperature range.

Features and Benefits:

• Green LED illumination for Rapid status identification
• Screw terminals allow secure electrical connection under vibration
• RoHS‑compliant construction minimises hazardous substances
• Wide ambient temperature rating supports harsh‑site operation
• LED included providing immediate readiness at installation

Applications

• Suitable for control panels requiring 24V Visual status indicators
• Ideal for PLC and switchgear Visual signalling tasks
• Used with industrial automation racks for component status feedback
• Can be used for indicator retrofits in electrical distribution enclosures

What mounting or connection method does it use for panel integration?

Electrical connections are MADE via screw terminals, enabling firm wire clamping and simple replacement without specialised connectors.

How does the unit cope with temperature extremes in plant environments?

It functions across an operating range from -25°C to +70°C, allowing deployment in cold storage areas and warm plant rooms.

Is the illumination component supplied with the unit or must it be ordered separately?

The module includes the LED element, so it is operational upon installation without additional parts.

What physical form factor should installers expect for tight spaces?

The Block presents a very small footprint, with dimensions approximately 0.042 m in length and 0.044 m in height and a 10mm width for dense panel layouts.
