대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩4,888.00
재고있음
- 추가로 2025년 12월 08일 부터 135 개 단위 배송
- 추가로 2025년 12월 17일 부터 530 개 단위 배송
- 추가로 2026년 3월 04일 부터 300 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩4,888.00 |
| 5 + | ₩4,004.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 205-2382
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Block Type | Contact Block | |
| Voltage Rating | 500V | |
| Series | RAS | |
| Contact Configuration | 1NO | |
| Terminal Type | Screw | |
| Current Rating | 10A | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Block Type Contact Block | ||
Voltage Rating 500V | ||
Series RAS | ||
Contact Configuration 1NO | ||
Terminal Type Screw | ||
Current Rating 10A | ||
- COO (Country of Origin):
- IN

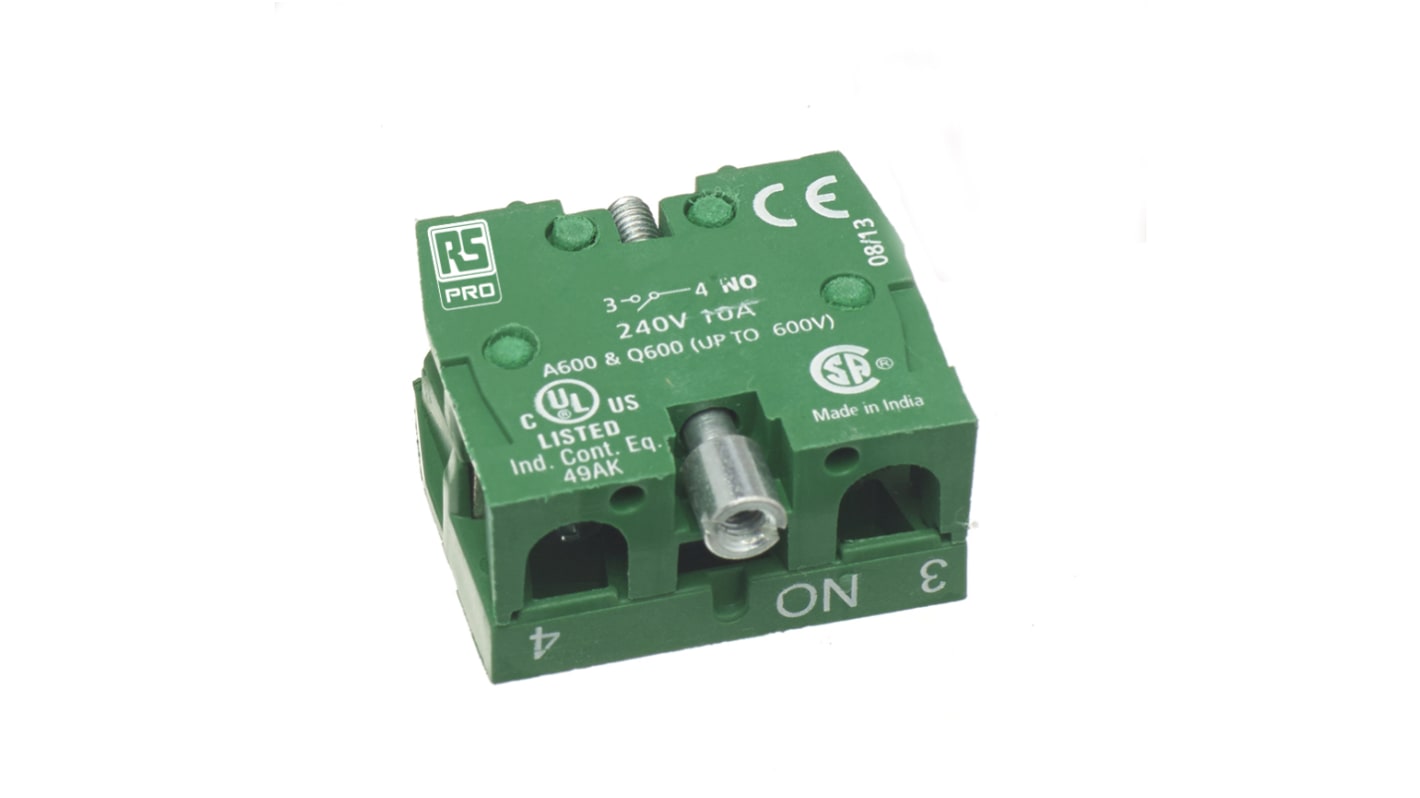

RS PRO Auxiliary Contact Block
Introducing from RS PRO a range of auxiliary contact blocks. These contact blocks are used in conjunction with 22 mm push button heads with mounting collars.
Where would you use them?
Auxiliary contact blocks are commonly used as an activation device connected to pushbuttons, relays, and circuit breakers, once engaged these devices are active and the contact block allows current to flow and complete a circuit. Typical applications include motor control schemes, and industrial control.
Features and Benefits
- Auxiliary Contact Block
- Contact Configuration: SPST 1NO
- Screw terminals: Cross slotted head
- Contact Operation: Self-cleaning type, slow action, positive opening
- Terminal reference: Conforming to CENELEC EN 50013
- Short circuit protection: 10A 500V, Cartridge Fuse g1 or N Conforming to IEC 337-1
- 500V Conforming to IEC 60947-1
- Operating temperature: -25°C to +70°C (Working)
- Mechanical Life: Push buttons and selector switches 1 million operations
- Protection Degree: IP65
Dimensions
- Length: 30 mm
- Width:13 mm
- Height: 24 mm
RS PRO Auxiliary Contact Block Variants
Compatibility
Compatible with RS PRO series; RCAS, RB2 push button heads and RAS mounting collar. Browse our range for your ideal solution.
Applications
- Industrial
- Factories
- Power Plants
Why would you choose RS PRO for Contact Blocks?
RS PRO offers a wide range of contact blocks to suit your applications. Our range of auxiliary contact blocks has been selected for its high quality and compatibility with push button heads and collars. We understand quality is of great importance to any engineer and have ensured that all RS PRO contact blocks are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we’re confident of their exceptional quality.
