일시적 품절
- RS 제품 번호:
- 524-702
- 제조사 부품 번호:
- 1.20.124.128/0000
- 제조업체:
- RAFI
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RAFI | |
| Product Type | Push Button Switching Element | |
| Block Type | Switch Block | |
| Voltage | 35 V | |
| Series | RAFIX 22 | |
| Current Rating | 0.1 A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CE, IEC 60068-2-27, IEC 60068-2-6, REACH, RoHS | |
| Width | 39.5 mm | |
| Length | 49.9mm | |
| Height | 30mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RAFI | ||
Product Type Push Button Switching Element | ||
Block Type Switch Block | ||
Voltage 35 V | ||
Series RAFIX 22 | ||
Current Rating 0.1 A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CE, IEC 60068-2-27, IEC 60068-2-6, REACH, RoHS | ||
Width 39.5 mm | ||
Length 49.9mm | ||
Height 30mm | ||
- COO (Country of Origin):
- HU

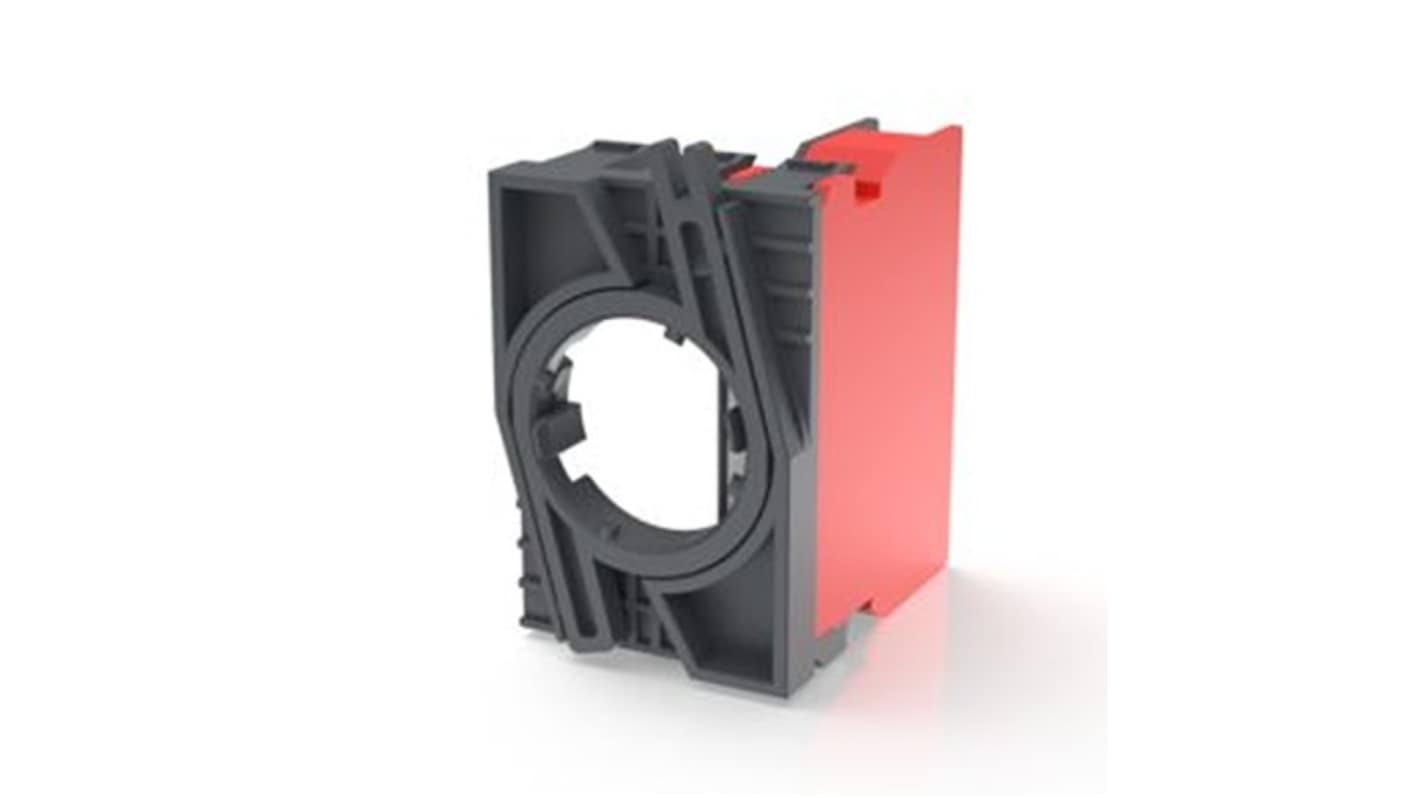

The RAFI Switching Element features a BA9s Lamp socket with screw terminal is an excellent choice for applications like vehicle construction, electrical engineering, and mechanical systems. Featuring a screw connection, it allows for direct and efficient wiring without the need for ferrules on stranded wires, while supporting both rigid and stranded wires. Its modular design enables simple mounting by snapping onto the coupling and actuator, with easy disassembly using the bayonet lever.
Light grey colour
Gold Contact material
Contact function 1 NC plus 1 NO and 1 NC plus 1 NO
RoHS and REACH compliant
