Subtotal (1 unit)*
₩28,612.00
재고있음
- 추가로 2026년 11월 23일 부터 4 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩28,612.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 443-235
- 제조사 부품 번호:
- 71-652.0
- 제조업체:
- EAO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EAO | |
| Product Type | Push Button Actuator | |
| Standards/Approvals | 2011 / 65 / EC (RoHS), EN IEC 60068-2-27, CE, UKCA, 2014 / 35 / EU (LVD), EN IEC 60947-5-1, DIN / IEC 60512-2, REACH Compliant, UL 94 V0, EN IEC 60068-2-78, RoHS Compliant, EN IEC 60068-2-6 | |
| 모두 선택 | ||
|---|---|---|
브랜드 EAO | ||
Product Type Push Button Actuator | ||
Standards/Approvals 2011 / 65 / EC (RoHS), EN IEC 60068-2-27, CE, UKCA, 2014 / 35 / EU (LVD), EN IEC 60947-5-1, DIN / IEC 60512-2, REACH Compliant, UL 94 V0, EN IEC 60068-2-78, RoHS Compliant, EN IEC 60068-2-6 | ||
- COO (Country of Origin):
- CH

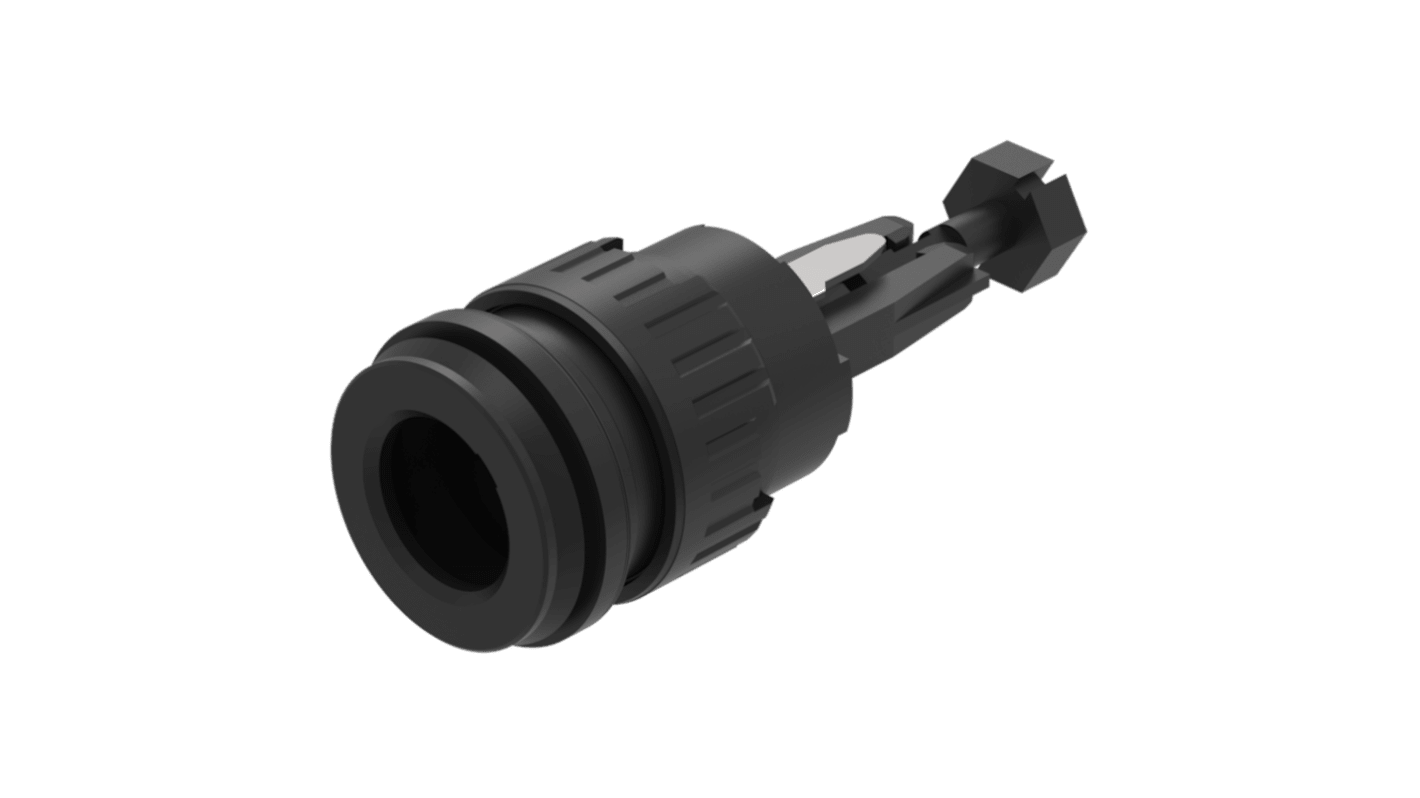

The EAO Actuator combines precision engineering and robust performance, designed specifically for panel mounting applications. With a focus on user guidance and intuitiveness, this model offers a maintained-rest-maintained switching action that ensures reliability and efficiency in operation. Constructed from durable plastic, it provides both longevity and a lightweight solution for various applications. This actuator is ideal for environments requiring resilience, with an IP65 rating that safeguards against dust and moisture. Its ergonomically designed lever enhances functionality, catering to both aesthetic and practical needs. Whether you're upgrading existing equipment or embarking on a new project, the actuator delivers seamless performance across diverse operational conditions.
Panel mounting design ensures ease of installation
Self-cleaning, double-break snap action mechanism enhances operational durability
Maintained-rest-maintained action provides dependable performance
Compact size at only 0.003 kg optimises space within equipment
Wide operational temperature range supports versatility in usage
IP65 front side protection allows for use in demanding environments
Mechanical lifetime rated for 100,000 cycles guarantees long-term use
Ergonomic lever shape promotes user-friendly interaction
Perfect for applications with stringent certification standards including CE and RoHS compliance
