Broadcom AFBR Proximity Sensor 30 m 4.5 V 5.5V 15 Module

RS 제품 번호:: 230-5325
제조사 부품 번호:: AFBR-S50LV85D
제조업체:: Broadcom

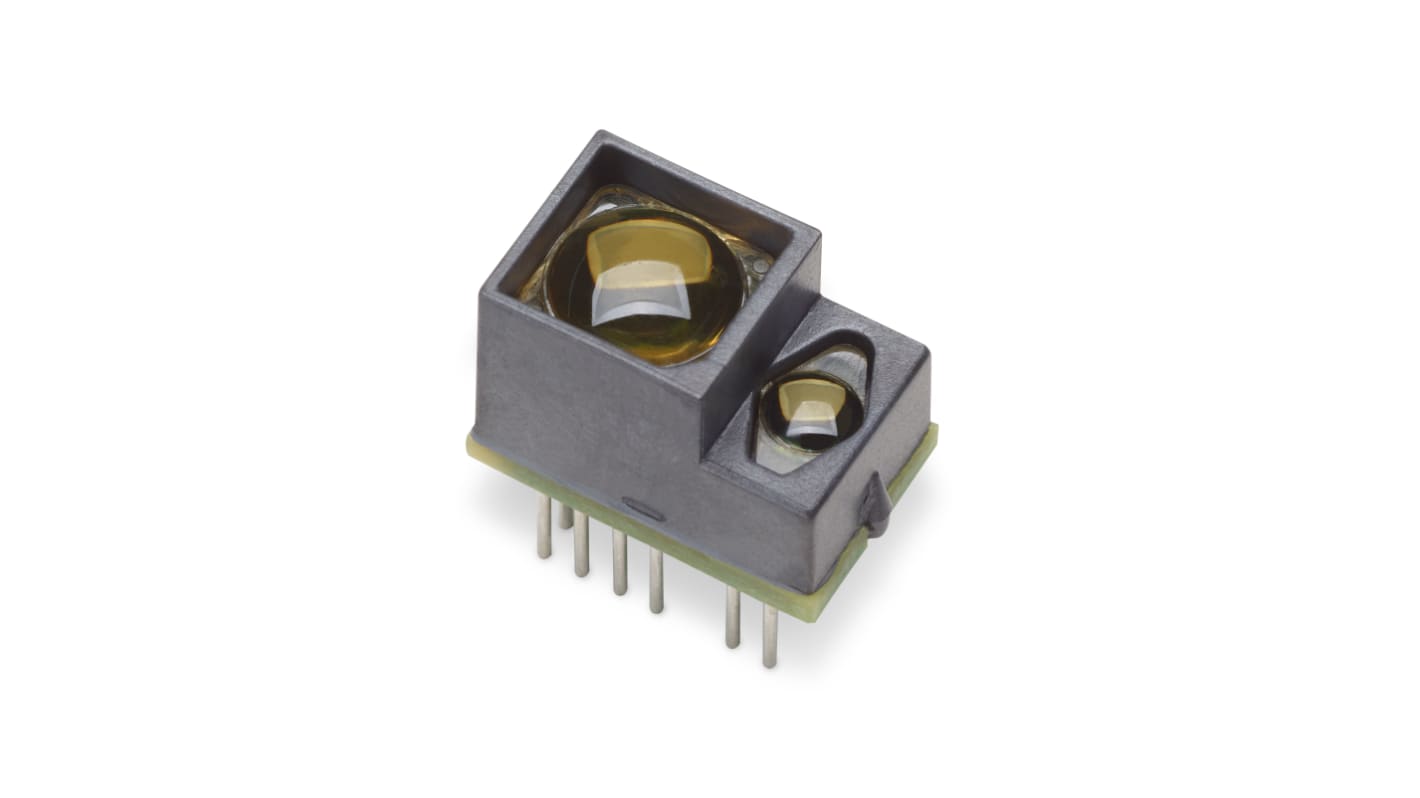

Broadcom AFBR Proximity Sensor 30 m 4.5 V 5.5V 15 Module

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩92,800.00

일시적 품절

2027년 2월 08일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩92,800.00
10 - 24	₩91,140.00
25 - 49	₩89,480.00
50 +	₩87,880.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 230-5325
제조사 부품 번호:: AFBR-S50LV85D
제조업체:: Broadcom

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Broadcom
	Product Type	Proximity Sensor
	Maximum Switching Frequency	3kHz
	Maximum Output Current	33mA
	Maximum Output Voltage	2.8V
	Sensing Distance	30m
	Output Type	Open Drain, Push Pull
	Mount Type	Through Hole
	Package Type	Module
	Pin Count	15
	Height	7.9mm
	Width	7.6mm
	Length	12.4mm
	Maximum Operating Temperature	70°C
	Minimum Operating Temperature	-20°C
	Minimum Supply Voltage	4.5V
	Series	AFBR
	Maximum Supply Voltage	5.5V
	Automotive Standard	No

	모두 선택
	브랜드 Broadcom
	Product Type Proximity Sensor
	Maximum Switching Frequency 3kHz
	Maximum Output Current 33mA
	Maximum Output Voltage 2.8V
	Sensing Distance 30m
	Output Type Open Drain, Push Pull
	Mount Type Through Hole
	Package Type Module
	Pin Count 15
	Height 7.9mm
	Width 7.6mm
	Length 12.4mm
	Maximum Operating Temperature 70°C
	Minimum Operating Temperature -20°C
	Minimum Supply Voltage 4.5V
	Series AFBR
	Maximum Supply Voltage 5.5V
	Automotive Standard No

Datasheet - AFBR-S50LV85D

COO (Country of Origin):: CH

Broadcom AFBR Series Proximity Sensor, 30m Sensing Distance, 5.5V Maximum Supply Voltage - AFBR-S50LV85D

This proximity sensor is a Compact detection module designed to sense objects at long range within electronic and industrial systems. It operates from a low-voltage supply and delivers a switched output suitable for integration with control logic. The unit is intended for through-hole mounting and functions across a wide ambient temperature span for varied operational environments.

Features and Benefits:

• Open drain and push-pull outputs offer flexible interfacing options
• Detects targets up to 30 m, enabling long-range detection tasks
• Operates from 4.5-5.5 V for low-voltage system compatibility
• Draws 40 mA supply current, reducing power budget impact
• Switches at up to 3 kHz for responsive object detection
• Provides 33 mA output current to drive downstream inputs

Applications

• Suitable for industrial object detection on assembly lines
• Ideal for integration into monitoring and safety controls
• Used with control boards requiring through-hole mounting
• Can be used for long-range presence sensing in automation
• Suitable for environments operating between −20 °C and 70 °C

What mounting method does it require?

It is designed for through-hole installation on compatible boards.

What electrical connection options are available for outputs?

The module provides either open-drain or push-pull output types for different interfacing needs.

How does it perform in temperature extremes?

It functions over an ambient range from −20 °C to 70 °C without specification of derating.

What are the physical pin and package characteristics?

The device exposes 15 pins and is supplied as a module for board-level assembly.

What are the module’s external size parameters?

The Compact package measures 12.4 x 7.6 x 7.9 mm overall.
