Broadcom Medium-Range 3D Multipixel ToF Sensor AFBR-S50MV85G ToF Sensor Evaluation Kit for AFBR-S50MV85G

모든 Sensor Development Tools 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩563,830.80

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 14 개 unit(s)이 배송 준비 됨
수량
한팩당
1 - 4₩563,830.80
5 +₩552,569.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
193-2143
제조사 부품 번호:
AFBR-S50MV85G-EK
제조업체:
Broadcom
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Broadcom

Product Type

Sensor Development Tool

Sensor Technology

ToF Sensor

Featured Device

AFBR-S50MV85G

Kit Classification

Evaluation Kit

Standards/Approvals

RoHS

Kit Name

Medium-Range 3D Multipixel ToF Sensor AFBR-S50MV85G

COO (Country of Origin):
DE
The AFBR-S50MV85G-EK is Broadcom's multi pixel distance and motion measurement sensor evaluation kit based on the optical time-of-flight principle. The evaluation kit supports up to 400 frames per second with up to 16 illuminated pixels.

This sensor has been developed with a special focus on industrial sensing applications and gesture sensing with the need for high speed, small size and very low power consumption. Through its best-in-class ambient light suppression of up to 200k Lux at the spectrum of AM 1.5, its use in outside environments is no problem.

The technology has been optimized to measure distances up to 10m (black target). It works equally well on white, black, coloured and metallic reflective surfaces.

The module has an integrated 850 nm laser light source and uses a single voltage supply of 5V, the data is transferred via a USB interface.

Laser Class 1 eye safe

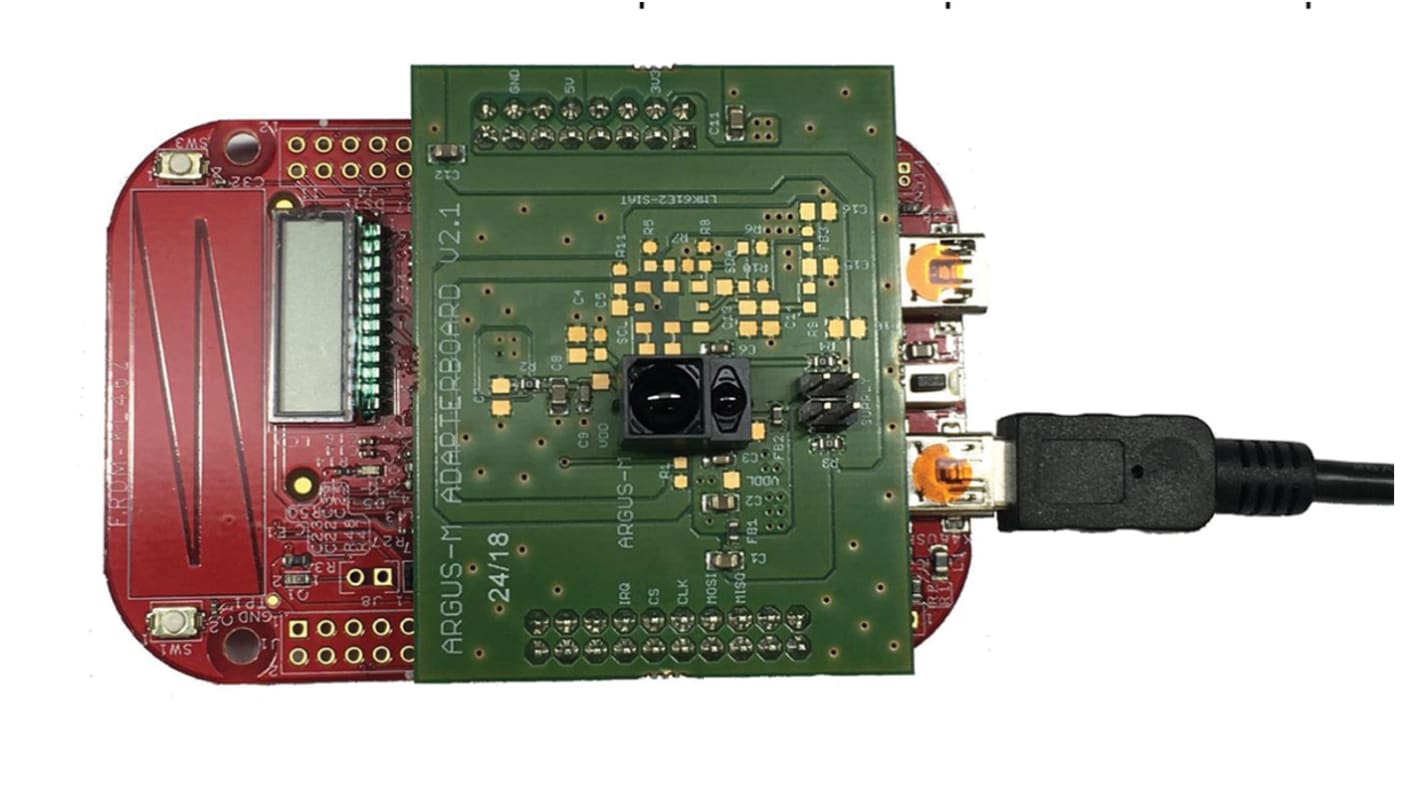

ARM Cortex M0+ Board

Adapter Board with soldered sensor

USB Cable

Applications

Distance measurement

Human machine interfaces

Robotics

Automation and control

Security and surveillance

Inventory monitoring

Augmented reality
