Druck DPI610E 0 bar to 2 bar Pressure Calibrator

모든 Pressure Calibrators 열람하기

Subtotal (1 unit)*

₩9,615,450.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 4월 27일 부터 1 개 단위 배송
  • 추가로 2026년 5월 06일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩9,615,450.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
251-9235
제조사 부품 번호:
DPI610E-PC-07G-UO -BO
제조업체:
Druck
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Druck

Product Type

Pressure Calibrator

Maximum Pressure Measurement

2bar

Battery Type

Lithium-ion

Accuracy

0.025 % FS

Minimum Pressure Measurement

0bar

Resolution

0.03 %

Pressure Port Type

Gauge/Pseudo Absolute

Data Logging

Yes

Model Number

DPI610E

Intrinsically Safe

No

Current Loop Measurement

Yes

Display Type

LCD

Leak Testing

Yes

Power Source

Lithium-ion Battery

Minimum Operating Temperature

-10°C

Weight

3600g

Maximum Operating Temperature

50°C

Standards/Approvals

BS EN 610101:2010, CE, UKCA, BS EN 613261:2013

Height

180mm

Length

35mm

Width

150mm

Hazardous Area Certification

NO

COO (Country of Origin):
GB

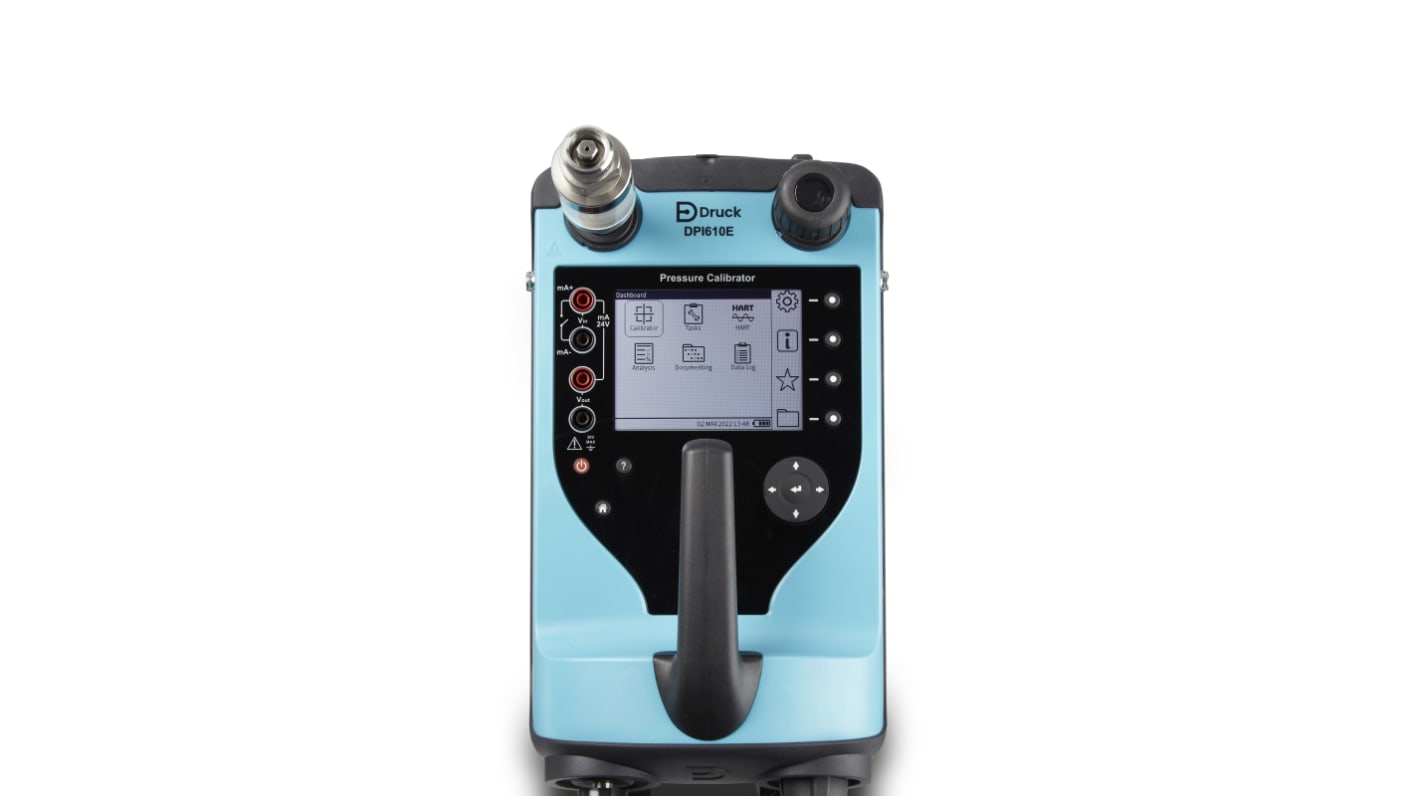

Druck Pressure Calibrator, 350 x 150 x 180 mm, 2 Barg G Maximum Pressure Measurement - DPI610E-PC-07G-UO -BO


This pressure calibrator from Druck is a versatile and reliable tool designed for precise pressure measurement and generation. With features like current loop measurement and data logging, it offers high-resolution pressure measurement across a wide range. Engineered for instrument technicians, this portable pressure calibrator provides accurate results in a variety of applications.

Features & Benefits


• Portable design for easy use in the field

• Current loop measurement capability for monitoring electrical signals

• Data logging functionality for recording and analyzing pressure measurements

• High resolution pressure measurement for precision calibration

• Leak testing feature ensures system integrity

Applications


• Ideal for calibration and testing applications in automation and electrical industries

• Used for setting up and calibrating pressure-sensitive equipment

• Suitable for checking and adjusting pressure switches and safety systems

Can it be used for calibrating pressure gauges?


Yes, the pressure calibrator is suitable for calibrating pressure gauges across its wide pressure range of 0-2 Barg G.

Is the DPI610E series intrinsically safe?


No, the DPI610E series is not intrinsically safe but offers reliable and accurate pressure measurement capabilities.

Will it work for leak testing applications?


Yes, the DPI610E pressure calibrator includes a leak testing feature to detect leaks in systems and ensure proper functionality.

Note

Why choose Druck?
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
