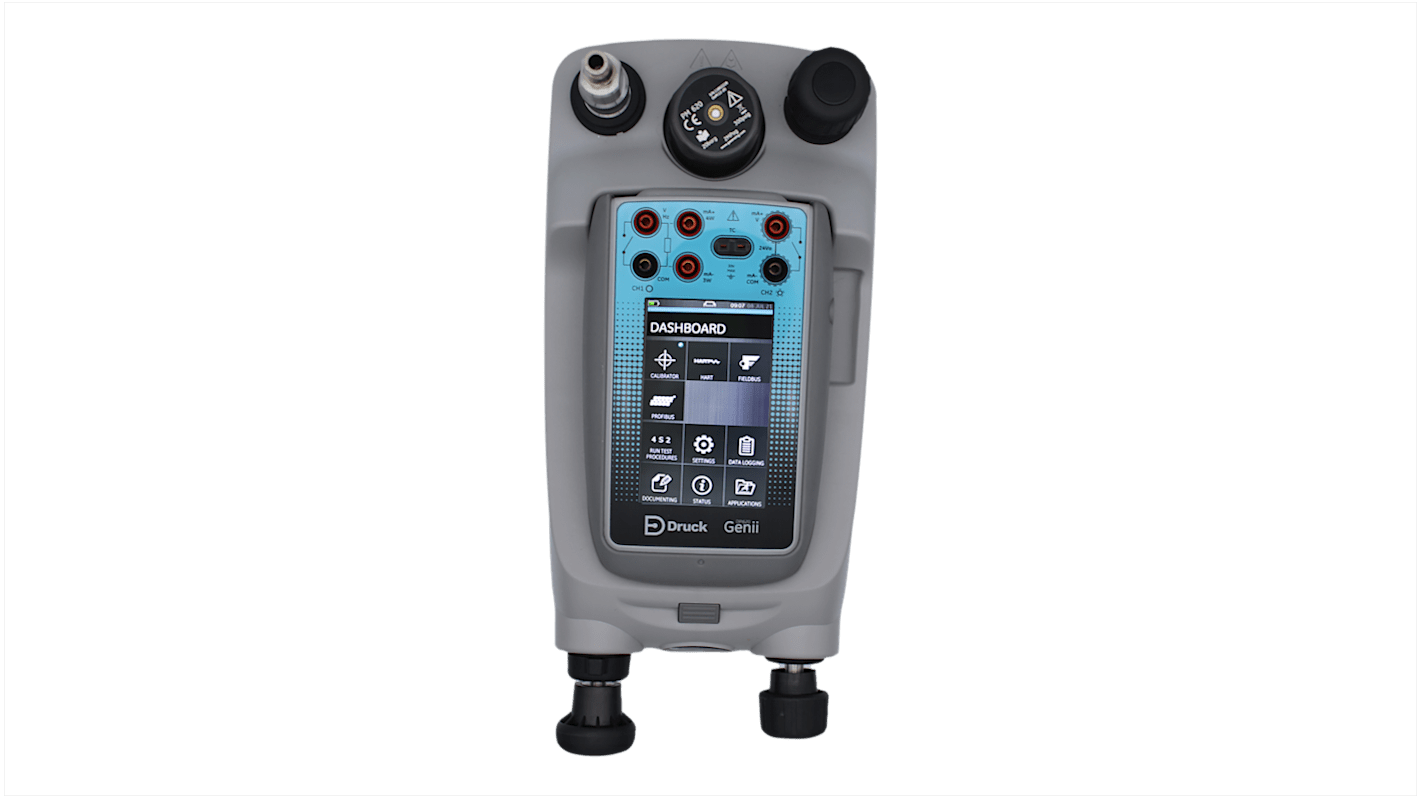

Druck DPI 620 25 mbar to 7 bar Pressure Calibrator Calibration Kit

RS 제품 번호:: 199-3841
제조사 부품 번호:: DPI620PC-7barg
제조업체:: Druck

Druck DPI 620 25 mbar to 7 bar Pressure Calibrator Calibration Kit

Subtotal (1 unit)*

₩23,953,300.00

일시적 품절

2026년 12월 02일 부터 1 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩23,953,300.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 199-3841
제조사 부품 번호:: DPI620PC-7barg
제조업체:: Druck

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Druck
	Battery Type	Lithium-Polymer
	Maximum Pressure Measurement	7bar
	Product Type	Pressure Calibrator Calibration Kit
	Minimum Pressure Measurement	25mbar
	Accuracy	±0.005 %
	Pressure Port Type	Gauge
	Model Number	DPI 620
	Data Logging	Yes
	Intrinsically Safe	No
	Current Loop Measurement	Yes
	Display Type	LCD
	Power Source	Rechargeable lithium Battery
	Minimum Operating Temperature	-10°C
	Weight	575g
	Maximum Operating Temperature	50°C
	Height	42mm
	Length	183mm
	Width	114mm
	Standards/Approvals	BS EN 610101:2010, BS EN 613261:2006, CE
	Hazardous Area Certification	No
	Plug Type	USB

	모두 선택
	브랜드 Druck
	Battery Type Lithium-Polymer
	Maximum Pressure Measurement 7bar
	Product Type Pressure Calibrator Calibration Kit
	Minimum Pressure Measurement 25mbar
	Accuracy ±0.005 %
	Pressure Port Type Gauge
	Model Number DPI 620
	Data Logging Yes
	Intrinsically Safe No
	Current Loop Measurement Yes
	Display Type LCD
	Power Source Rechargeable lithium Battery
	Minimum Operating Temperature -10°C
	Weight 575g
	Maximum Operating Temperature 50°C
	Height 42mm
	Length 183mm
	Width 114mm
	Standards/Approvals BS EN 610101:2010, BS EN 613261:2006, CE
	Hazardous Area Certification No
	Plug Type USB

COO (Country of Origin):: GB

Druck Pressure Calibrator Calibration Kit, 7 bar Maximum Pressure, ±0.005% Accuracy - DPI620PC-7barg

This pressure calibrator calibration kit provides portable field measurement and verification of gauge pressure and current loop signals. It is designed for on-site calibration tasks across typical industrial environments, offering data logging and an LCD for readout while operating from a rechargeable lithium battery.

Features and Benefits:

• ±0.005% accuracy for precise calibration results
• 25 mbar minimum pressure for low-pressure checks
• 7 bar maximum pressure enabling wider-range testing
• Data logging for recordable measurement traces
• Current loop measurement for transmitter verification

Applications

• Used for commissioning gauge pressure transmitters
• Suitable for maintenance of industrial control loops
• Ideal for on-site pressure validation and diagnostics
• Can be used for periodic calibration in workshops
• Used with handheld test routines requiring logged data

What temperature range can it operate within?

It functions between -10°C and 50°C allowing use in varied ambient conditions.

How is the device powered and recharged?

It runs from an internal rechargeable lithium‑polymer battery and charges via USB.

What certifications support its use in industry?

It complies with BS EN 61010-1:2010, BS EN 61326-1:2006 and carries CE marking.

What physical form factor and display does it offer?

It presents readings on an LCD and has overall dimensions of 183 mm by 114 mm by 42 mm.

How portable is the unit in terms of weight?

The instrument mass is 575 g facilitating handheld operation.

Note

Include DPI6020G-L unit in pack only, without HART.
