STMicroelectronics 1 kW bridgeless CCM-PFC pre-regulator based on L4986A PFC Controller for L4986A for L4986A

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩481,919.20

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 3월 03일 부터 3 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 1₩481,919.20
2 - 2₩472,293.60
3 +₩462,856.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
250-0199
제조사 부품 번호:
EVL4986A-1KWBL
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

Demo Board

Power Management Function

PFC Controller

For Use With

L4986A

Kit Classification

Demonstration Board

Featured Device

L4986A

Kit Name

1 kW bridgeless CCM-PFC pre-regulator based on L4986A

Standards/Approvals

Class-A, EN55022 Class-B, JEITA-MITI, EN62368, EN61000-3-2 Class-A

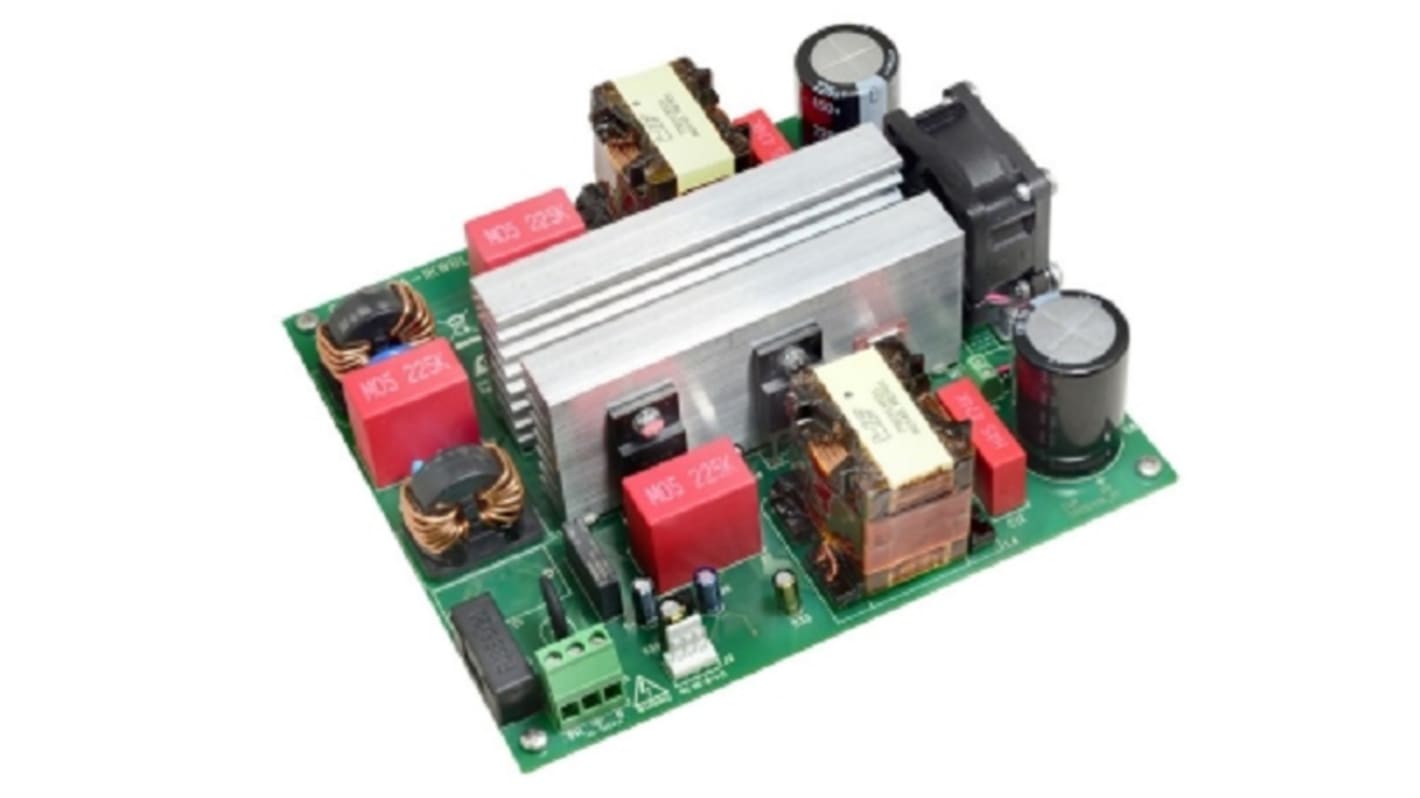

The STMicroelectronics demonstration board, which is a bridgeless PFC pre regulator, double boost topology based on the new L4986A peak current mode CCM power factor controller. It is intended as a front end converter up to 1 kW. The demo is designed on the double boost topology using two branches, each consisting of a boost stage, managing half mains cycle. Each section operates at almost fixed frequency. Thanks to the bridgeless approach and the L4986A control IC, this board offers high efficiency and low input current THD across the entire input voltage range. This is achieved using a low complexity schematic and fewer components compared to similar bridgeless solutions.

Input mains range is 90 to 265 Vac and frequency 45 to 65 Hz

No load mains consumption: below 250 mW at 230 Vac

Mains harmonics in compliance with EN61000-3-2 Class-A and JEITA-MITI,

Class-A

EMI in accordance with EN55022 Class-B

Safety in accordance with EN62368
