STMicroelectronics 2 kW Two-Channel Interleaved PFC Reference Design Based on the STNRGPF12 Digital Controller PFC

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩920,034.40

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩920,034.40
5 +₩901,648.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
193-1110
제조사 부품 번호:
STEVAL-IPFC12V1
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Power Management Function

PFC Controller

For Use With

Digital Inrush Current Control

Kit Classification

Development Board

Featured Device

STNRGPF12

Kit Name

2 kW Two-Channel Interleaved PFC Reference Design Based on the STNRGPF12 Digital Controller

COO (Country of Origin):
IT

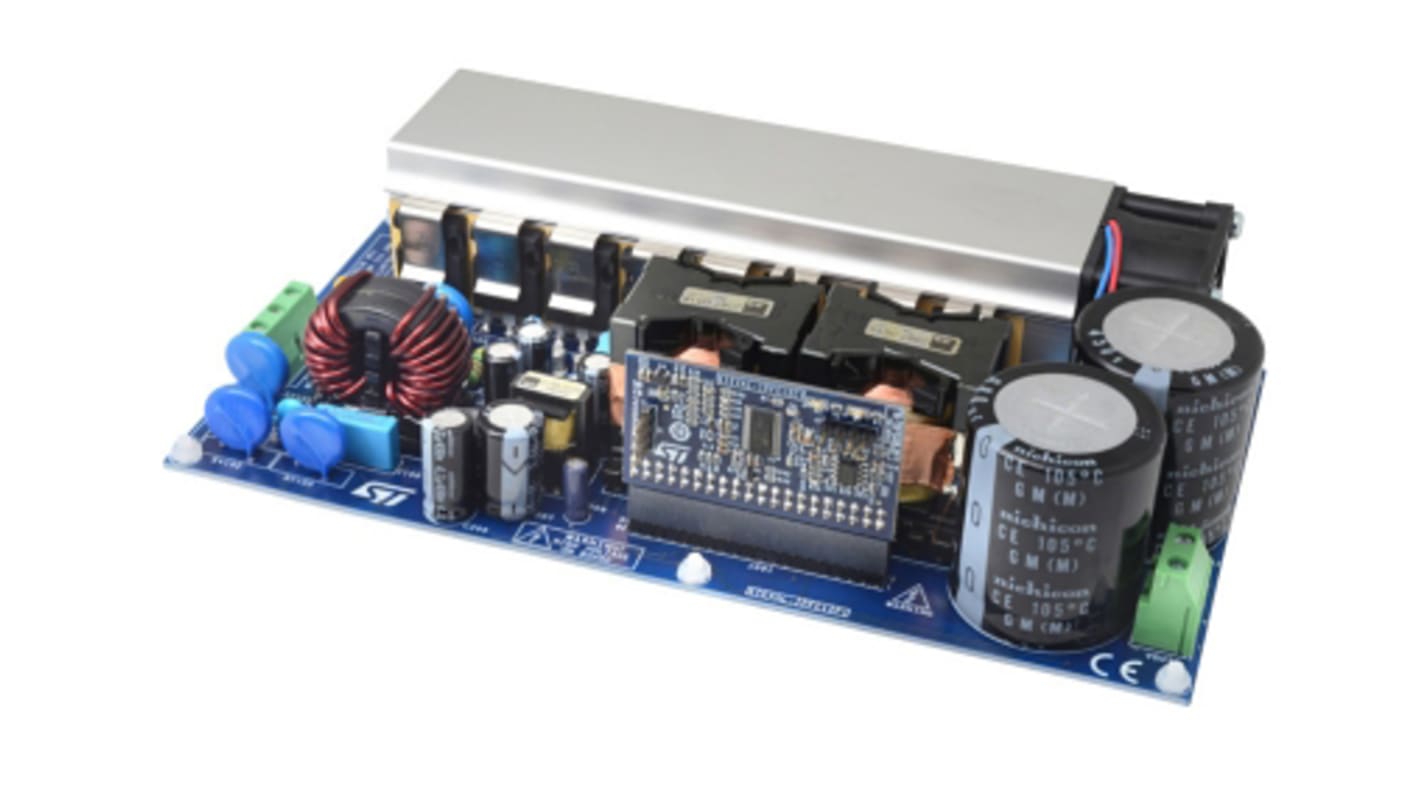

The STEVAL-IPFC12V1 2 kW interleaved PFC reference design features the performance of analog cycle-by-cycle current regulation and the flexibility of digital control to generate sinusoidal supplies with very high power factor and very low harmonic distortion.

Digital power control is based on the STNRGPF12 digital PFC controller, which in combination with the TN3050H-12WY thyristor implements digital inrush current limitation, and can drive up to two interleaved PFC channels using mixed signal (analog and digital) average current mode control in CCM at fixed frequency.

The 2 kW interleaved PFC reference design consists of a power board with 2-ch interleaved CCM boost power stage, input rectifier controlled bridge and auxiliary power supply, a control board with embedded STNRGPF12 digital controller and analog control circuitry, and a USB to UART (FTDI cable required - not included in the kit) bridge for programming the STNRGPF12 and performance monitoring.
