STMicroelectronics 5 V / 1.2 A Non-Isolated Flyback Converter using VIPerPlus VIPer114LS Flyback Converter for

본 제품군 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
182-7779
제조사 부품 번호:
STEVAL-ISA196V1
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Power Management Function

Flyback Converter

Product Type

Power Management Development Kit

Kit Classification

Evaluation Board

Featured Device

VIPerPlus, VIPer114LS

Kit Name

5 V / 1.2 A Non-Isolated Flyback Converter using VIPerPlus VIPer114LS

Standards/Approvals

No

COO (Country of Origin):
IT
STMicroelectronics provides turnkey solutions that address the growing demand for innovation to reach higher efficiency, higher power density and lower standby power designs. This is achieved through a wide range of power discrete components, analog ICs and digital processors.

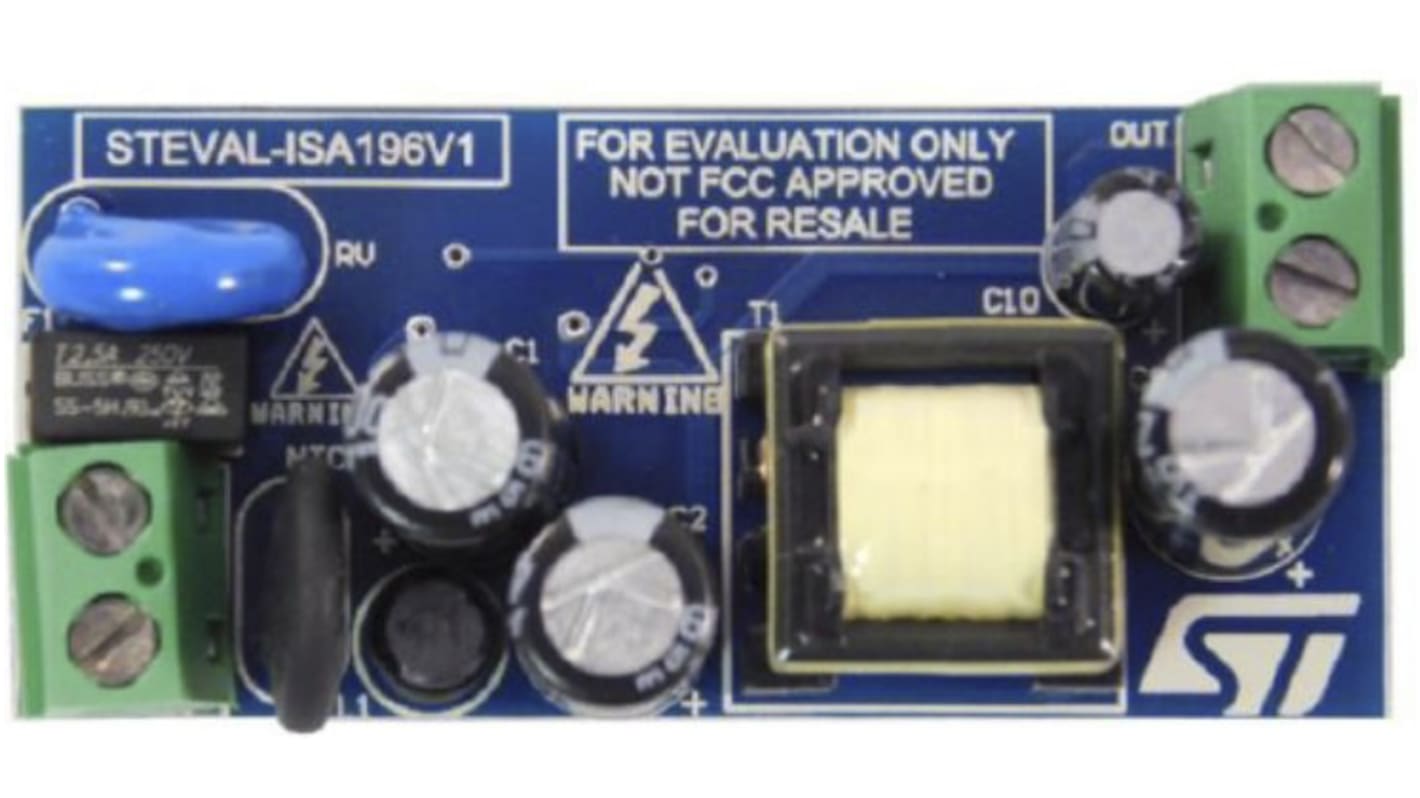

The STEVAL-ISA196V1 evaluation board implements a flyback converter (5 V / 1.2 A) wide range mains developed for general purpose applications. The core of the application is the VIPer11, a new off-line high voltage converter from the VIPerPlus family. The device is a high-voltage converter that intelligently integrates an 800 V rugged power MOSFET with PWM current-mode control. The main characteristics of the evaluation board are its single layer, small size and minimal BOM, high efficiency and low standby consumption.

Universal AC main input voltage range: 85VAC to 265VAC

Output voltage: 5 V

Output current: 1.2 A

Rated output power: 6 W

No load input power @230 VAC: < 10 mW

Active mode efficiency: > 78%
