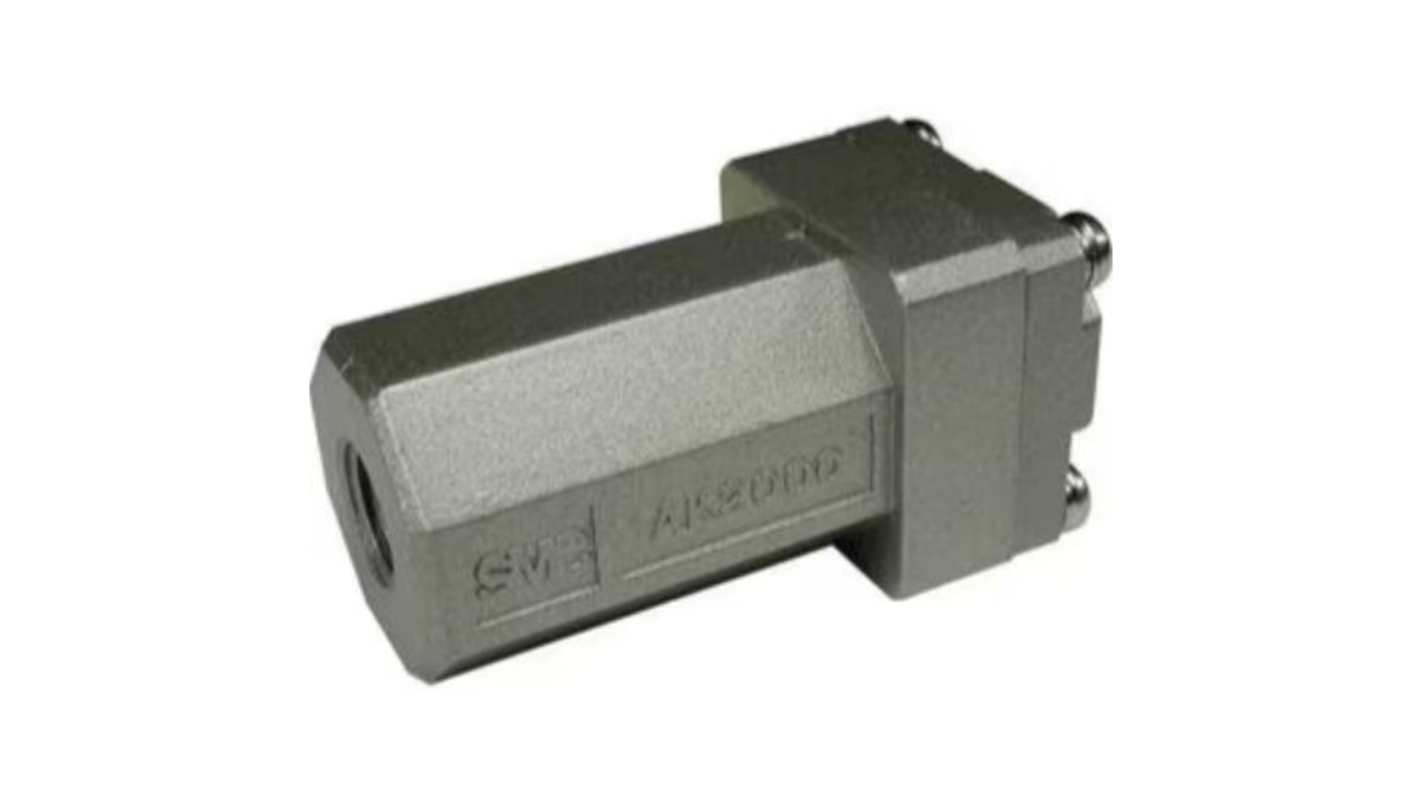

SMC AKP Check Valve, 1 Mpa Inlet Female Threaded Rc 1/4 in, Outlet Male Tube 1/4 in
- RS 제품 번호:
- 425-824
- 제조사 부품 번호:
- AKP-LA08E-G02
- 제조업체:
- SMC
Subtotal (1 unit)*
₩115,140.00
제조사가 재고 비축중
- 2026년 10월 05일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩115,140.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 425-824
- 제조사 부품 번호:
- AKP-LA08E-G02
- 제조업체:
- SMC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SMC | |
| Product Type | Check Valve | |
| Inlet Connection Type | Threaded | |
| Inlet Connection Size | 1/4 in | |
| Outlet Connection Type | Tube | |
| Outlet Connection Size | 1/4 in | |
| Series | AKP | |
| Inlet Thread Standard | Rc | |
| Cracking Pressure | 0.02MPa | |
| Minimum Operating Pressure | 0.02MPa | |
| Inlet Port Gender | Female | |
| Material | Die Cast Aluminium | |
| Outlet Port Gender | Male | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 4414, CE, UL, CSA, JIS B 8370, ISO 14001, ISO 9001 | |
| Maximum Operating Pressure | 1 Mpa | |
| 모두 선택 | ||
|---|---|---|
브랜드 SMC | ||
Product Type Check Valve | ||
Inlet Connection Type Threaded | ||
Inlet Connection Size 1/4 in | ||
Outlet Connection Type Tube | ||
Outlet Connection Size 1/4 in | ||
Series AKP | ||
Inlet Thread Standard Rc | ||
Cracking Pressure 0.02MPa | ||
Minimum Operating Pressure 0.02MPa | ||
Inlet Port Gender Female | ||
Material Die Cast Aluminium | ||
Outlet Port Gender Male | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 4414, CE, UL, CSA, JIS B 8370, ISO 14001, ISO 9001 | ||
Maximum Operating Pressure 1 Mpa | ||
- COO (Country of Origin):
- JP
The SMC check valve with one-touch fitting is a reliable solution designed to ensure smooth operation while preventing reverse flow in pneumatic systems. Crafted with precision, this valve accommodates various tubing options and configurations, making it a versatile choice for different applications. Its robust construction guarantees durability, while the ease of installation reduces downtime. Ideal for use in multiple environments, this valve supports a wide range of fluid temperatures and operating pressures, ensuring functionality across diverse conditions. The thoughtful engineering of this valve not only enhances the efficiency of your pneumatic systems but also contributes to the longevity of your equipment.
Designed for ease of installation with a one-touch fitting
Constructed to withstand a wide range of fluid temperatures
Prevents reverse flow, enhancing system reliability
Supports diverse tubing sizes for operational flexibility
Robust construction ensures durability in demanding environments
Suitable for various fluid applications, contributing to system versatility
