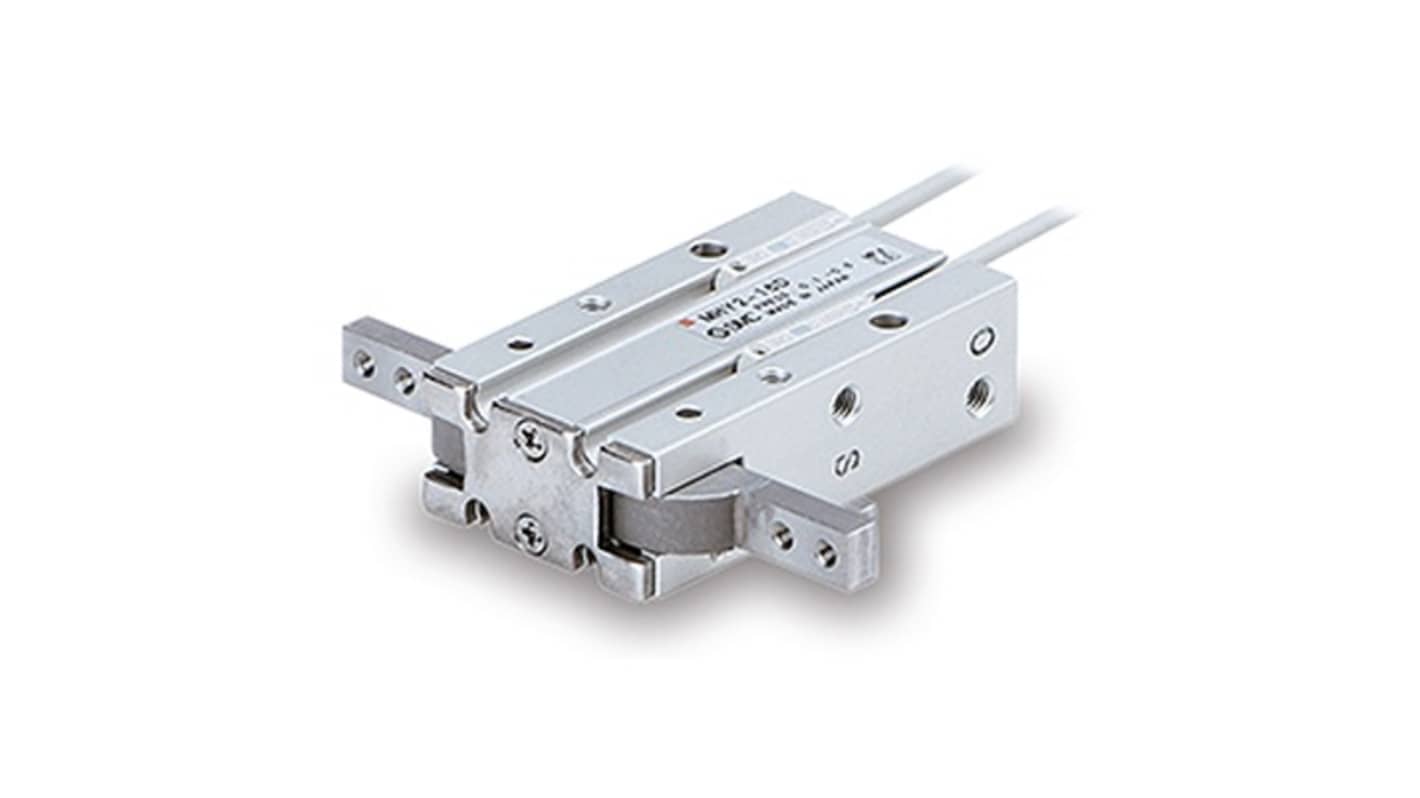

SMC 2 Finger Double Acting Action Pneumatic Gripper, MHY2-10D2, Angle Gripping Type

Subtotal (1 unit)*

₩580,200.00

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2026년 12월 07일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩580,200.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
393-203
제조사 부품 번호:
MHY2-10D2
제조업체:
SMC
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

SMC

Bore Diameter

10mm

Product Type

Pneumatic Gripper

Number of Fingers

2

Gripping Type

Angle

Action Type

Double Acting

Series

MHY2

Maximum Operating Pressure

7 bar

Weight

68g

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

60°C

Standards/Approvals

ISO 10218-1, ISO 4414, IEC 60204-1, RoHS, ISO 4413

Height

58mm

Length

15mm

Width

30mm

Maximum Operating Frequency

60cpm

COO (Country of Origin):
JP
The SMC Angular type air gripper actuator designed for precise handling in automation systems. It features a 180° angular opening and a rack-and-pinion mechanism for smooth operation.

Compact design

Dustproof construction

Versatile mounting
