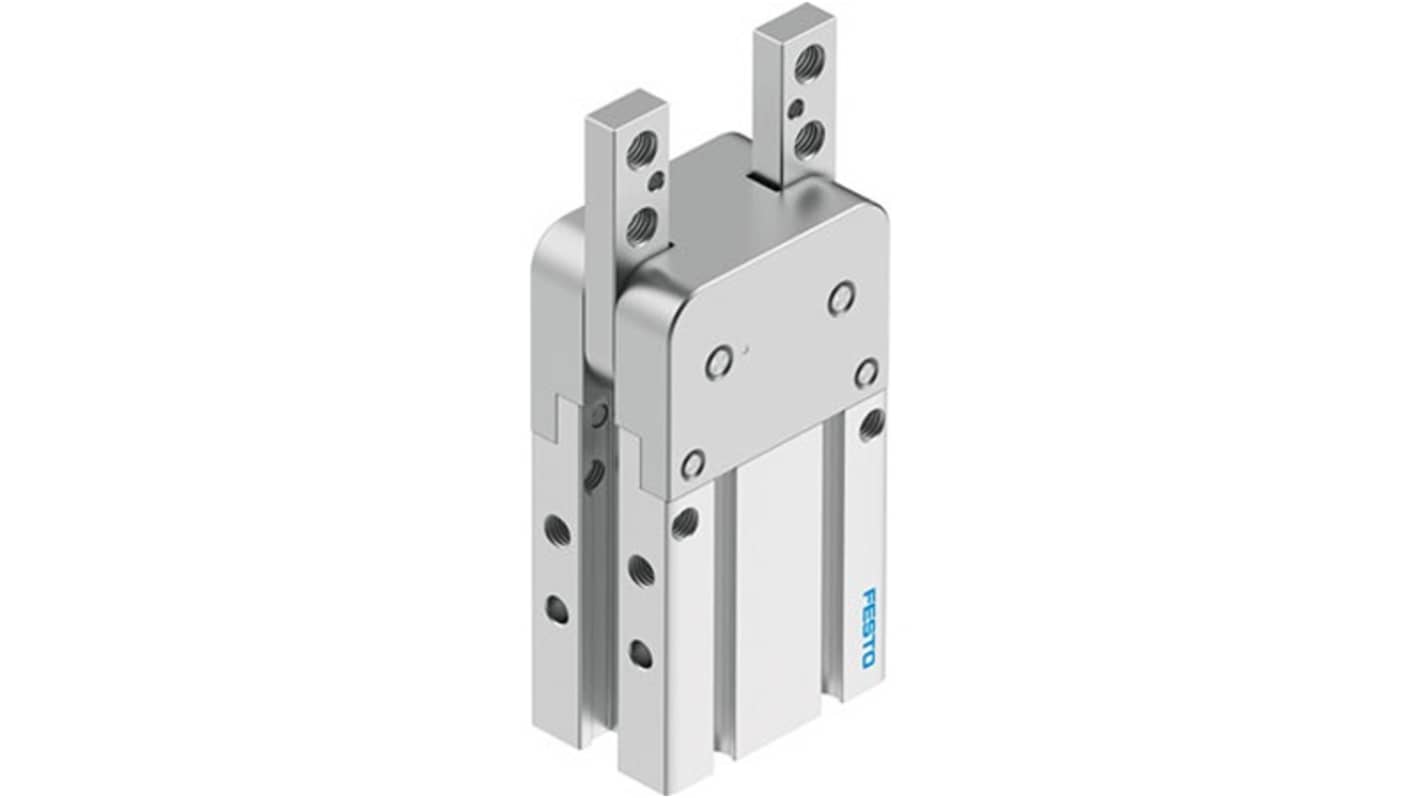

Festo 2 Finger Double Acting Action Pneumatic Gripper, DHWC-16-A, Angle Gripping Type
- RS 제품 번호:
- 341-757
- 제조사 부품 번호:
- DHWC-16-A
- 제조업체:
- Festo
Subtotal (1 unit)*
₩751,500.00
제조사가 재고 비축중
- 2026년 11월 30일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩751,500.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 341-757
- 제조사 부품 번호:
- DHWC-16-A
- 제조업체:
- Festo
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Festo | |
| Number of Fingers | 2 | |
| Product Type | Pneumatic Gripper | |
| Bore Diameter | 16mm | |
| Gripping Type | Angle | |
| Action Type | Double Acting | |
| Series | DHWC-16-A | |
| Maximum Operating Pressure | 8 bar | |
| Weight | 97g | |
| Minimum Operating Temperature | -10°C | |
| Gripping Force - External | 40N | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Maximum Operating Frequency | 2Hz | |
| Model Number | 8128711 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Festo | ||
Number of Fingers 2 | ||
Product Type Pneumatic Gripper | ||
Bore Diameter 16mm | ||
Gripping Type Angle | ||
Action Type Double Acting | ||
Series DHWC-16-A | ||
Maximum Operating Pressure 8 bar | ||
Weight 97g | ||
Minimum Operating Temperature -10°C | ||
Gripping Force - External 40N | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Maximum Operating Frequency 2Hz | ||
Model Number 8128711 | ||
- COO (Country of Origin):
- CN
The Festo Angle gripper excels in precision handling, making it an ideal solution for a variety of automation tasks. Designed with a double-acting mechanism, it ensures swift and efficient gripping, thereby enhancing productivity. The robust construction incorporates high-alloy steel jaws, ensuring durability and reliability in diverse environments. Operating at a pressure range of 0.1 to 0.8 MPa, this gripper provides exceptional control over movement and positioning. Its unique feature of rotational symmetry aids in meeting precise application requirements, while the versatile mounting options offer excellent adaptability to various setups. With compliance to RoHS and strict quality standards, it's a trustworthy addition to any industrial operation, ensuring maximum efficiency and minimal downtime.
Double-acting mechanism enables faster operation
Rotationally symmetrical design allows for more accurate adjustments
High-alloy steel jaws provide exceptional durability
Compatible with various pneumatic systems for flexibility
Mounting position can be tailored to specific application needs
Proximity switch integration facilitates efficient position detection
