대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩21,680.00
재고있음
- 추가로 2026년 8월 24일 부터 79 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩21,680.00 |
| 6 - 24 | ₩20,800.00 |
| 25 + | ₩20,260.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다

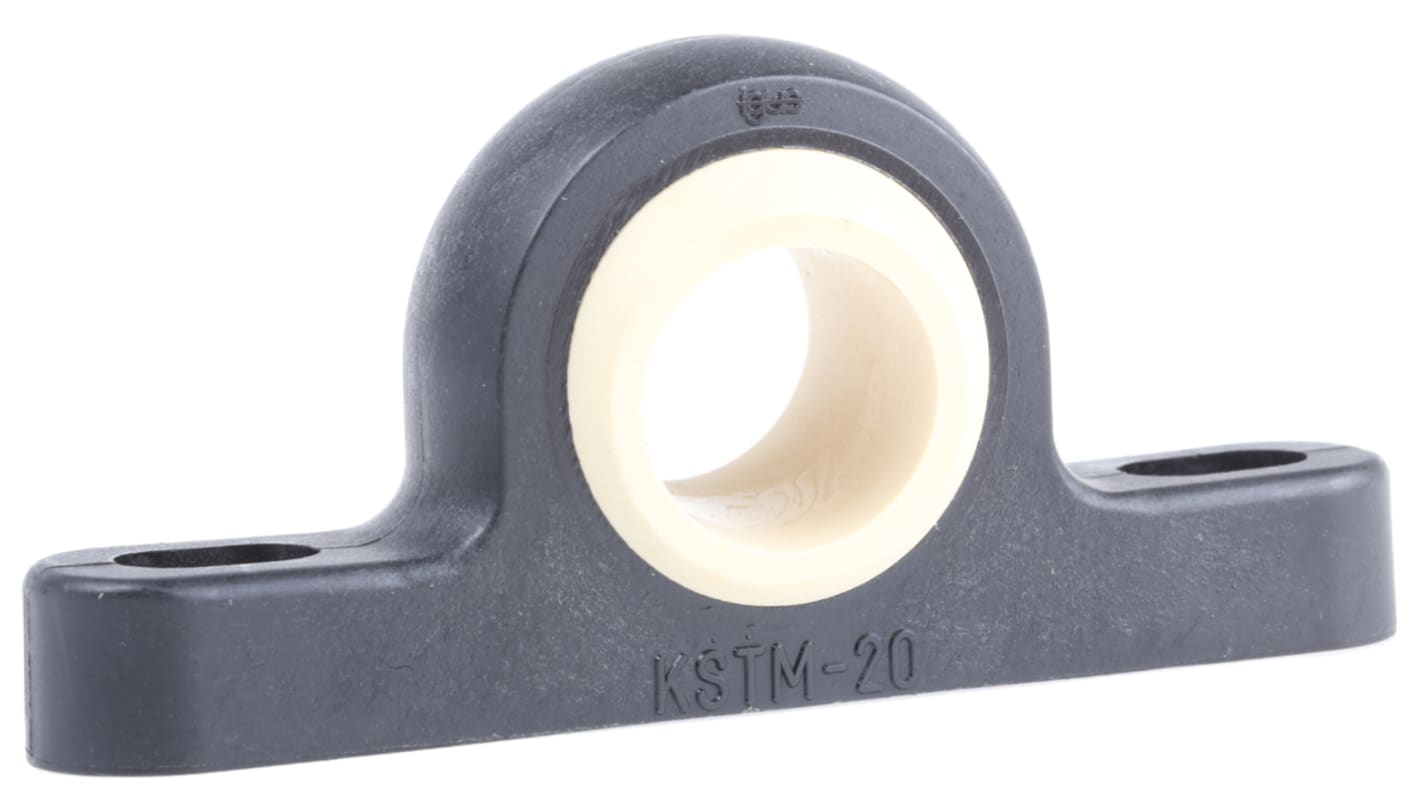

- RS 제품 번호:
- 311-2689
- 제조사 부품 번호:
- KSTM-20
- 제조업체:
- Igus
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Igus | |
| Inside Diameter | 8mm | |
| Product Type | Pillow Block Bearing | |
| Material | Igumid G | |
| Centre Height | 22mm | |
| Mount Hole Size | 9 x 14 mm | |
| Length | 98mm | |
| Depth | 25mm | |
| Mount Hole Centre-to-Centre | 68mm | |
| Number of Bolts | 2 | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Igus | ||
Inside Diameter 8mm | ||
Product Type Pillow Block Bearing | ||
Material Igumid G | ||
Centre Height 22mm | ||
Mount Hole Size 9 x 14 mm | ||
Length 98mm | ||
Depth 25mm | ||
Mount Hole Centre-to-Centre 68mm | ||
Number of Bolts 2 | ||
Standards/Approvals No | ||
제외
- COO (Country of Origin):
- DE
IGUS® Maintenance Free Pedestal Bearings
Easy to install pedestal bearings compensate for alignment errors and avoid edge pressures. The housings are manufactured from an impact resistant, rigid, thermoplastic composite material.
High sliding speeds of up to 1.5m/s for rotary movements and 8m/s for linear movements can be supported
Flange Units & Pedestal / Pillow Blocks
IGUBAL® pillow block bearings are self-lubricating and require no maintenance. Designed to run dry major advantages include the bearings are extremely tolerant to dirt and dust, meaning that IGUBAL® can be used in abrasive environments.
Low weight (20% of equivalent steel)
High rigidity
Maintenance free-dry running
Corrosion and chemically resistant
High fatigue strength under changing loads
Working temperature range: -30 to +80°C
Note
IGUBAL® bearings are designed to run with a clearance between the shaft and the inside diameter of the ball, to prevent the ball turning in the housing.
