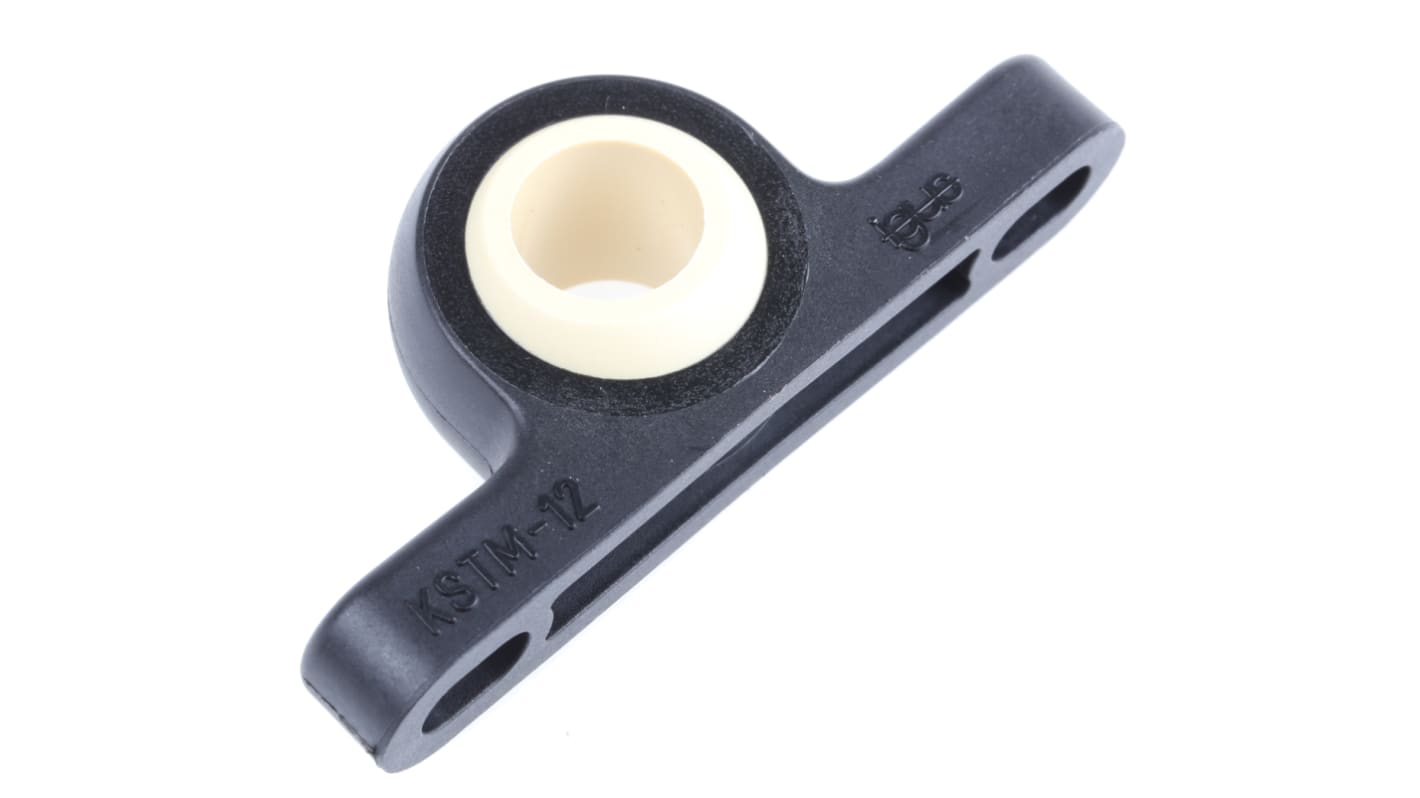

Igus KSTM-12 Pillow Block Bearing -, 12mm ID
- RS 제품 번호:
- 311-2667
- 제조사 부품 번호:
- KSTM-12
- 제조업체:
- Igus
현재 시스템 에러로 재고 수량 확인이 불가합니다. krenquiry@rs-components.com 에 문의하시거나 잠시후에 다시 시도해주시기 바랍니다.
추가완료!
단가 개당
₩13,888.895
| 수량 | 한팩당 |
| 1 - 5 | ₩13,888.895 |
| 6 - 24 | ₩13,381.774 |
| 25 + | ₩12,979.873 |
- RS 제품 번호:
- 311-2667
- 제조사 부품 번호:
- KSTM-12
- 제조업체:
- Igus
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- DE
제품 세부 사항
IGUS® Maintenance Free Pedestal Bearings
Easy to install pedestal bearings compensate for alignment errors and avoid edge pressures. The housings are manufactured from an impact resistant, rigid, thermoplastic composite material.
High sliding speeds of up to 1.5m/s for rotary movements and 8m/s for linear movements can be supported
Note
IGUBAL® bearings are designed to run with a clearance between the shaft and the inside diameter of the ball, to prevent the ball turning in the housing.
Flange Units & Pedestal / Pillow Blocks
IGUBAL® pillow block bearings are self-lubricating and require no maintenance. Designed to run dry major advantages include the bearings are extremely tolerant to dirt and dust, meaning that IGUBAL® can be used in abrasive environments.
Low weight (20% of equivalent steel)
High rigidity
Maintenance free-dry running
Corrosion and chemically resistant
High fatigue strength under changing loads
Working temperature range: -30 to +80°C
High rigidity
Maintenance free-dry running
Corrosion and chemically resistant
High fatigue strength under changing loads
Working temperature range: -30 to +80°C
사양
속성 | 값 |
|---|---|
| Inside Diameter | 12mm |
| Bearing Unit Type | Pillow Block |
| Material | Iglide L280, Igumid G |
| Centre Height | 14mm |
| Mount Hole Size | 5.5 x 9 mm |
| Length | 65mm |
| Depth | 16mm |
| Overall Height | 28mm |
| Mount Hole Centre-to-Centre | 46mm |
